Product Overview: Bently Nevada 3300 NSv Probe with Armor

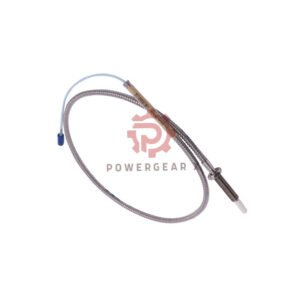

This is the 330910-16-23-10-02-00 proximity probe. It is a new, original Bently Nevada sensor. The unit comes in factory packing. It includes a full 12-month factory warranty. This M10-threaded probe has a sturdy stainless steel armor jacket. It offers excellent protection in harsh industrial environments.

Use this probe for precise vibration and position measurement. It is perfect for turbines, compressors, and large pumps. The design improves chemical resistance over older models. It ensures reliable performance in tough conditions.

Key Specifications & Data

• Complete Part Number: 330910-16-23-10-02-00
• Brand & Series: Bently Nevada 3300 NSv Proximity Probe
• Thread Type: M10 x 1.0 metric with full armor protection.
• Cable Length: 1.0 meter (39 inches) total.
• Connector: Miniature coaxial ClickLoc type.
• Linear Measuring Range: 0.25 mm to 1.75 mm.
• Best Gap Setting: 1.00 mm (40 mils) from target.
• Output Sensitivity: 7.87 Volts per millimeter.
• System Linearity: Better than ±0.06 mm deviation.
• Frequency Range: Flat from 0 Hz up to 10,000 Hz.
• Probe Tip Material: Tough PPS plastic for chemical resistance.
• Case Material: Durable AISI 304 Stainless Steel.
• Operating Temperature: -52°C to +177°C extreme range.
• Cable Bend Radius: Minimum 25.4 mm (1.0 inch).
• Probe DC Resistance: 4.2 Ohms ±0.5 Ohms for 1.0m version.

Installation & System Integration

• Mounting: Hand-tighten only. Maximum torque is 0.56 N•m.
• Wiring: Works with standard shielded triad cable up to 305 meters.
• Direct Upgrade: Fully compatible with older 3300 RAM system cabinets and cables.
• Target Size: Use on shafts larger than 13 mm for best accuracy.

Packaging, Warranty & Fast Shipping

• Condition: 100% new and original. Delivered in factory-sealed packaging.
• Warranty: Full 12-month manufacturer warranty for peace of mind.
• Global Delivery: We ship worldwide using FedEx, UPS, and DHL express services.

Expert FAQ & Buying Guide

Technical Questions

• Why does this probe have an armor jacket?
• The stainless steel armor protects the cable from cuts, abrasion, and crush damage. It is essential in areas with moving parts or heavy machinery.

• What is the difference between M10 and 3/8-24 thread?
• M10 is a metric thread common in European and global machinery. 3/8-24 is a unified thread. Choose based on your existing mounting hole.

Application & Selection

• Can I use this for high-speed machinery?
• Yes. The 0-10 kHz response captures vibration data on very fast rotors, like in gas turbines or high-speed compressors.

• How do I know if I need a 0.5m or 1.0m cable probe?
• Measure the distance from the probe tip to your junction box. Select the cable length that reaches without a tight pull. You can always add an extension cable.

Ordering & Support

• What is included in the 12-month warranty?
• The warranty covers defects in materials and workmanship. If your 330910-16-23-10-02-00 probe fails under normal use, we will replace or repair it.

• How do I place an order or get a quote?
• Contact our sales team. We accept purchase orders. We ship fast via FedEx, UPS, or DHL. Email or message us on WhatsApp for quick service.

Ready to order or need help? Contact our automation specialists today.
