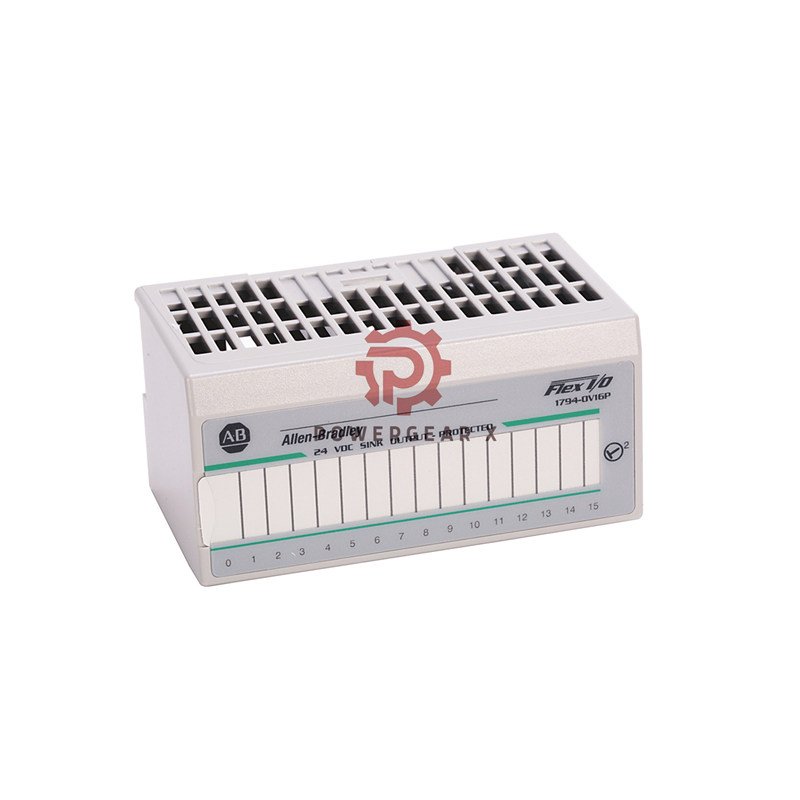

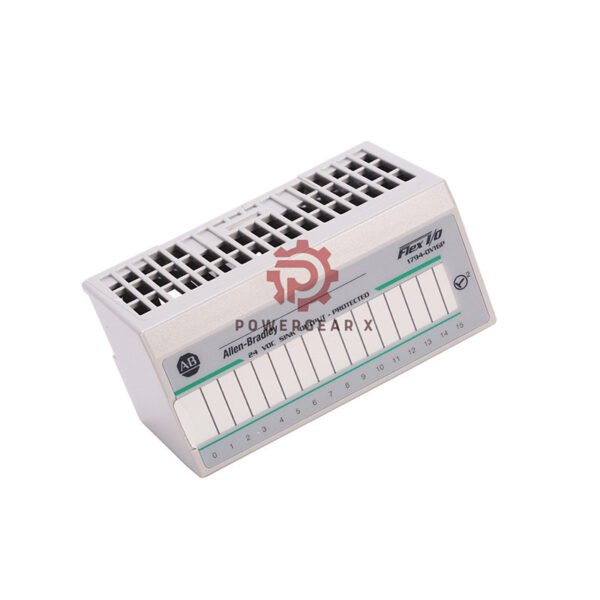

Allen-Bradley 1794-OV16P: Reliable Sinking Output Module
This Allen-Bradley 1794-OV16P module gives you 16 protected sinking outputs. It works with 24V DC systems and handles high current loads. The module fits into tight spaces and connects easily to field devices.
Main Features & Benefits
- 16 sinking outputs with short-circuit and overload protection
- Automatic recovery after a fault is cleared—no processor reset needed
- High output current: 500mA per channel, 8A per module total
- Wide operating voltage: 10 – 31.2V DC
- Bright LED indicators for every output channel
- Supports hot swapping—remove and insert under power
- Works in extreme conditions with optional XT versions
- Connects with ControlNet, DeviceNet, EtherNet/IP, and Remote I/O
Detailed Technical Specifications
- Brand: Allen-Bradley | Rockwell Automation
- Model: 1794-OV16P
- Output Type: 16-point, sinking, electronically protected
- On-State Voltage: 24V DC nominal
- Voltage Range: 10 – 31.2V DC
- Max Output Current: 500mA per point / 8A per module
- Off-State Leakage Current: 0.5mA max
- On-State Voltage Drop: 0.2V DC max
- Switching Speed: Off to On ≤ 0.5ms / On to Off ≤ 1ms
- Power Dissipation: 4.2W max at 31.2V DC
- Compatible Bases: 1794-TB3, 1794-TB3S
- Bus Current: 80mA Flexbus
Packaging & Shipping
- Includes one 1794-OV16P module
- Product documentation included
- 12-month warranty coverage
- Fast global shipping via FedEx, UPS, DHL
