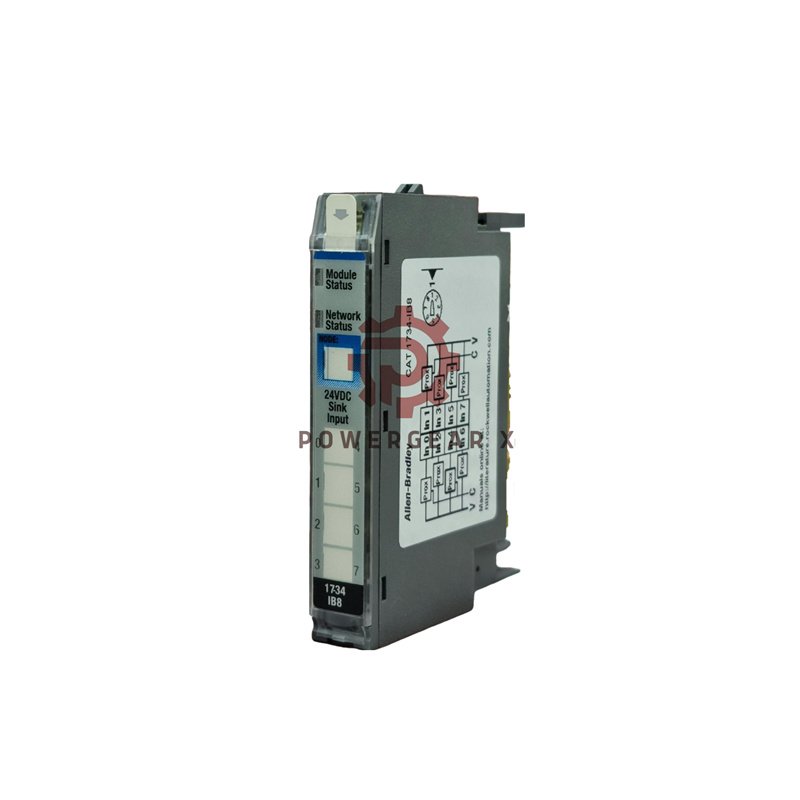

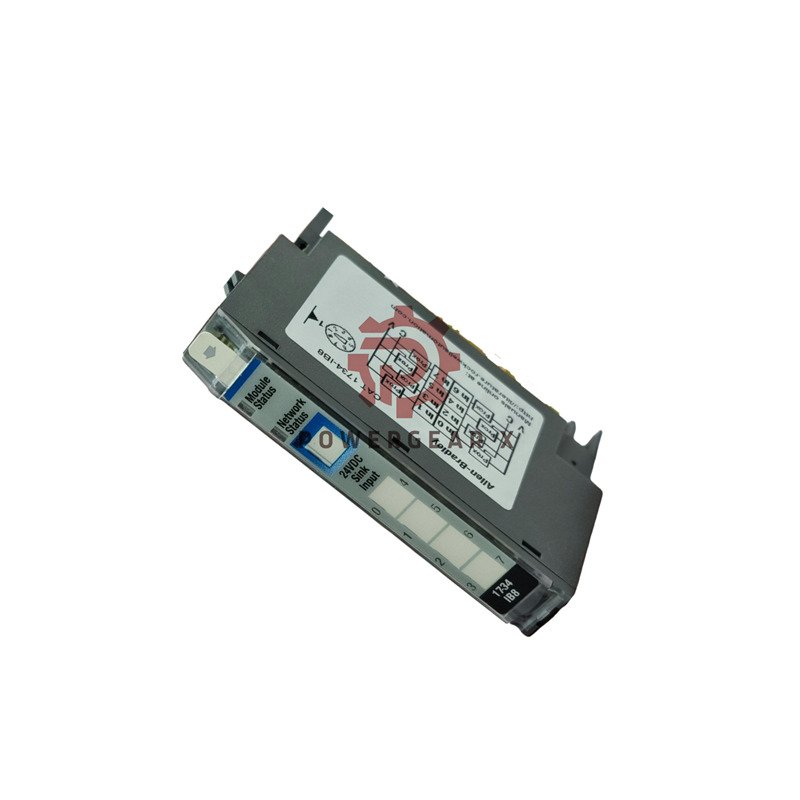

Allen-Bradley 1734-IB8 Digital DC Input Module

The 1734-IB8 provides eight sinking DC input channels for industrial automation systems. This compact module works with Allen-Bradley’s POINT I/O platform. It offers reliable performance in distributed control applications.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1734-IB8
• Input Channels: 8 sinking inputs
• Input Voltage: 24V DC (10-28.8V DC range)
• Input Current: 2-5 mA (4 mA nominal at 24V DC)
• Input Filter: 0.5 ms hardware + 0-63 ms software
• Power Consumption: 75 mA at 5V DC
• Isolation Voltage: 50V DC continuous
• Dielectric Test: 2500V DC for 60 seconds
• Dimensions: 56 x 12 x 75.5 mm
• Weight: 31.8 grams
• Operating Temperature: -20 to 55°C

Frequently Asked Questions

• How many input channels does this module provide?
  It offers eight separate 24V DC sinking input channels.
• What is the input voltage range?
  It accepts 10-28.8V DC input signals.
• Can I adjust the input response time?
  Yes, it features user-configurable filtering from 0-63 ms.
• What communication networks does it support?
  It works with all POINT I/O adapters including DeviceNet and ProfiBus.
• How do I monitor channel status?
  Each input has a dedicated yellow status indicator LED.
