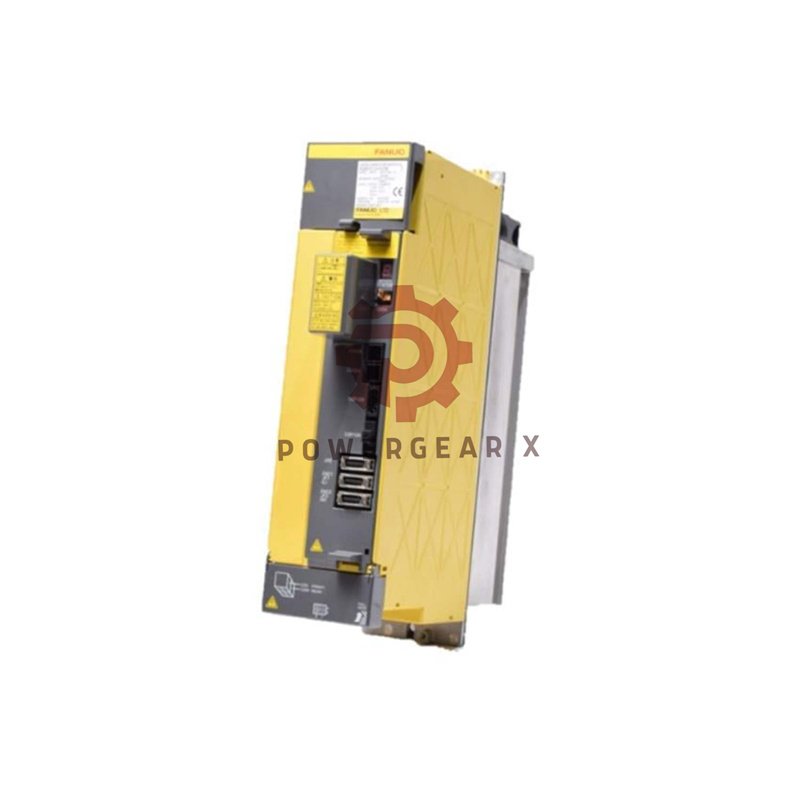

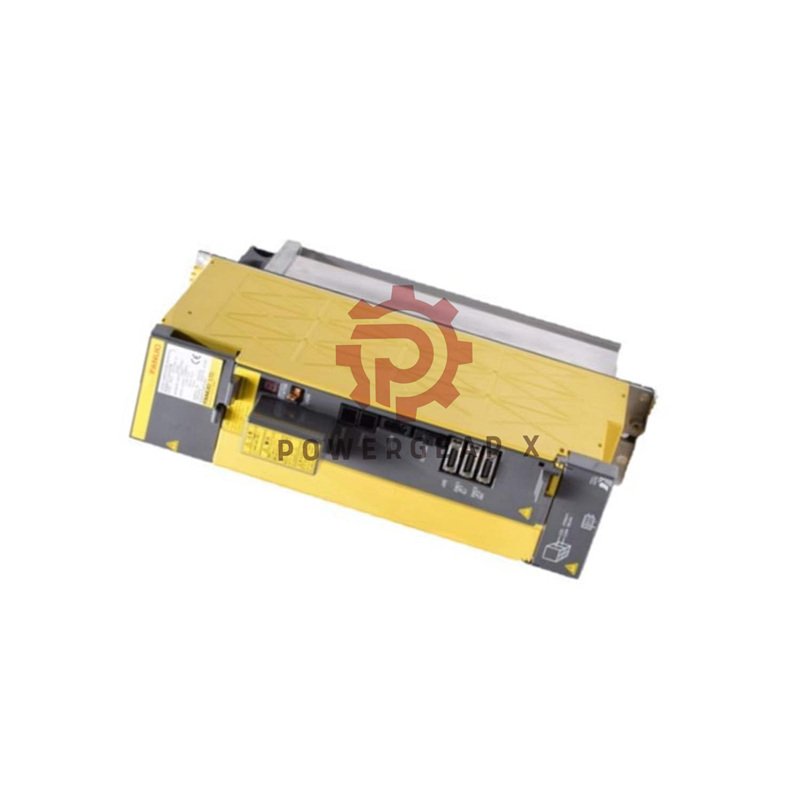

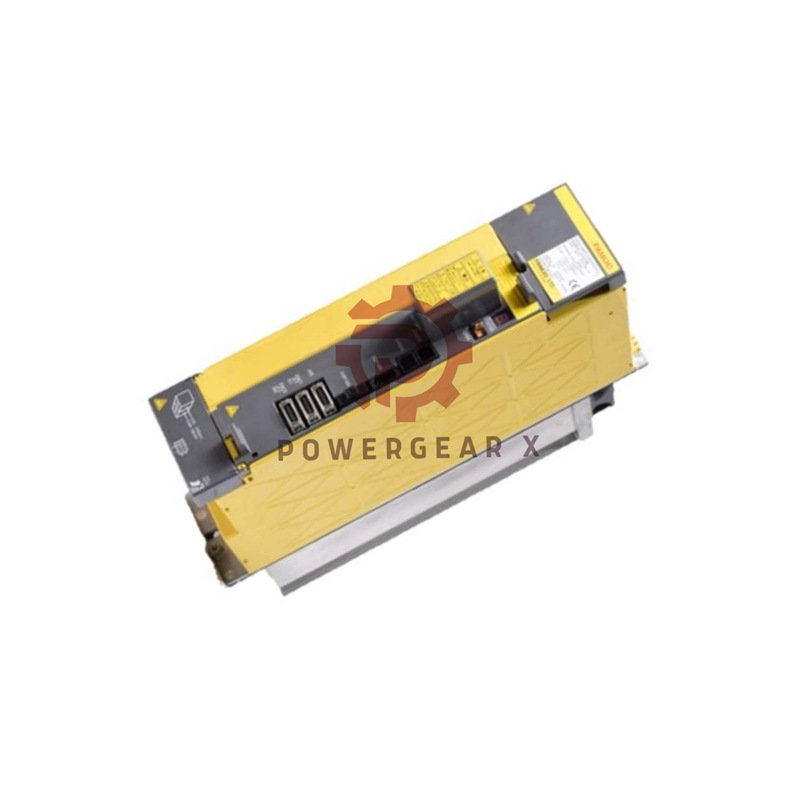

FANUC A06B-6124-H208 High-Power Servo Amplifier
Control your heavy-duty CNC machines with precision. The FANUC A06B-6124-H208 is a robust dual-axis servo amplifier. It handles high three-phase power for industrial automation. This unit is reliable, powerful, and built to last.
Core Advantages
- Manages two motor axes with one efficient module.
- Accepts high three-phase input (400-480VAC).
- High current output for demanding applications.
- Built to withstand tough factory conditions.
- Fast recovery from brief power interruptions.
Detailed Technical Data
- Manufacturer & Model: FANUC A06B-6124-H208
- Authorized Supplier: Powergear X Automation
- Product Type: Servo Amplifier Module
- Main Power Input: Three-Phase, 400-480 VAC
- Control Power Input: Single-Phase, 200-240 VAC
- Allowable Voltage Fluctuation: -15% to +10%
- Output Current (Axis1/Axis2): Rated 13A / 19A
- Peak Current Limit (Axis1/Axis2): 40A / 80A
- Output Power: Up to 45kW total
- Number of Axes: 2
- Power Frequency: 50/60 Hz ±1Hz
- Instantaneous Power Failure Tolerance: 3 milliseconds
- Cooling Method: Forced Air Cooling
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -20°C to 60°C
- Ambient Humidity: ≤90% RH (Non-condensing)
- Vibration Resistance: Below 0.5G
- Dimensions (Approx.): 350mm x 200mm x 85mm
- Weight: 18 lbs (8.16 kg)
- Protection Features: Overcurrent, Overvoltage, Overtemperature
- Communication Interface: FANUC Digital Servo Bus
- Mounting: Cabinet or Chassis Mount
- Safety Standards: CE, cULus listed
Reliable Support & Shipping
This product comes with a full 12-month warranty from Powergear X Automation. We ship globally using reliable carriers: FedEx, UPS, and DHL. Tracking information is provided for all orders.
Professional FAQ Section
What type of machines typically use this A06B-6124-H208 amplifier?
It is commonly found in large CNC machining centers, heavy-duty lathes, and gantry mills that require high power.
Can this drive operate on a standard 480V three-phase supply?
Yes, its design range of 400-480VAC makes it ideal for standard North American and European industrial 480V systems.
What is the most important factor during installation?
Ensuring proper grounding and using correctly sized power cables are critical for safety and performance.
How do I interpret the two different current ratings (13A/19A and 40A/80A)?
The lower values (13A, 19A) are the continuous rated currents. The higher values (40A, 80A) are the short-duration peak limits the drive can handle.
From a maintenance perspective, what is the first thing to check for an alarm?
First, check the cooling fans and air filters for blockage. Overheating is a common cause of faults in high-power drives.
Is parameter backup required before replacing this unit?
Absolutely. Always backup the servo parameters from the CNC system before swapping the amplifier to avoid lengthy reprogramming.
Can one axis be used if the other fails?
In most configurations, the drive must be fully operational. A failure in one channel typically requires repair or replacement of the entire unit.
What spare parts should I keep on hand for this model?
It is wise to keep spare cooling fans and the main power supply fuses specific to this model in your inventory.
