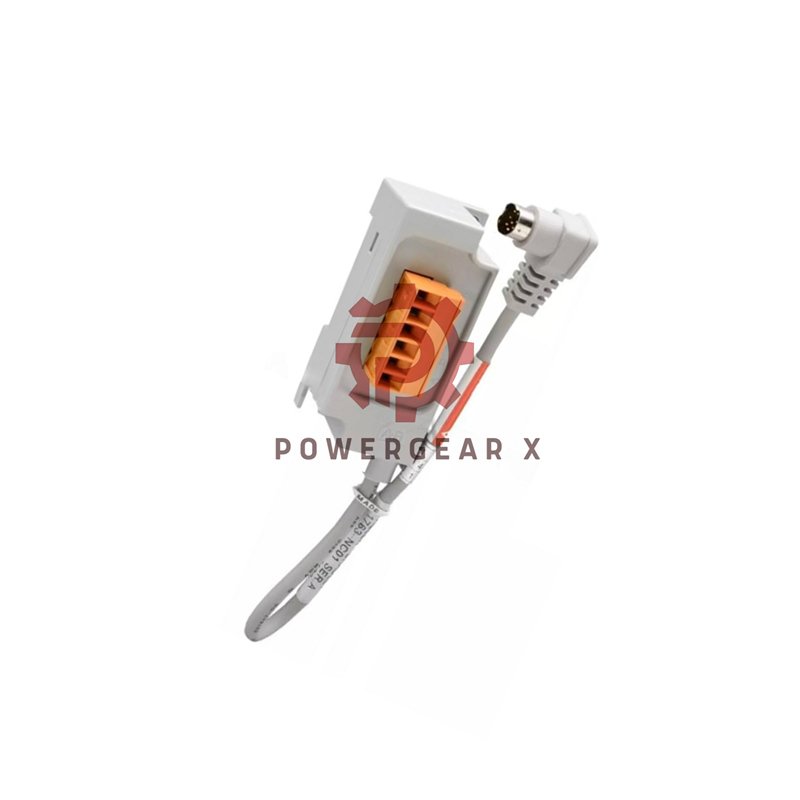

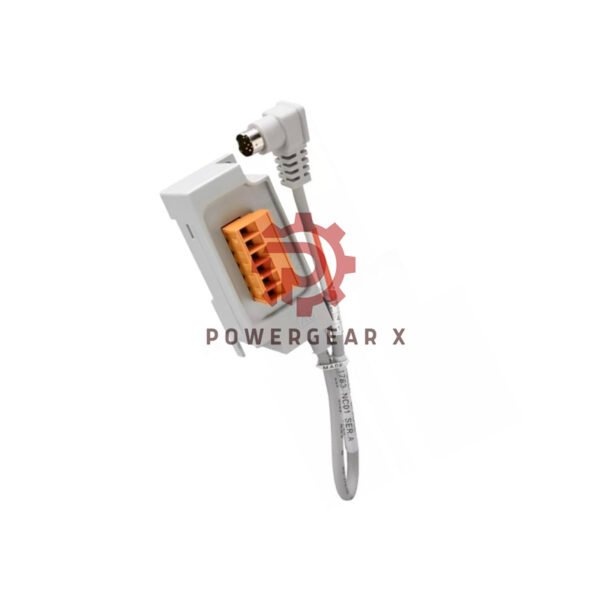

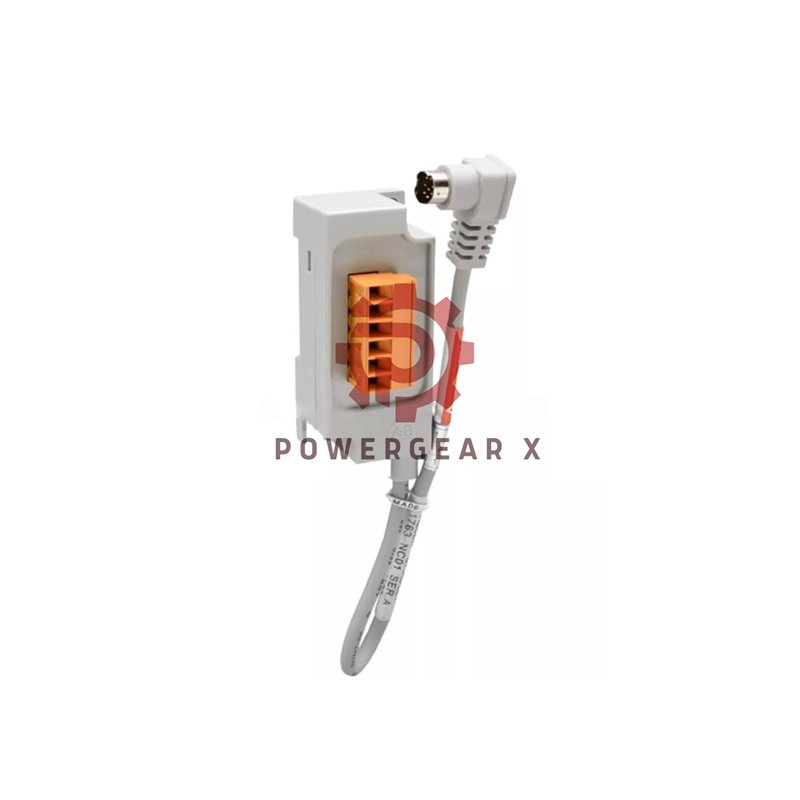

Allen-Bradley 1763-NC01: Premium Communication Cable
The 1763-NC01 connects your MicroLogix 1100 controller to RS-485 networks. This sturdy cable enables reliable data exchange in industrial environments. It works with multiple communication protocols for maximum flexibility.
Key Technical Specifications
- Cable Length: 30 centimeters (11.8 inches)
- Connector A: 8-pin Mini-DIN
- Connector B: 6-pin terminal block
- Compatibility: MicroLogix 1100 series
- Protocol Support: DH-485, Modbus RTU, DF1
- Rating: Class I Division 2 approved
- Interface: RS-485 network compatible
- Shielding: Enhanced EMI protection
Package Contents
- One Allen-Bradley 1763-NC01 communication cable
- Installation instructions sheet
Shipping & Support
- Fast delivery via FedEx, UPS, and DHL available
- Full 12-month warranty against defects
- Expert support for installation questions
Frequently Asked Questions
What controllers work with this cable?
- The cable works with all MicroLogix 1100 controllers. It connects to Channel 0 for RS-485 communication.
Can I use this cable for Modbus networks?
- Yes. The cable supports Modbus RTU master and slave networks. It works with many industrial devices.
Is this cable suitable for hazardous areas?
- Yes. It has Class I Division 2 certification. You can use it in many industrial environments safely.
What is the maximum network distance?
- RS-485 networks can reach 1200 meters. The actual distance depends on your network speed and devices.
Do I need special tools for installation?
- No. The terminal block connects with a standard screwdriver. The Mini-DIN connector plugs in easily.
