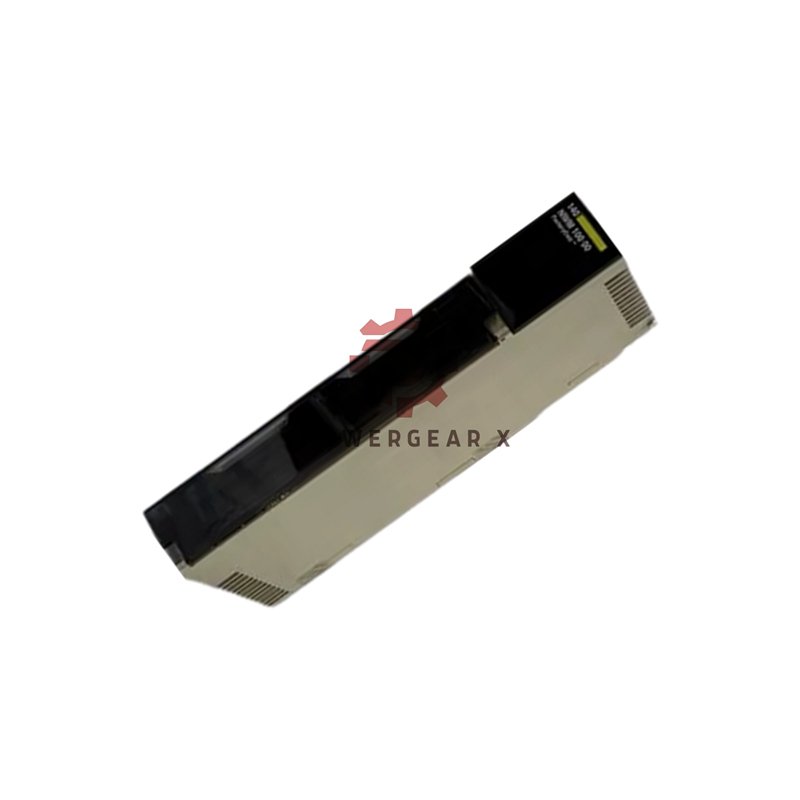

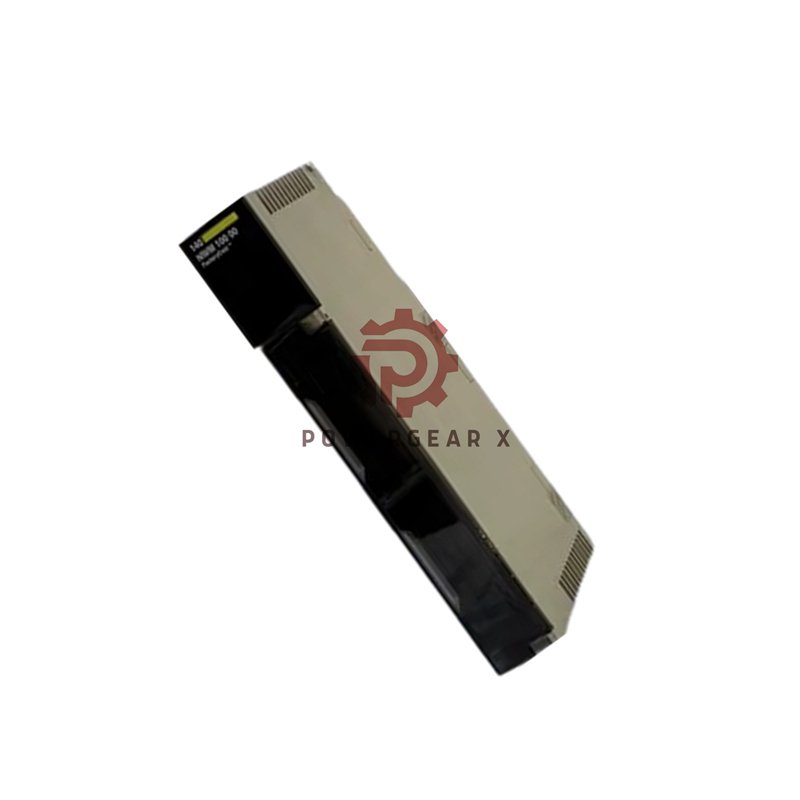

Schneider Electric 140NWM10000 Ethernet TCP/IP Module

The Schneider Electric 140NWM10000 delivers high-performance Ethernet connectivity for Modicon Quantum systems. This advanced module supports both copper and fiber optic networks with integrated web services.

Key Features

• • Dual Ethernet ports: RJ45 and MT/RJ fiber optic
• • 10/100 Mbps auto-negotiating speed
• • Built-in web server with FactoryCast HMI
• • Modbus TCP/IP and SNMP protocol support
• • Transparent Ready technology for easy integration
• • Rack viewer and data editor capabilities
• • 10 status LEDs for comprehensive diagnostics
• • Class D10 performance rating

Technical Specifications

• Brand: Schneider Electric
• Model: 140NWM10000
• Type: Ethernet TCP/IP Communication Module
• Ports: RJ45 (copper) + MT/RJ (fiber optic)
• Speed: 10/100 Mbps auto-negotiating
• Protocols: Modbus TCP/IP, SNMP, HTTP
• Current Draw: 750mA @ 5V DC
• Isolation: 1500Vrms typical
• Weight: 0.345 kg
• Certifications: cUL, UL 508, FM Class 1 Div 2
• Operating Temp: 0°C to 60°C
• Warranty: 12 months

Physical Interfaces

• RJ45 for 10BASE-T/100BASE-TX copper
• MT/RJ for 100BASE-FX fiber optic
• Auto-MDI/MDIX crossover detection
• Full-duplex operation support
• LED indicators for all port activities

Package & Shipping

• Contents: 1 Ethernet module
• Dimensions: 31.0 × 16.5 × 5.0 cm
• Weight: 614 grams
• Shipping: FedEx, UPS, DHL Express
• Origin: France (FR)
• Delivery: Worldwide express service

Frequently Asked Questions

• What Ethernet protocols are supported?
  Modbus TCP/IP, SNMP, and standard HTTP web services.
• Can I use both copper and fiber connections?
  Yes, the module has both RJ45 copper and MT/RJ fiber optic ports.
• What is FactoryCast HMI?
  It provides built-in web-based visualization without additional software.
• What network speeds are supported?
  10/100 Mbps auto-negotiating with full-duplex capability.
• Is this module hazardous location rated?
  Yes, FM Class 1 Division 2 certified for hazardous areas.
