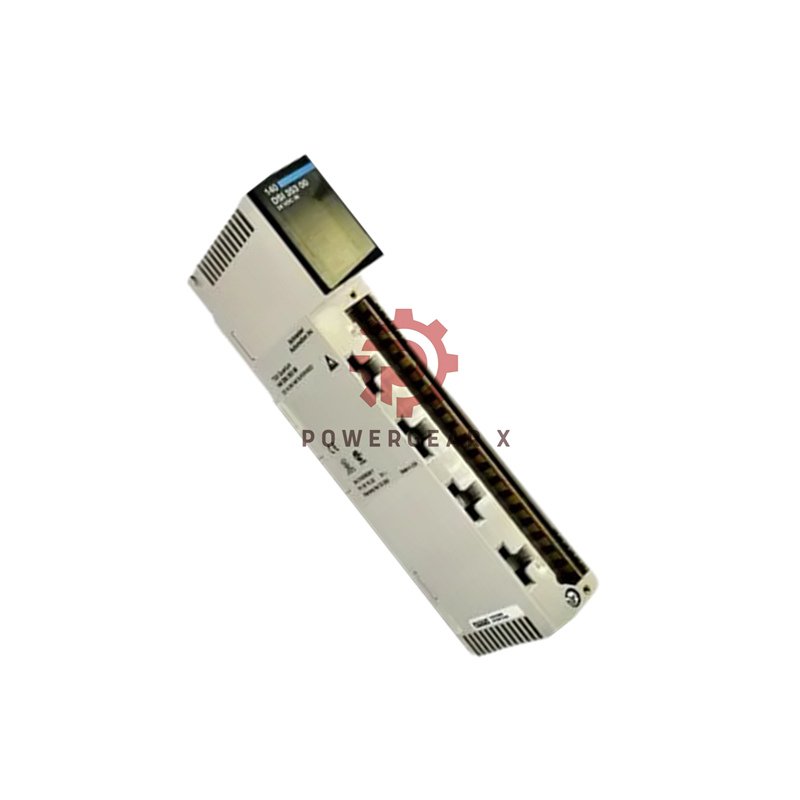

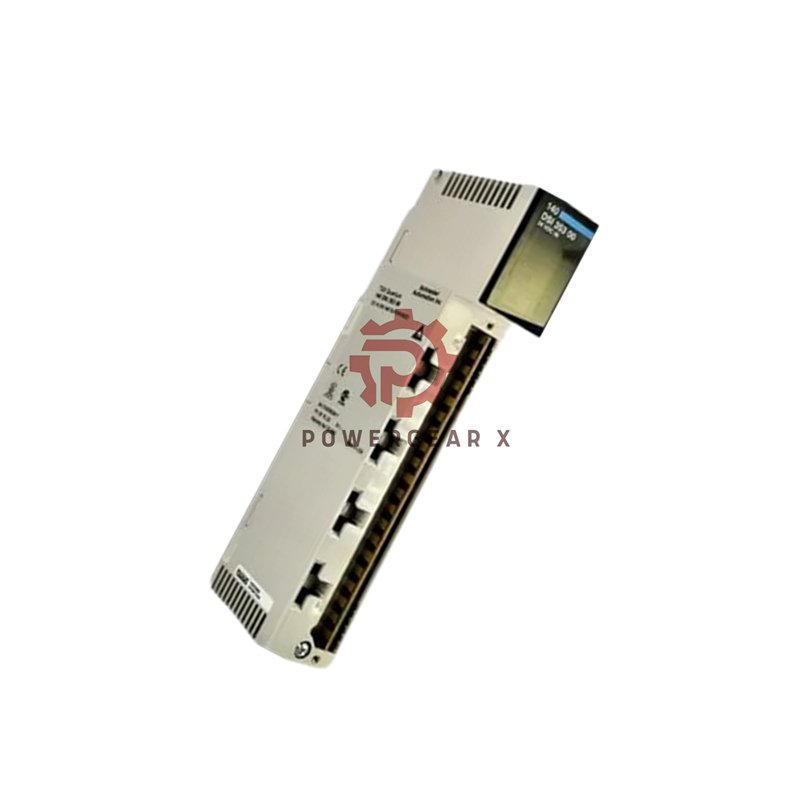

Schneider Electric 140DSI35300: 32-Point DC Input Module
The 140DSI35300 is a high-density input module for the Modicon Quantum platform. It reads 32 digital signals from sensors and switches. This module is perfect for large automation systems needing many inputs. It offers reliable performance and built-in diagnostics for easy maintenance.
Technical Specifications
- Brand & Model: Schneider Electric 140DSI35300
- Input Type: 32 points, 24V DC, Positive (Sink) Logic
- Voltage Range: 20 to 30V DC (Operational)
- ON Signal: >=11V DC, >=2.5 mA
- OFF Signal: <=5V DC, <=1.2 mA
- Response Time: 2.2 ms (OFF to ON), 3.3 ms (ON to OFF)
- Isolation: 1780 Vrms (group to bus), 500 Vrms (between groups)
- Bus Current: 250 mA
- Weight: 0.3 kg (0.7 lb)
Design & Protection
- Withstands voltage spikes up to 45V for 10 ms.
- High noise immunity for reliable operation in electrically noisy areas.
- ESD protection: 4 kV contact, 8 kV air discharge.
- Certifications: UL, CSA, FM Class 1 Div 2, ABS, C-Tick for global use.
What You Get & Support
- Includes one 140DSI35300 input module.
- Protected by a 12-month warranty.
- Fast worldwide shipping via FedEx, UPS, or DHL.
Frequently Asked Questions
- What does “sink” input mean?
It means the input point connects to ground (-) to activate it. - How is the module wired?
It has four groups. You can wire common power separately for each group. - Can it handle 12V or 120V signals?
No. It is designed only for standard 24V DC control signals. - How many words of input memory does it need?
It requires 4 input words in the PLC’s I/O configuration.
