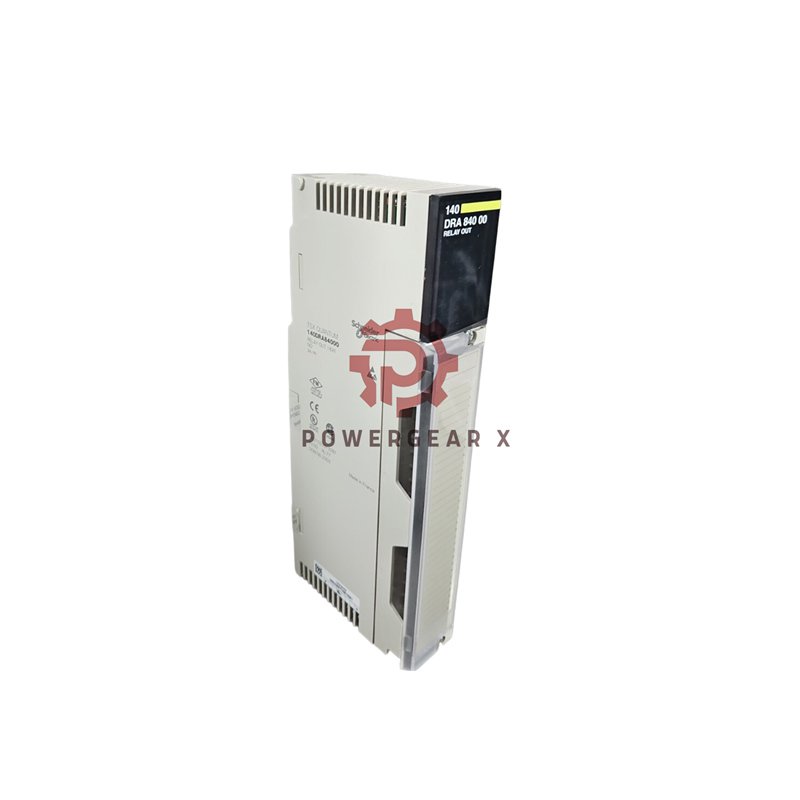

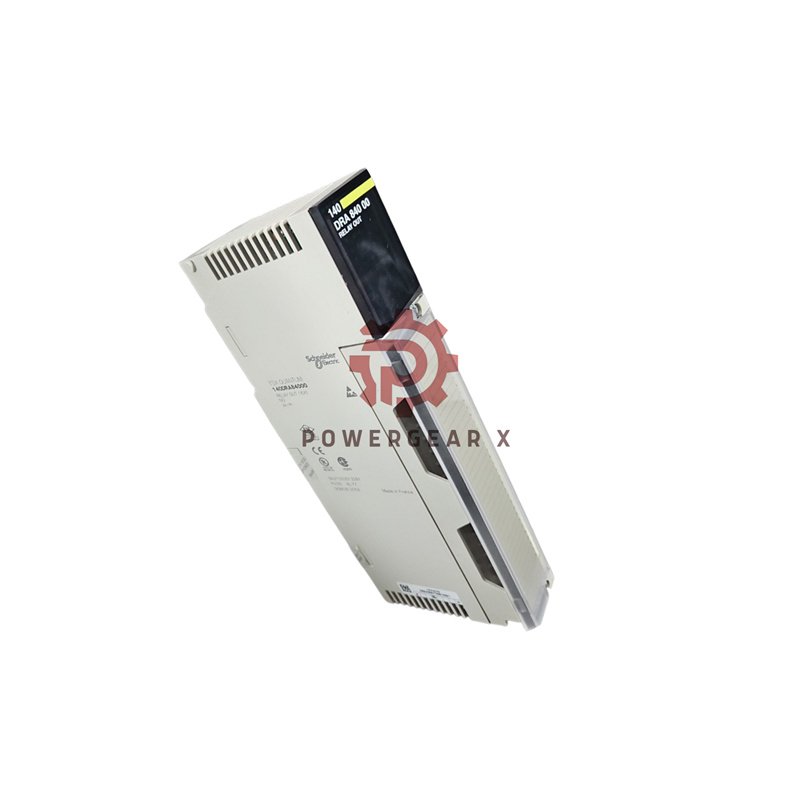

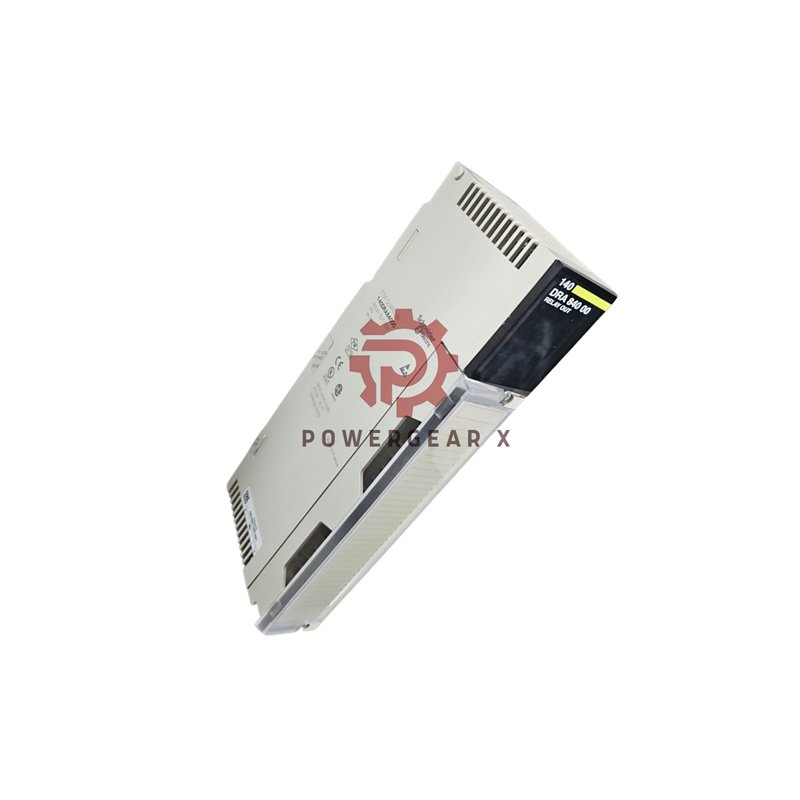

Schneider Electric 140DRA84000 Quantum Relay Output Module
The 140DRA84000 from Schneider Electric’s Modicon Quantum series delivers exceptional performance in industrial automation. This 16-channel relay output module combines robust construction with versatile voltage support for demanding applications.
Technical Specifications
- Output Type: 16 discrete relay outputs, Form A (1 NO)
- Voltage Range: 20-250V AC, 30-150V DC, 5-30V DC
- Max Load Current: 2A at 250V AC/30V DC resistive
- Switching Capacity: 500VA resistive load
- Response Time: 10ms (ON), 20ms (OFF)
- Isolation: 1780Vrms between channels and bus
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Power Consumption: 5.5W + (0.5 × number of active points)
- Certifications: UL 508, CSA C22.2, FM Class 1 Division 2
Installation & Compatibility
- Designed for Modicon Quantum automation platform
- Requires 1 output word for addressing
- Standard module format for easy integration
- Bus current requirement: 1100mA
- Net weight: 0.41 kg (0.90 lbs)
Packaging & Shipping
- Package includes: 1 × 140DRA84000 module
- Package dimensions: 31.2 × 16.3 × 4.5 cm (12.28 × 6.42 × 1.77 in)
- Shipping weight: 545 g (19.2 oz)
- Available shipping methods: FedEx, UPS, DHL
Frequently Asked Questions
- Q: What load types can this module handle?
A: It supports resistive, inductive, lamp, and motor loads with specific current ratings. - Q: What protection does the module offer?
A: It features internal varistor protection (275V) and high noise immunity. - Q: Is this module suitable for harsh environments?
A: Yes, it operates at up to 5000m altitude and 95% humidity without condensation.
