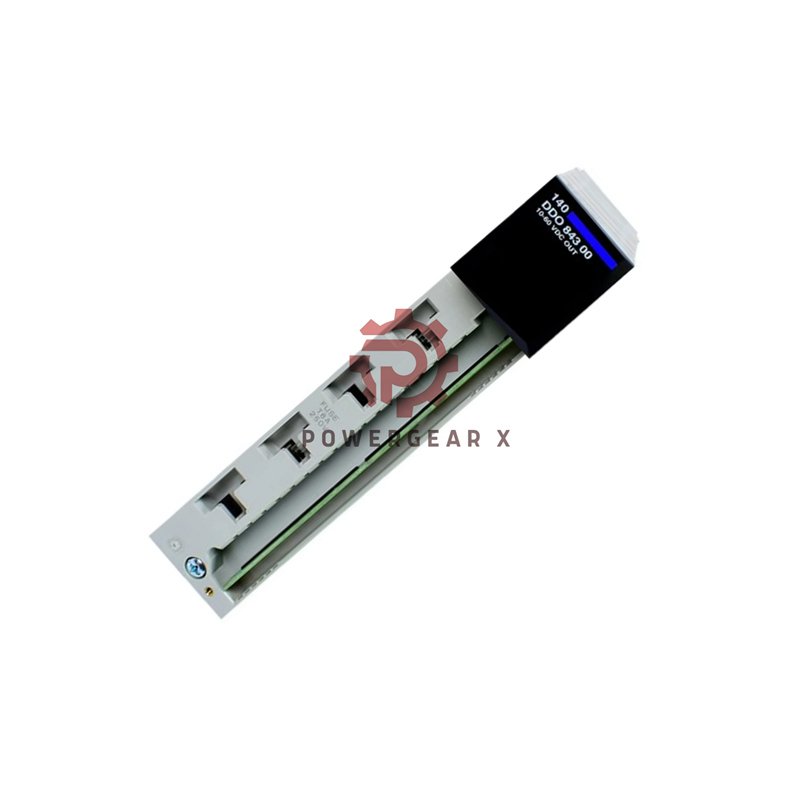

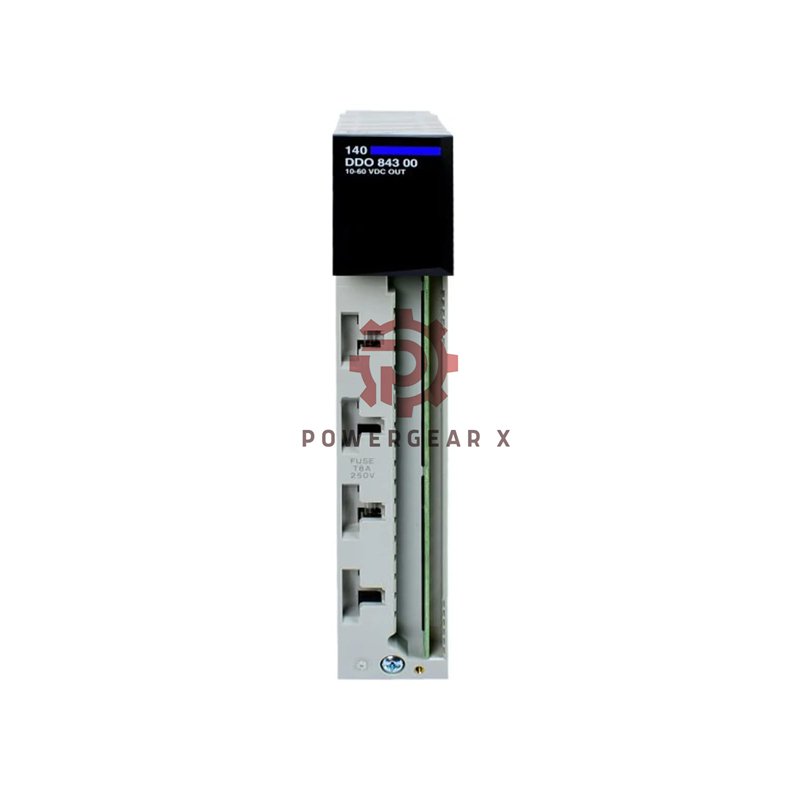

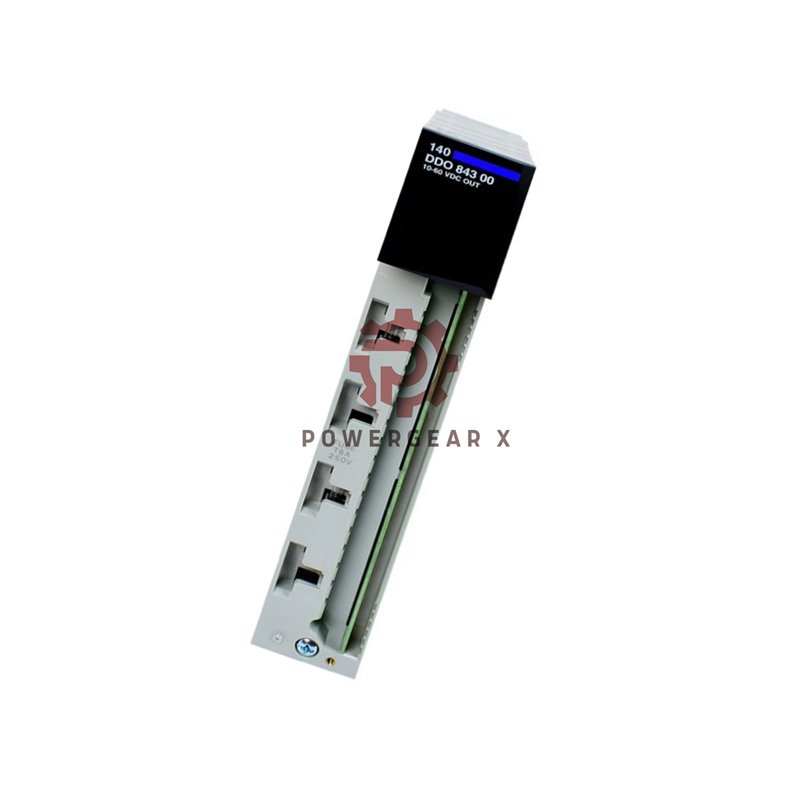

Schneider Electric 140DDO84300: Powerful 16-Point DC Output Module
Upgrade your control cabinet with the 140DDO84300. This Modicon Quantum module handles tough jobs with 16 outputs. It works with a wide range of DC voltages. Perfect for industrial machines and automation systems. It offers great performance and keeps your setup safe.
Top Reasons To Choose This Module
- Handles high power: 12A total, 6A per group.
- Wide voltage range: 10 to 60 V DC for many uses.
- Very fast switching: Turns on/off in 1 ms or less.
- Strong protection: Fuses guard each group from overloads.
- Clear status lights: Green LEDs show each output’s state.
- Built to last: Works in tough factory conditions.
Key Technical Details
- Brand: Schneider Electric
- Full Model: 140DDO84300
- Output Type: 16 DC Points, Positive Logic (Source)
- Voltage Range: 10.2 – 72 V DC
- Max Current: 2 A per point, 6 A per group, 12 A total
- Surge Current: 7.5 A for 50 seconds
- Isolation: 2500 Vrms (channels to bus), 700 Vrms (between groups)
- Power Use: 1 W + (1 V x total current)
- Weight: 0.45 kg (0.99 lb)
Works In Tough Places
- Operating Temp: 0°C to 60°C (32°F to 140°F)
- Storage Temp: -40°C to 85°C (-40°F to 185°F)
- Humidity: 95% (no water drops)
- Altitude: Up to 5000 meters (16404 feet)
- Certifications: UL, CSA, FM Class 1 Div 2, GOST, RMRS
Package & Support
- You get one 140DDO84300 module.
- We ship fast via FedEx, UPS, or DHL.
- This product includes a 12-month warranty.
Answers To Common Questions
- What does “source” output mean?
It provides positive voltage to the load, like a switch for the hot wire. - Can I use it with 24V devices?
Yes! It works with any DC voltage from 10V to 60V. - What happens if a fuse blows?
The red “F” LED lights up to show a fault. - How do I wire the outputs?
Wire them in two groups of eight for best safety. - Is it good for fast cycling?
Yes, its 1 ms response is great for quick jobs.
