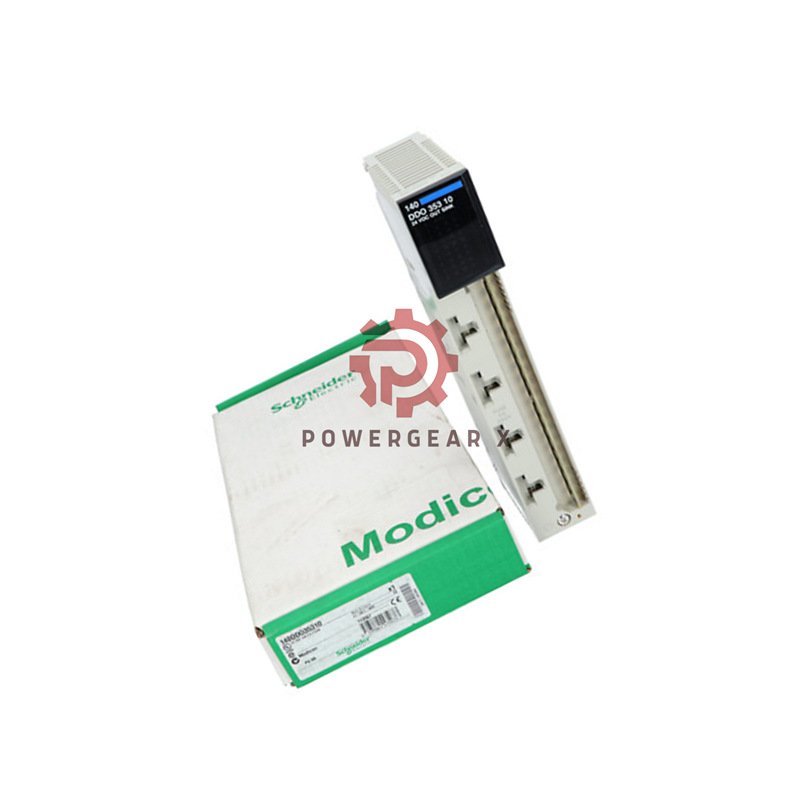

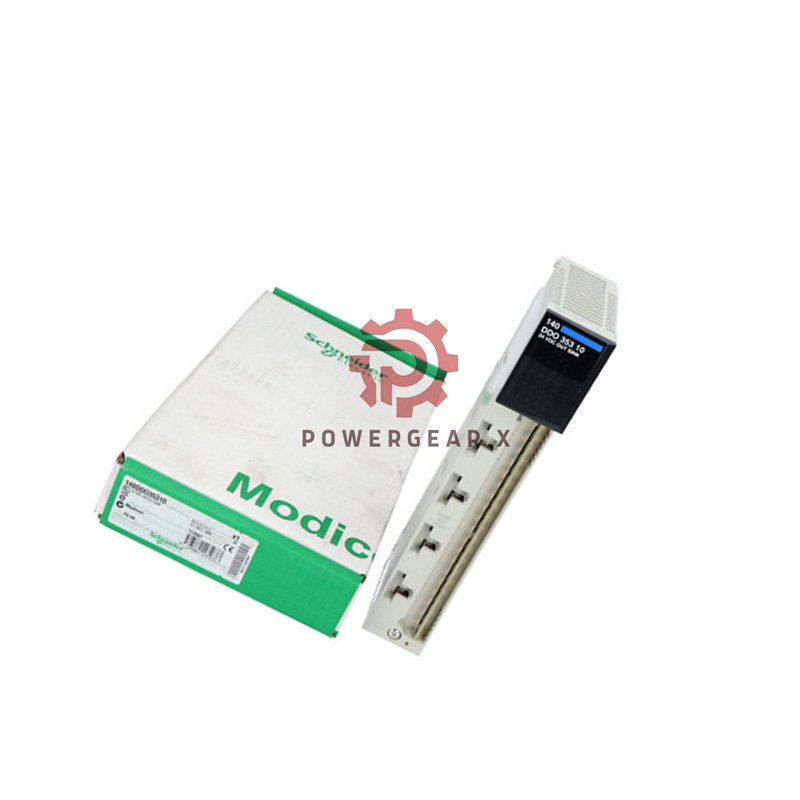

Schneider Electric 140DDO35310 32-Channel DC Output Module
Power your automation system with the high-performance 140DDO35310 DC output module. This robust solution delivers reliable control for demanding industrial applications.
Technical Specifications
- Brand: Schneider Electric
- Model: 140DDO35310
- Output Type: 32 DC outputs (negative logic/sinking)
- Voltage Range: 24V DC (19.2-30V operating range)
- Current Capacity: 16A total, 4A per group, 0.5A per point
- Response Time: ≤1ms (both ON and OFF)
- Voltage Drop: <0.4V @ 0.5A
- Surge Current: 5A for 1ms
- Isolation: 1780V RMS (channel to bus), 500V RMS (between groups)
- Protection: 5A fuses per output group
- Power Consumption: 2.0W + (0.4V x load current)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Certifications: UL 508, CSA, FM Class 1 Div 2, GOST, RINA
- Warranty: 12 Months
Protection & Diagnostics
- 5A fuse protection for each output group
- Loss of field power detection
- Blown fuse indication
- 32 green LEDs for output status monitoring
- Green Active LED for bus communication
- Red Fault LED for external fault detection
Package & Shipping Information
- Includes one 140DDO35310 output module
- Package dimensions: 31.2 × 16.3 × 4.5 cm
- Shipping weight: 486 g (17.1 oz)
- Global shipping via FedEx, UPS, and DHL
- Fully tracked and insured delivery
Frequently Asked Questions
- What type of outputs does this module have?
It provides 32 sinking (negative logic) DC output channels. - What is the total current capacity?
It can handle 16A total current, with 4A per group maximum. - What protection features are included?
It has 5A fuses per group and surge protection up to 5A for 1ms. - What is the response time?
It features fast 1ms response time for both switching directions. - What certifications does it carry?
It has FM Class 1 Division 2, GOST, RINA, and other global certifications.
