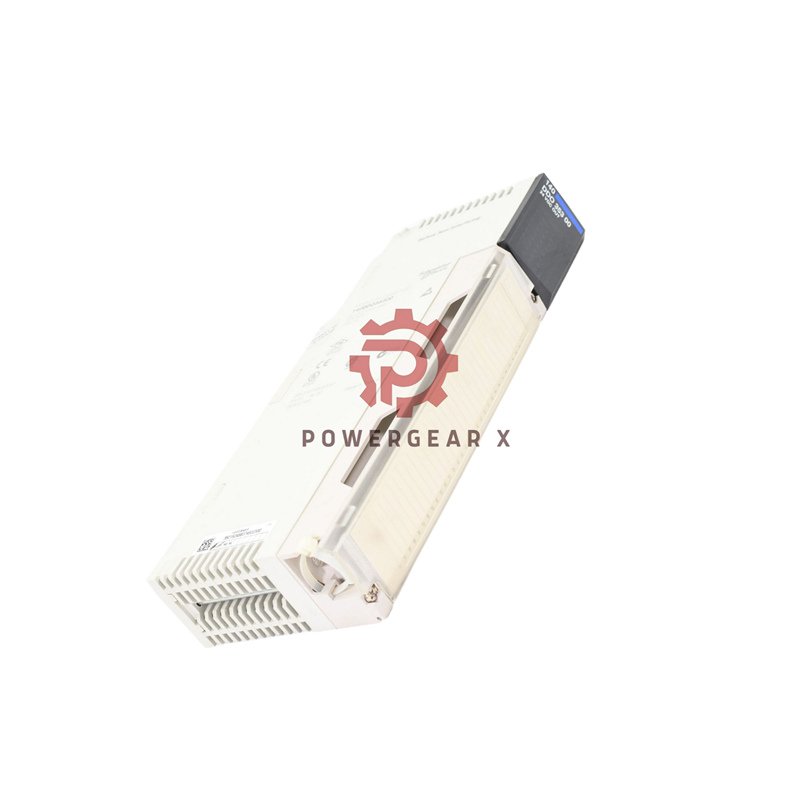

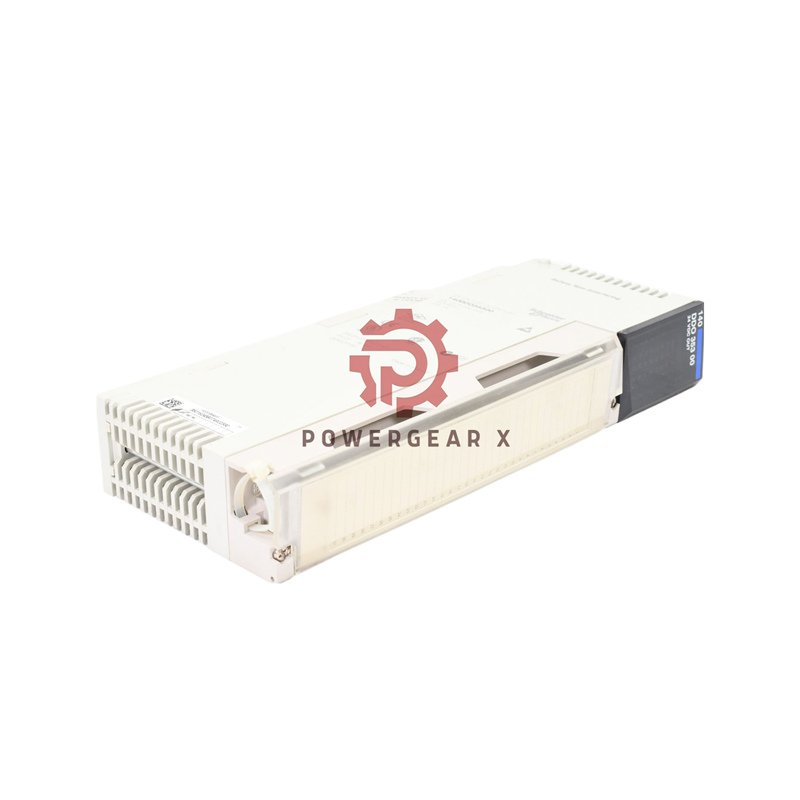

Schneider Electric 140DDO35300 Solid State Output Module
The Schneider Electric 140DDO35300 provides reliable DC output control for demanding industrial applications. This 32-point solid state module delivers exceptional performance and safety for Modicon Quantum systems.
Technical Specifications
| Brand | Schneider Electric |
| Model | 140DDO35300 |
| Output Type | Solid State DC |
| Number of Points | 32 |
| Voltage Range | 19.2-30V DC |
| Current Rating | 4A per group, 16A total |
| Response Time | ≤1ms (both transitions) |
| Voltage Drop | <0.4V @ 0.5A |
| Surge Current | 5A for 0.5ms |
| Isolation | 1780Vrms (channel to bus) |
| Backplane Current | 330mA @ 5V |
| Operating Temperature | 0°C to 60°C |
| Weight | 15.3 oz (434.9g) |
Protection Features
- Individual 3A fuse protection per point
- Group 5A fuse protection
- 4kV contact ESD protection
- 8kV air discharge protection
- Overvoltage protection (56V for 1.3s)
- EMC immunity 10V/m (80-2000MHz)
Certifications & Compliance
- FM Class 1 Division 2
- UL 508, CSA C22.2 No 142
- GOST, BV, RMRS, ABS, DNV, GL, RINA
- C-tick compliance
- CE marked
- International marine certifications
Status Monitoring
- 32 green LEDs for output status
- Green Active LED for bus communication
- Red Fault LED for power loss or blown fuse
- Real-time diagnostic capabilities
- Visual indication of module status
Electrical Characteristics
- Leakage Current: 0.4mA maximum @ 30V
- Power Dissipation: 1.75W + (0.4V × load current)
- Max Voltage Pulse: 56V for 1.3 seconds
- Load Inductance: Formula provided for 50Hz operation
- Addressing: 2 output words required
Shipping & Support
- Single unit packaging
- Global shipping: FedEx, UPS, DHL
- Origin: Manufactured in USA
- Delivery: 3-7 business days
- Warranty: 12 months
- Return policy: Yes
Frequently Asked Questions
- What does solid state output mean? No moving parts, longer life, faster switching.
- How is the module protected? Individual 3A fuses per point, 5A per group.
- What voltage range does it support? 19.2-30V DC operating range.
- Is this suitable for hazardous areas? Yes, FM Class 1 Division 2 certified.
- What is the maximum current capacity? 4A per group, 16A total module current.
