Buy 140DDO35300 DC Output Module – 24V 32-point

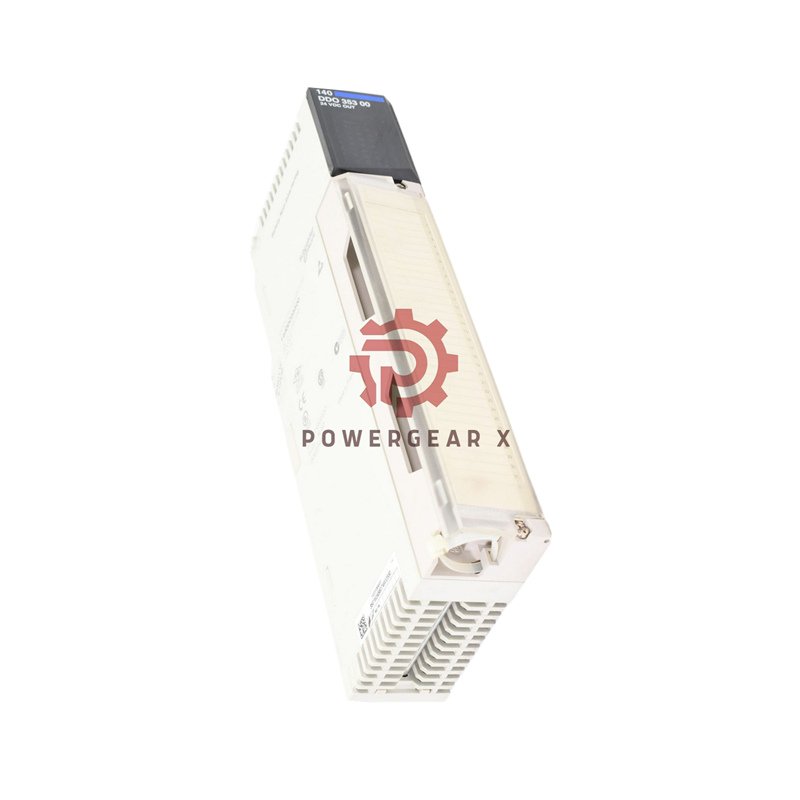

Schneider Electric 140DDO35300 Solid State Output Module

The Schneider Electric 140DDO35300 delivers reliable 32-point solid state output control for demanding industrial applications. This high-density module ensures precise 24V DC switching with robust protection features.

Technical Specifications

• Brand: Schneider Electric
• Model: 140DDO35300
• Type: 32-point DC Output Module
• Voltage: 24V DC (19.2-30V range)
• Current Rating: 4A per group, 16A total
• Response Time: 1ms (both ON and OFF)
• Isolation: 1780Vrms channel-to-bus, 500Vrms between groups
• Fuse Protection: 5A per group, 3A per point
• Leakage Current: 0.4mA maximum
• Power Consumption: 1.75W + (0.4V × load current)
• Addressing: 2 output words required
• Certifications: FM Class 1 Div 2, GOST, BV, DNV, GL, ABS, RINA
• Operating Temp: 0°C to 60°C
• Warranty: 12 months

Environmental Ratings

• ESD Protection: 4kV contact, 8kV air discharge
• EMI Immunity: 10V/m (80-2000MHz)
• Humidity: 95% non-condensing
• Altitude: 5000 meters maximum
• Storage Temp: -40°C to 85°C

Shipping & Delivery

• Package Contents: 1 output module
• Dimensions: 31.09 × 16.44 × 4.59 cm
• Weight: 434.9 grams
• Shipping: FedEx, UPS, DHL Express
• Origin: United States (US)
• Delivery: Worldwide express shipping

Frequently Asked Questions

• What output configuration does it use?
  This module uses sourcing (positive logic) output configuration.
• How many words of addressing does it require?
  Requires 2 output words in the controller’s memory map.
• What protection features are included?
  5A fuse protection per group, 3A per point, and surge protection.
• Is this module marine certified?
  Yes, includes BV, DNV, GL, ABS, and RINA marine certifications.
• What is the maximum surge current?
  Handles 5A surge current for 0.5 milliseconds.
