Product details

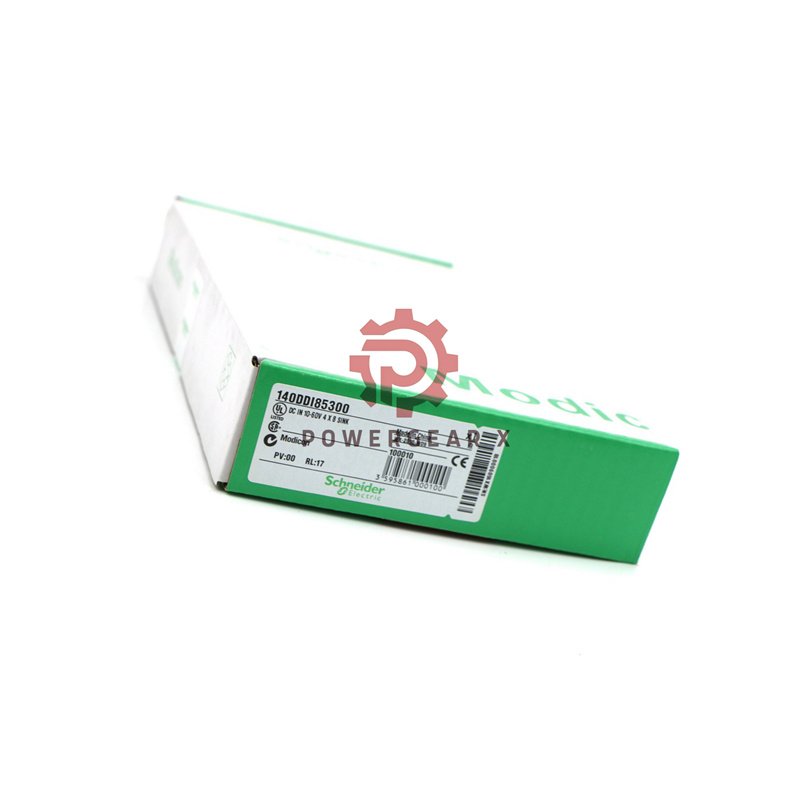

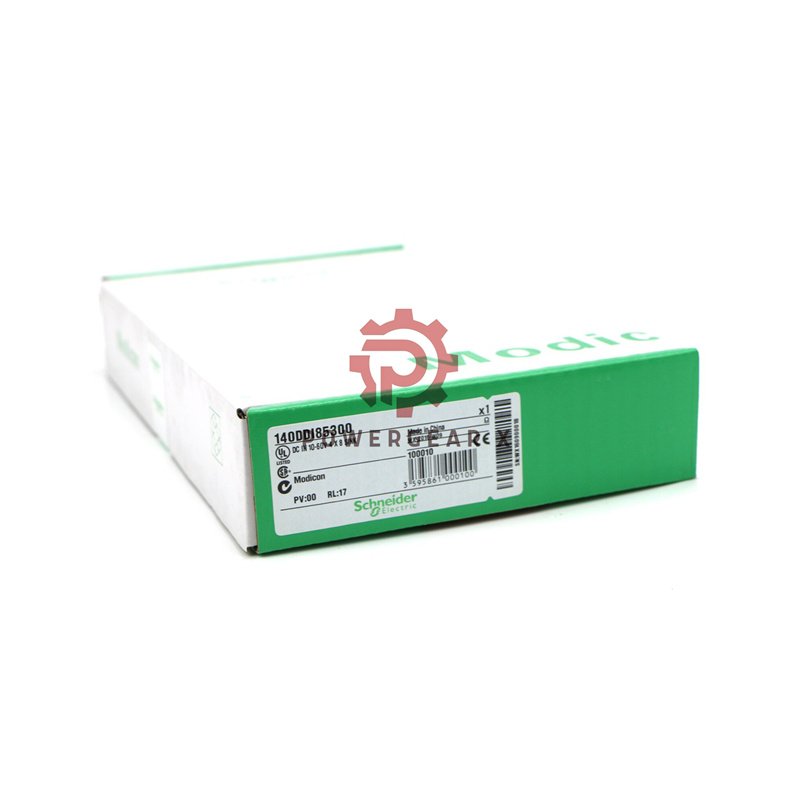

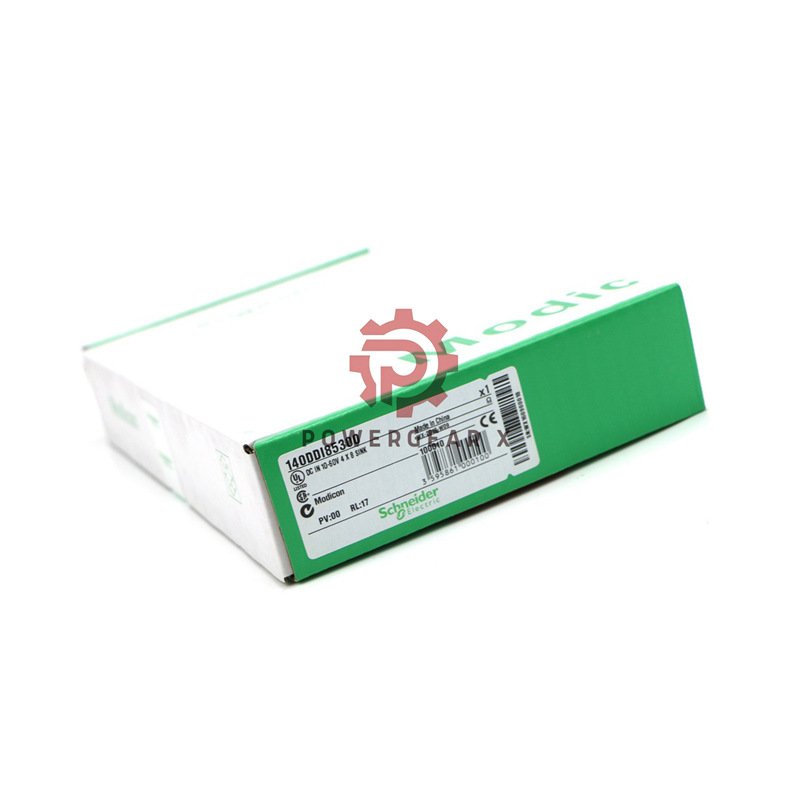

Schneider Electric 140DDI85300A Universal DC Input Module
Maximize your system’s flexibility with the versatile 140DDI85300 DC input module. This high-density solution handles multiple voltage ranges for diverse industrial applications.
Technical Specifications
- Brand: Schneider Electric
- Model: 140DDI85300
- Input Channels: 32 DC inputs (positive logic/sinking)
- Voltage Range: 10-60V DC (12V, 24V, 48V, 60V compatible)
- Current Draw: 1-30 mA (varies by voltage level)
- Response Time: 4ms (ON and OFF)
- Isolation: 2500V RMS (group to bus), 700V RMS (between groups)
- Max Voltage Protection: 75V DC absolute maximum
- Switching Frequency: ≤100 Hz
- Power Consumption: 1W + (0.25 x active points)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Certifications: UL, CSA, CE, RCM, EAC, Merchant Navy, Class 1 Div 2
- Warranty: 12 Months
Voltage-Specific Performance
- 12V Systems: 5-10mA current, 9-12V ON state, 0-1.8V OFF state
- 24V Systems: 6-30mA current, 11-24V ON state, 0-5V OFF state
- 48V Systems: 2-15mA current, 34-48V ON state, 0-10V OFF state
- 60V Systems: 1-5mA current, 45-60V ON state, 0-12.5V OFF state
Package & Shipping Details
- Includes one 140DDI85300 input module
- Package dimensions: 31.2 × 16.3 × 4.5 cm
- Shipping weight: 428 g (15.1 oz)
- Global shipping via FedEx, UPS, and DHL
- Fully tracked and insured delivery
Frequently Asked Questions
- What DC voltages does this module support?
It works with 12V, 24V, 48V, and 60V DC systems seamlessly. - How many input channels are available?
It provides 32 discrete input channels in four isolated groups. - What is the response time for signal changes?
It offers a consistent 4ms response for both ON and OFF transitions. - What safety certifications does it have?
It carries UL, CSA, CE, RCM, EAC, and Merchant Navy approvals. - What is the maximum voltage protection?
It can handle up to 75V DC without damage to the module.
