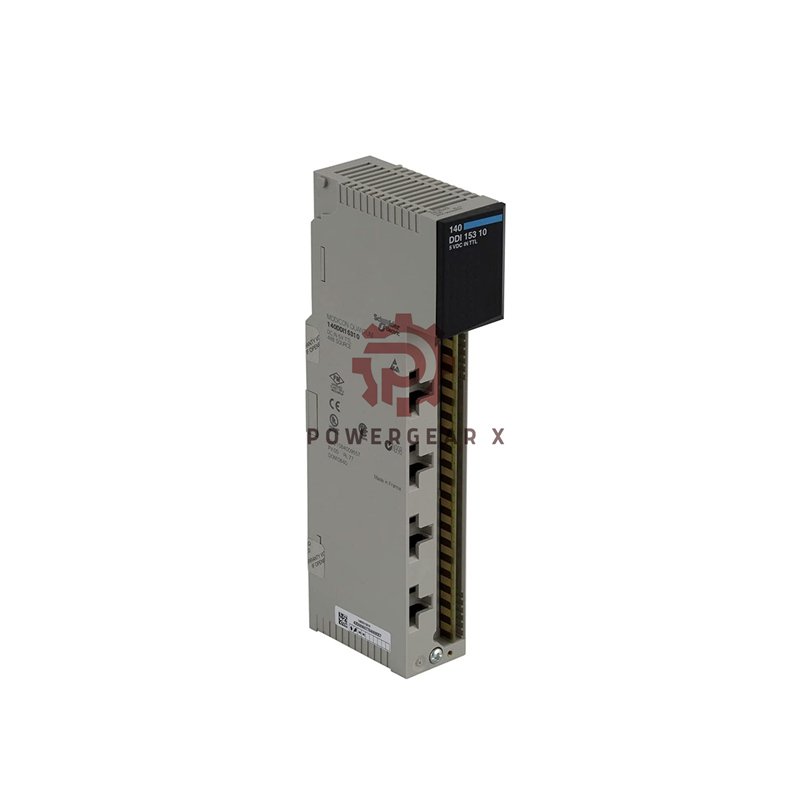

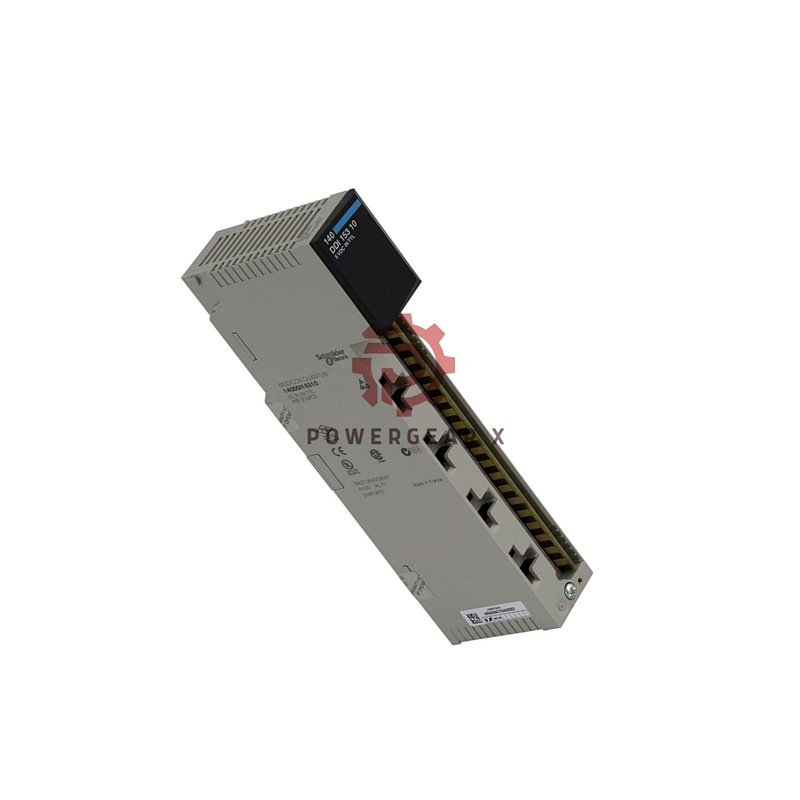

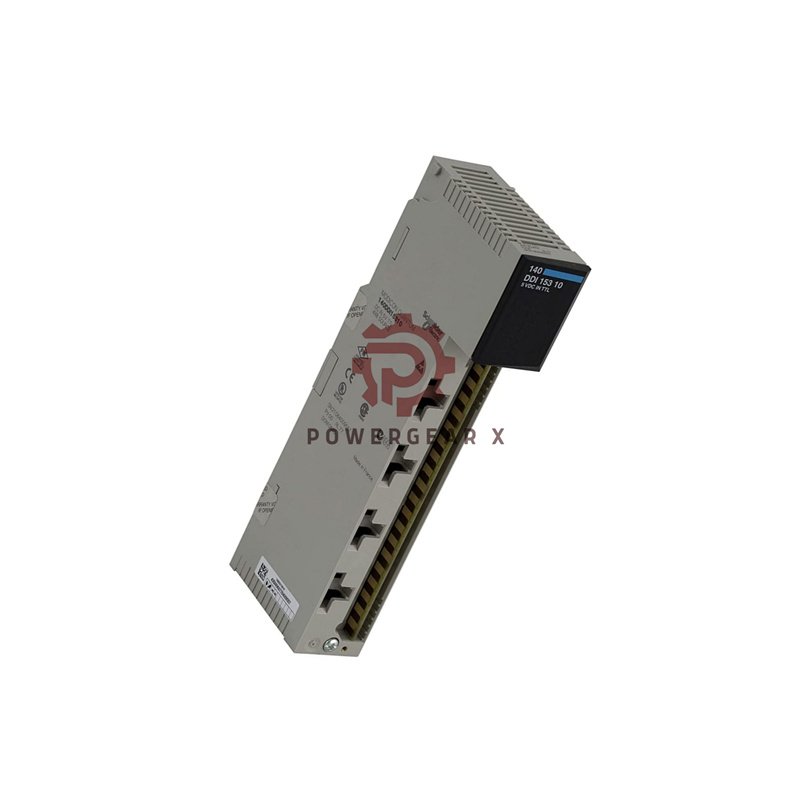

Schneider Electric 140DDI15310 32-Channel DC Input Module
Maximize your system’s input capacity with the high-density 140DDI15310 digital input module. This reliable component provides 32 discrete inputs in a single slot for Modicon Quantum systems.
Technical Specifications
- Brand: Schneider Electric
- Model: 140DDI15310
- Input Type: 32 DC discrete inputs (negative logic)
- Operating Voltage: 5V DC (4.5-5.5V range)
- Input Current: 4 mA per point
- Input Impedance: 7500 Ohms
- Response Time: ≤250μs (ON), ≤500μs (OFF)
- Max Voltage Protection: 15V absolute maximum
- Leakage Current: <200 μA
- Power Dissipation: 5W maximum
- Channel Groups: 4 groups of 8 inputs
- Addressing: 2 input words required
- Warranty: 12 Months
Package & Shipping Information
- Includes one 140DDI15310 input module
- Comprehensive installation documentation
- Global shipping via FedEx, UPS, and DHL
- Fully tracked and insured delivery
- Quick processing available
Frequently Asked Questions
- What is the input voltage requirement?
It operates at 5V DC with a tolerance range from 4.5V to 5.5V. - How many input channels does it provide?
It offers 32 discrete input channels organized in 4 groups. - What is the response time of this module?
It features fast response times: 250μs ON and 500μs OFF. - What type of logic does it use?
It uses negative logic for input signal processing. - Is there input protection?
Yes, it includes input protection up to 15V maximum.
