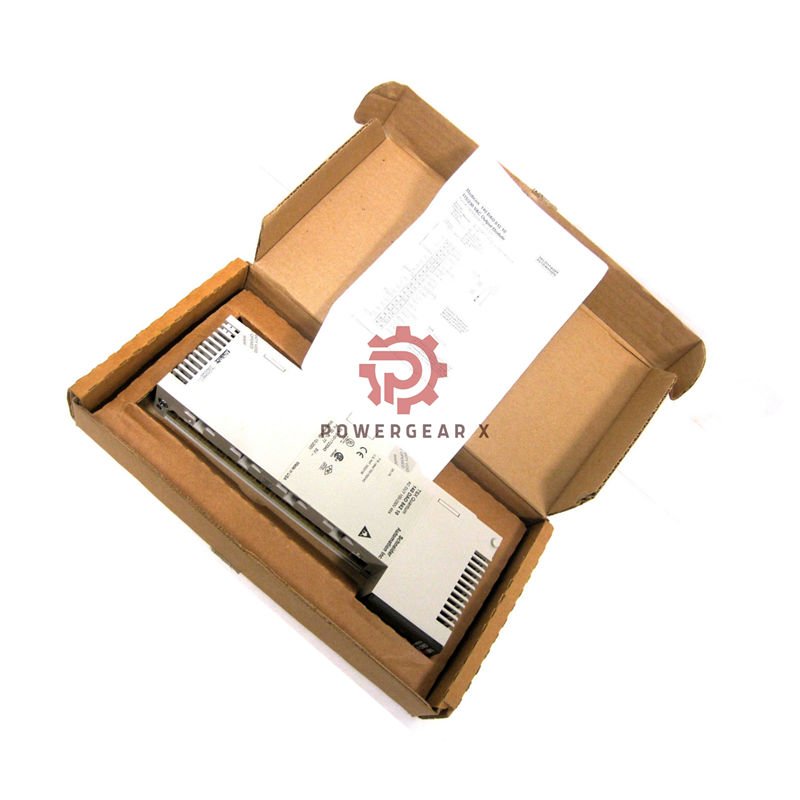

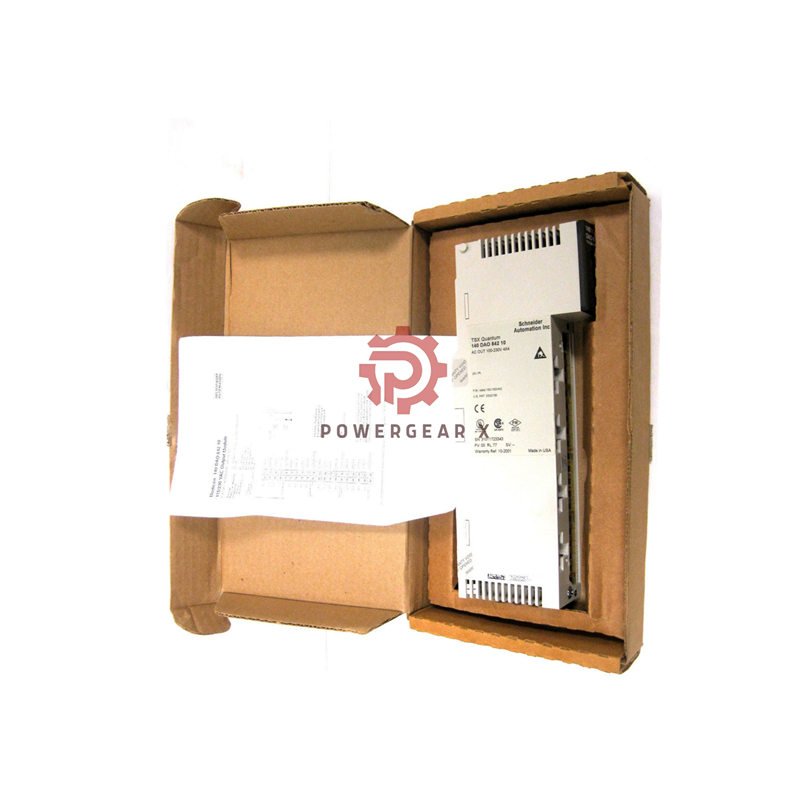

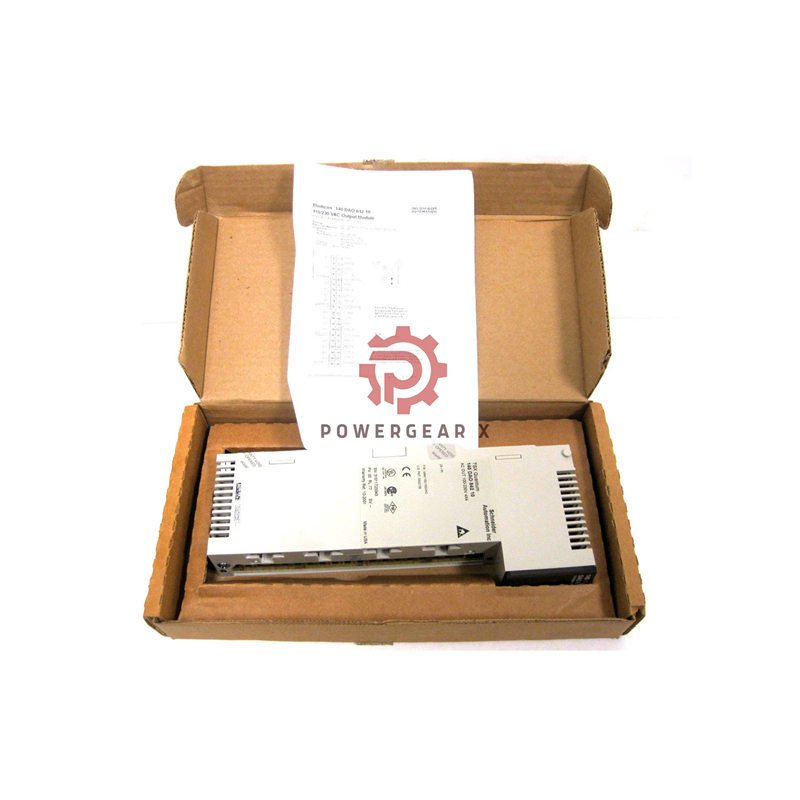

Schneider Electric 140DAO84210 High-Power AC Output Module
The Schneider Electric 140DAO84210 delivers robust AC output control for industrial automation applications. This 16-point output module handles high-voltage AC loads with advanced protection features.
Technical Specifications
| Brand | Schneider Electric |
| Model | 140DAO84210 |
| Output Type | AC Discrete |
| Number of Points | 16 |
| Voltage Range | 83-253V AC |
| Current Rating | 4A per point, 16A total |
| Surge Current | 30A for 1 cycle (per point) |
| Response Time | ≤0.5ms (both on/off) |
| DV/DT Rating | 400V/ms |
| Isolation | 4 isolated groups |
| Backplane Current | 350mA @ 5V |
| Operating Temperature | 0°C to 60°C |
| Certifications | cUL, FM Class 1 Div 2 |
| Weight | 22.4 oz (634g) |
Protection & Safety
- 5A fuse protection per output
- RC filter for noise suppression
- Surge current handling up to 45A
- 4kV contact ESD protection
- 8kV air discharge protection
- EMC immunity 10V/m (80-1000MHz)
Status Monitoring
- 16 green LEDs for output status
- Green Active LED for bus communication
- Red Fault LED for power loss or blown fuse
- Real-time diagnostics monitoring
- Visual fault identification
Performance Characteristics
- Leakage Current: 2-2.5mA RMS (off state)
- Voltage Drop: 1.5V maximum
- Frequency Range: 47-63 Hz
- Max Voltage: 300V RMS for 10s
- Power Dissipation: 1.85W + (1.1V × load current)
- Addressing: 1 output word required
Shipping & Support
- Single unit packaging
- Global shipping: FedEx, UPS, DHL
- Origin: Manufactured in China
- Delivery: 3-7 business days
- Warranty: 12 months
- Return policy: Yes
Frequently Asked Questions
- What types of loads can this module drive? AC motors, solenoids, heaters, and lighting up to 4A.
- How does it handle power surges? Built to withstand 30A surges for 1 cycle per point.
- What protection features are included? Individual 5A fuses and RC filtering for each output.
- Is this suitable for hazardous locations? Yes, FM Class 1 Division 2 certified.
- What is the maximum operating voltage? 253V AC continuous, 300V AC for 10 seconds.
