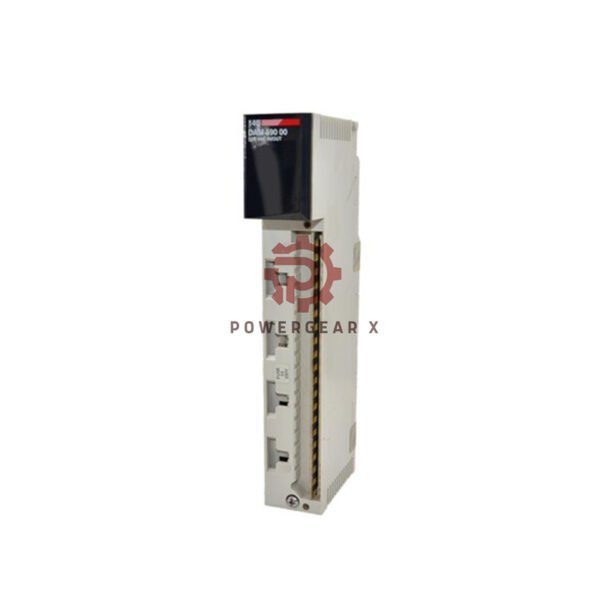

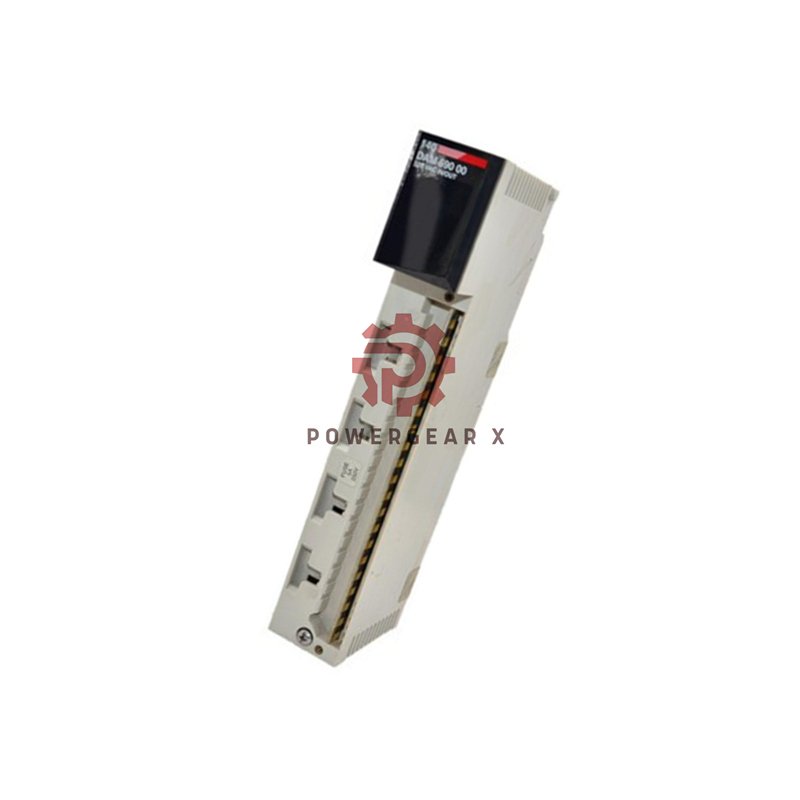

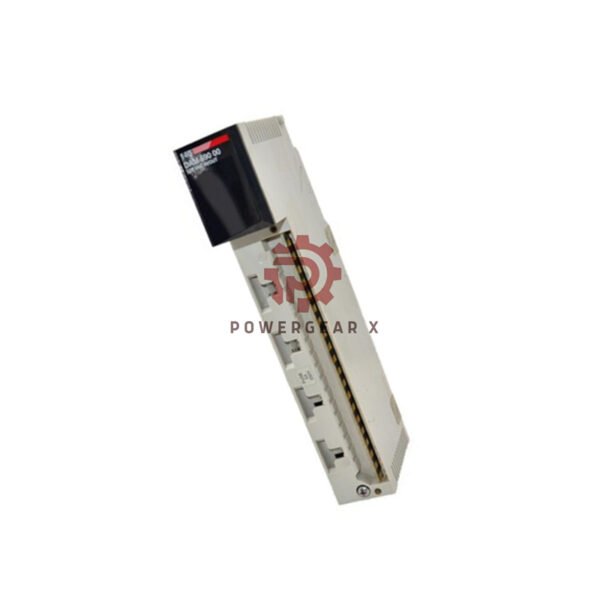

Schneider Electric 140DAM59000 Mixed I/O Module
Streamline your control system with the versatile 140DAM59000 mixed I/O module. This compact solution combines 16 AC inputs and 8 solid-state outputs in a single module for space-efficient automation.
Technical Specifications
- Brand: Schneider Electric
- Model: 140DAM59000
- Input Channels: 16 (115V AC, 2 groups of 8)
- Output Channels: 8 solid-state (115V AC, 2 groups of 4)
- Input Voltage: 79-132V AC (On), 0-20V AC (Off)
- Output Capacity: 4A per point, 8A per group
- Response Time: ≤0.5ms (outputs), 0.75-12.3ms (inputs)
- Isolation: 1780V RMS between channels and bus
- Protection: 5A fuse per output group, RC filtering
- Power Consumption: 5.5W + (1.1 x load current)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Certifications: cUL, FM Class 1 Division 2, UL 508
- Warranty: 12 Months
Diagnostic Capabilities
- Green Active LED for bus communication status
- Red Fault LED for power loss detection
- 2 green output status indicators
- 2 red input fault indicators
- 2 red output fault indicators
- Blown fuse detection on outputs
- Loss of field power indication
Package & Shipping Information
- Includes one 140DAM59000 mixed I/O module
- Package dimensions: 31.2 × 16.3 × 4.5 cm
- Shipping weight: 560 g (19.8 oz)
- Global shipping via FedEx, UPS, and DHL
- Fully tracked and insured delivery
Frequently Asked Questions
- What types of I/O are included?
It combines 16 AC input channels and 8 solid-state output channels. - What is the output current rating?
Each output handles 4A continuously, with 8A maximum per group. - What protection features are provided?
It includes 5A fuses per output group and RC filtering for protection. - What diagnostic indicators are available?
It features multiple LEDs for status, faults, and power conditions. - What is the operating voltage range?
It operates with 115V AC signals from 79-132V AC.
