Product details

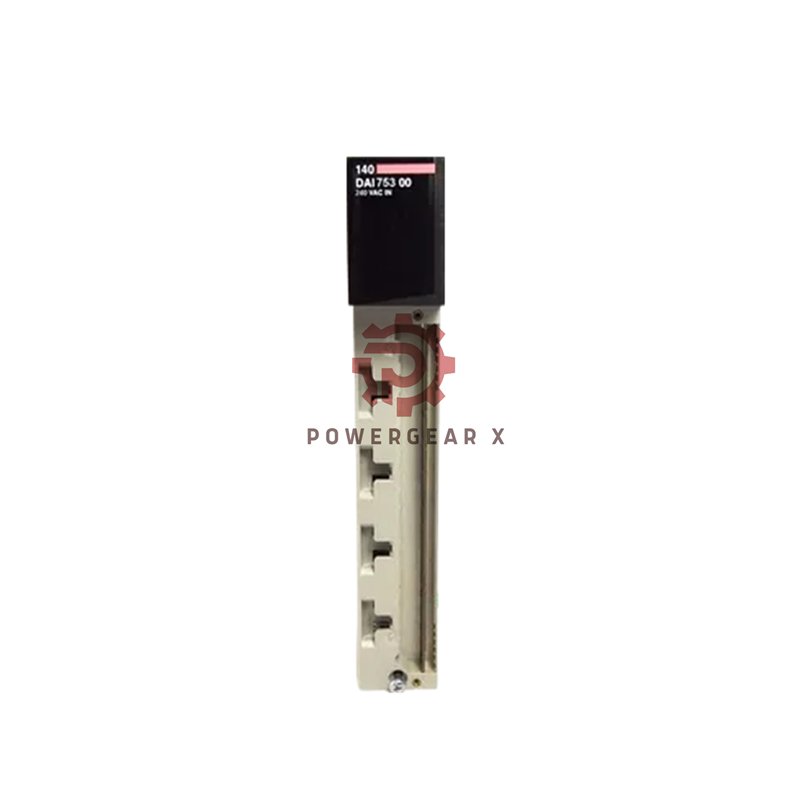

Schneider Electric 140DAI75300 230V AC Input Module
The Schneider Electric 140DAI75300 provides reliable high-voltage input monitoring for industrial applications. This 32-point module handles 230V AC signals with excellent isolation and safety features.
Key Benefits
- • 32-channel 230V AC input capacity
- • Wide operating range: 165-264V AC
- • 4 isolated channel groups for safety
- • Fast response: 0.75ms ON, 12.3ms OFF
- • High 1780V isolation protection
- • Individual status LEDs for all points
- • FM Class 1 Division 2 certified
- • Low power consumption: 250mA
Technical Specifications
- Brand: Schneider Electric
- Model: 140DAI75300
- Type: 32-point AC Input Module
- Voltage: 230V AC (165-264V range)
- Frequency: 47-63 Hz operation
- Current: 9.7-11.5 mA per point
- Isolation: 1780V between groups and bus
- Response: 0.75ms (ON), 12.3ms (OFF)
- Leakage: 2.6 mA maximum
- Certifications: cUL, FM Class 1 Div 2
- Warranty: 12 months
Safety & Protection
- 1780V isolation between channel groups
- 400V surge tolerance for 1 cycle
- 4kV contact ESD protection
- 8kV air gap ESD protection
- EMI resistance: 10V/m to 2000MHz
- Operating temperature: 0°C to 60°C
Packaging Options
- Single Unit: 31.5 x 16.5 x 4.7 cm, 514g
- 7-Pack: 40 x 30 x 30 cm, 4.03kg
- Shipping: FedEx, UPS, DHL available
- Delivery: Global express service
Frequently Asked Questions
- What voltage range does it support?
Operates from 165-264V AC at 47-63Hz frequency. - How many isolation groups are there?
4 separate isolation groups for enhanced safety. - What is the maximum surge voltage?
Handles 400V AC for one cycle without damage. - Is it suitable for hazardous areas?
Yes, FM Class 1 Division 2 certified. - What software is compatible?
Works with Concept, Unity Pro, and ProWORX 32.
