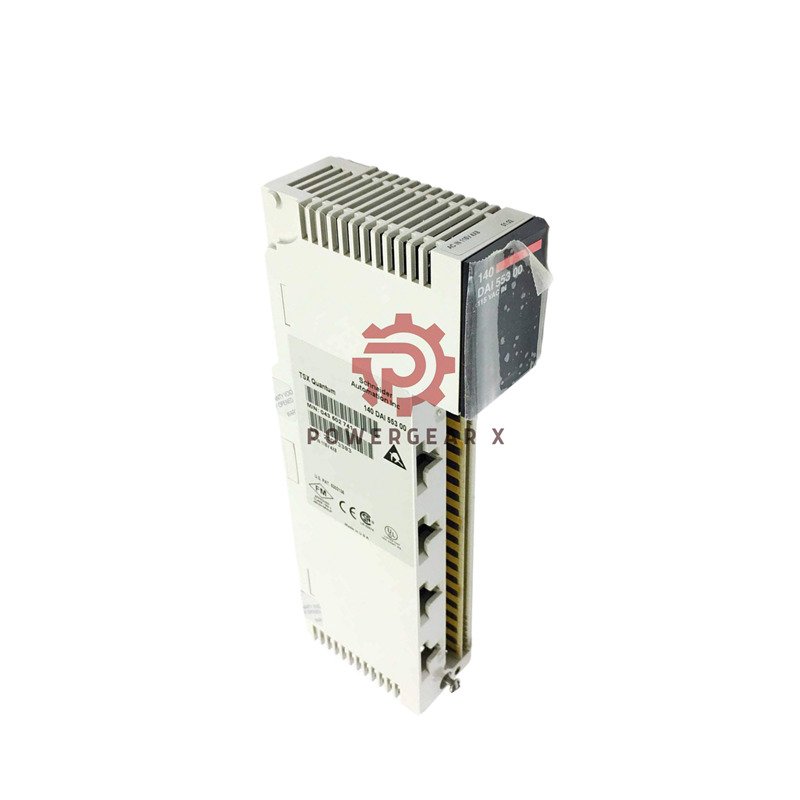

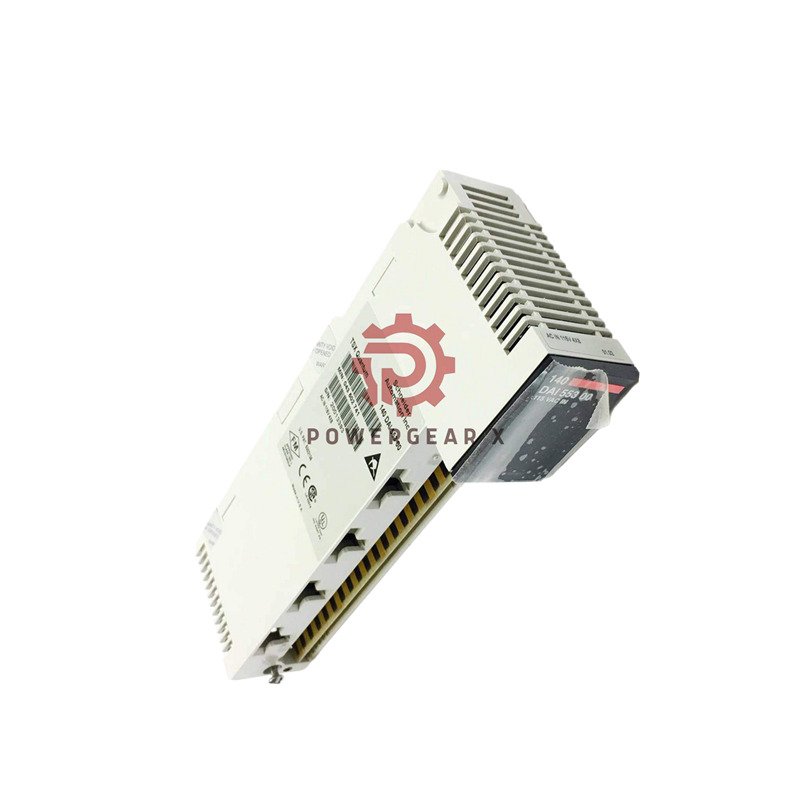

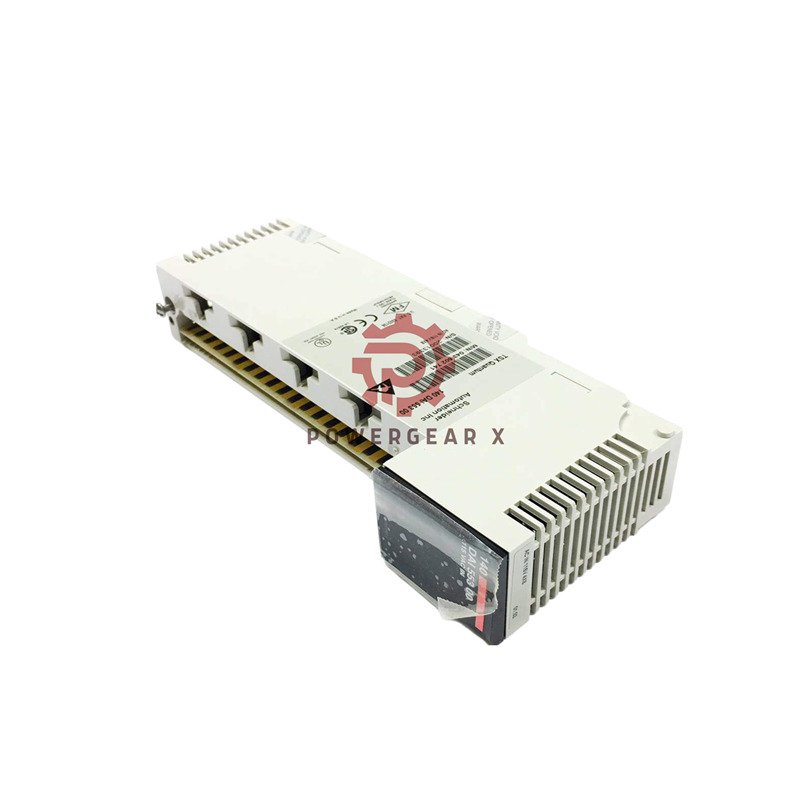

Schneider Electric 140DAI55300 32-Channel AC Input Module
Boost your industrial control system with the high-density 140DAI55300 discrete input module. This reliable component delivers exceptional performance for Modicon Quantum platforms handling 115V AC signals.
Technical Specifications
- Brand: Schneider Electric
- Model: 140DAI55300
- Input Type: 115V AC Discrete
- Channel Count: 32 inputs (4 groups of 8)
- Input Voltage: 79-132V AC (state 1), 0-20V AC (state 0)
- Frequency Range: 47-63 Hz
- Input Current: 11.1-13.2 mA depending on frequency
- Response Time: 0.75-12.3 ms (depending on transition)
- Isolation: 1780V RMS between groups and bus
- Power Consumption: 10.9W maximum
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Certifications: cUL, FM Class 1 Division 2, UL 508
- Warranty: 12 Months
Visual Indicators & Diagnostics
- 32 green LEDs for individual channel status
- Green Active LED for bus communication status
- Red Fault LED for external fault detection
- Quick visual identification of operational issues
- Simplified maintenance and troubleshooting
Package & Shipping Information
- Includes one 140DAI55300 input module
- Package dimensions: 31.2 × 30.0 × 4.5 cm
- Shipping weight: 448 g (15.8 oz)
- Global shipping via FedEx, UPS, and DHL
- Fully tracked and insured delivery options
Frequently Asked Questions
- What voltage signals does this module accept?
It handles 115V AC signals from 79-132V AC for state 1 recognition. - How many input channels are provided?
It offers 32 discrete input channels organized in 4 groups. - What programming software is compatible?
It works with Unity Pro, ProWORX 32, and Concept software. - What is the operating temperature range?
It functions reliably from 0°C to 60°C (32°F to 140°F). - Does it have diagnostic indicators?
Yes, it features 32 channel LEDs plus active and fault indicators.
