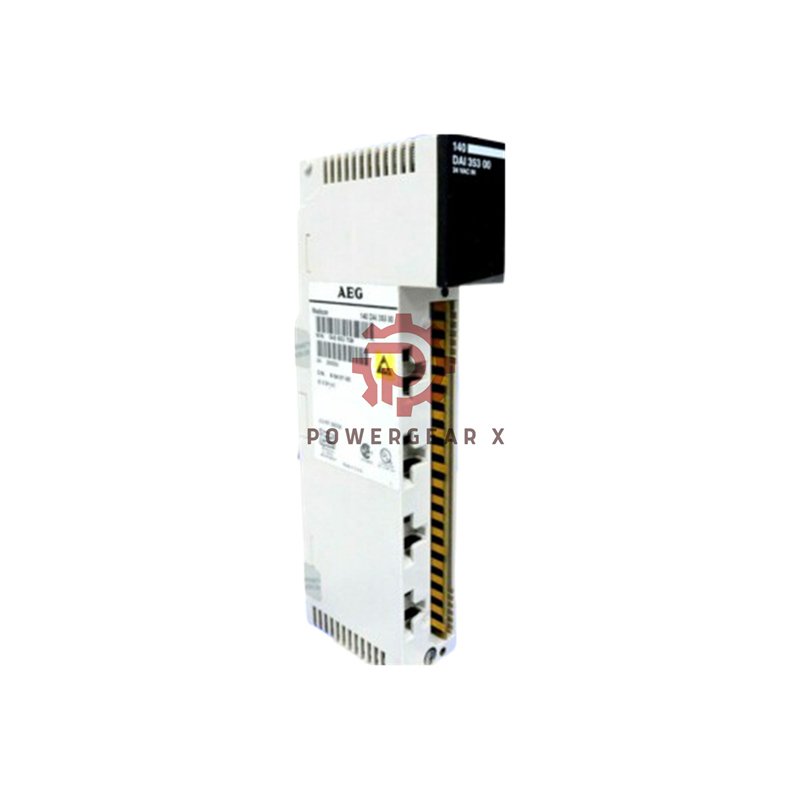

Schneider Electric 140DAI35300 AC Input Module
The Schneider Electric 140DAI35300 provides reliable AC input handling for industrial automation systems. This 32-point discrete input module offers excellent signal processing for 24V AC applications.
Technical Specifications
- Brand: Schneider Electric
- Model: 140DAI35300
- Input Type: 24V AC discrete
- Number of Points: 32 points
- Channel Groups: 4 isolated groups
- Input Voltage: 12-30V AC (state 1)
- Input Current: 11.1-13.2 mA
- Response Time: 0.75-12.3 ms
- Isolation: 1780 Vrms between groups
- Power Consumption: 10.9W maximum
- Backplane Current: 250 mA @ 5V
- Operating Temperature: 0°C to 60°C
- Certifications: UL, CSA, FM Class 1 Div 2, cUL, CE
- Weight: 16.8 oz (475g)
- Dimensions: 12.28″ x 6.42″ x 1.77″
Input Characteristics
- State 1 Voltage: 12-30V AC (57-63 Hz)
- State 0 Voltage: 0-5V AC
- Input Impedance: 2600-3100 Ohm capacitive
- Leakage Current: 1.9 mA maximum
- Max Voltage: 30V continuous, 32V for 10s
- Frequency Range: 47-63 Hz
Diagnostics & Indicators
- 32 green LEDs for individual input status
- Green Active LED for bus communication
- Red Fault LED for external errors
- Continuous status monitoring
- Visual fault identification
Compatibility & Programming
- ProWORX 32 software support
- Concept programming platform
- Unity Pro compatibility
- Modicon Quantum platform
- 2 input words addressing
Package & Support
- Single unit packaging
- Global shipping: FedEx, UPS, DHL
- Delivery: 3-5 business days
- Warranty: 12 months
- Return policy: Yes
Frequently Asked Questions
- What voltage does this module accept? 24V AC with 12-30V operating range.
- How many input points are available? 32 discrete input points.
- Is this module suitable for hazardous areas? Yes, FM Class 1 Division 2 certified.
- What is the response time? 0.75ms to 12.3ms depending on transition.
- What software supports this module? ProWORX 32, Concept, and Unity Pro.
