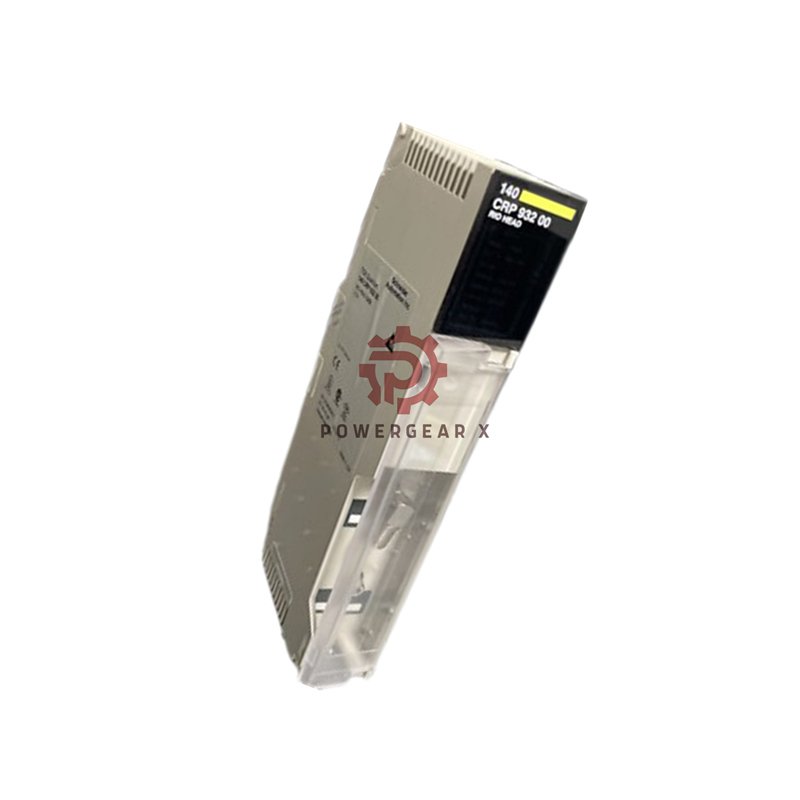

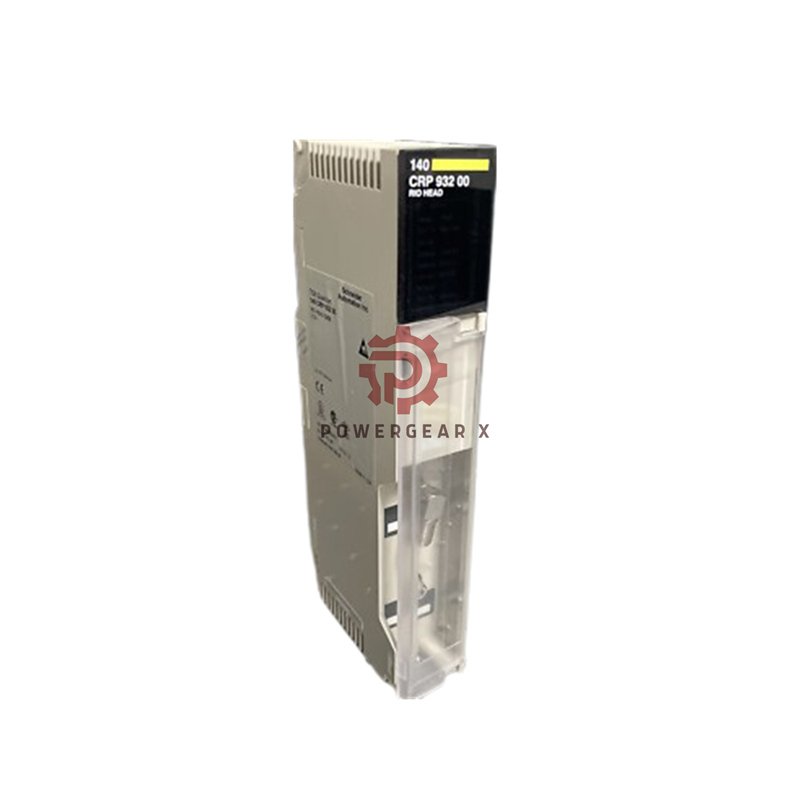

Schneider Electric 140CRP93200 RIO Head-End Adapter

The Schneider Electric 140CRP93200 enables high-speed remote I/O connectivity for industrial automation systems. This robust adapter module features redundant cable connections for maximum reliability.

Technical Specifications

• Brand: Schneider Electric
• Model: 140CRP93200
• Transmission Rate: 1544 Mbit/s
• Cable Type: 75 Ohm coaxial
• Max Drops/Network: 31
• I/O Capacity: 64 Input/64 Output words per drop
• Isolation Voltage: 500V DC
• Dynamic Range: 35 dB
• Power Consumption: 3W (2 channels)
• Backplane Current: 750 mA
• Operating Temp: 0°C to 60°C
• Connectors: 2 female F-type elbow connectors
• Certifications: FM Class 1 Div 2, UL, CSA, cUL
• Weight: 18.7 oz (531g)
• Dimensions: 12.20″ x 6.50″ x 1.97″

Compatibility

• Modicon Quantum 200/500/800 series
• Symax systems (any mix)
• 75 Ohm coaxial networks
• Various rack configurations

Protection & Safety

• 4kV contact ESD protection
• 8kV air discharge protection
• EMC immunity 10V/m (80-1000MHz)
• 500V DC isolation protection
• Hazardous location certification

Shipping & Support

• Single unit packaging
• Global shipping: FedEx, UPS, DHL
• Express delivery available
• 12-month warranty
• Technical support included

Frequently Asked Questions

• What is the maximum network size supported? Up to 31 drops per network.
• What type of cable is required? 75 Ohm coaxial cable.
• Is this suitable for hazardous areas? Yes, FM Class 1 Division 2 certified.
• What is the data transmission speed? 1544 Mbit/s high-speed communication.
• Does it support redundant operation? Yes, dual connectors with redundant cable paths.
