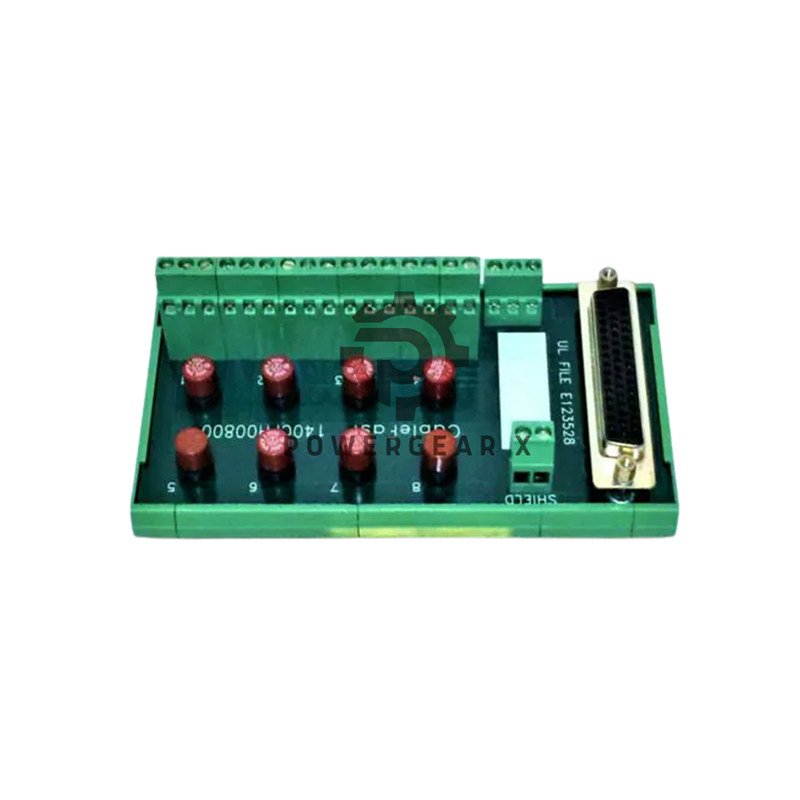

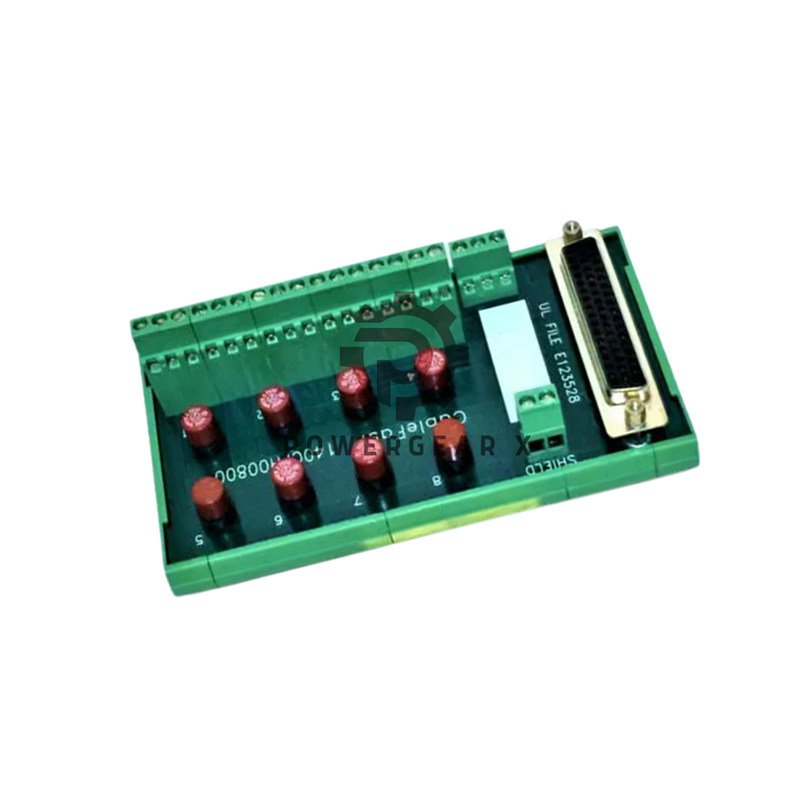

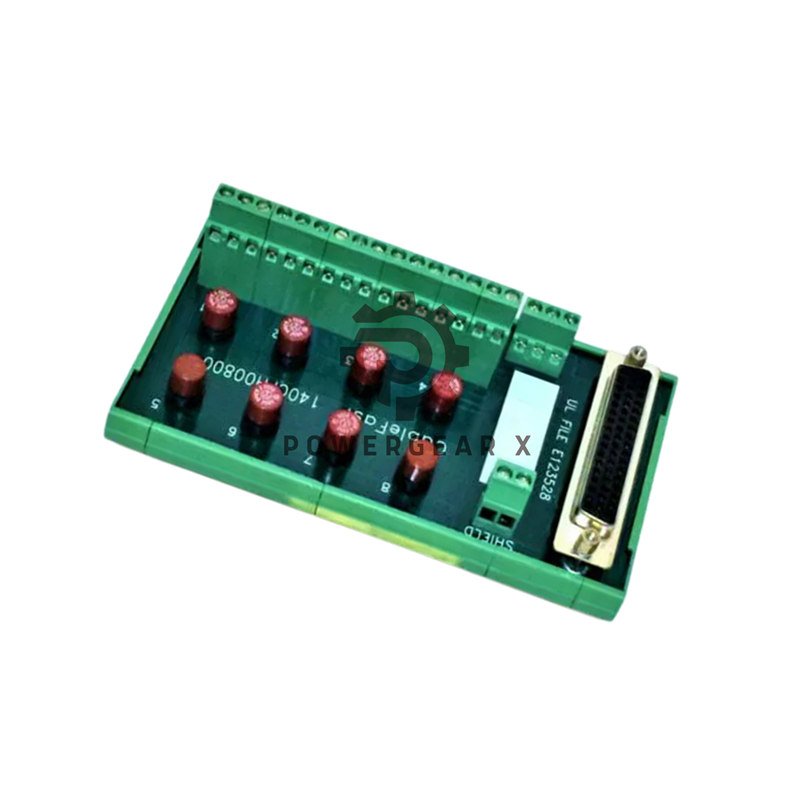

Schneider Electric 140CFH00800 Fused Analog Input Block
The Schneider Electric 140CFH00800 analog input block provides secure connections for Modicon Quantum systems. This terminal block offers superior signal protection and simplifies wiring for analog sensors.
Technical Details
- Brand: Schneider Electric
- Model: 140CFH00800 (Complete Suffix)
- Product Range: Modicon Quantum Platform
- Fuse Rating: 0.063 A per point
- Connection Points: 8 isolated channels
- Terminals: 4 per point (32 total)
- Connector: 50-pin SUB-D female
- Terminal Type: Captive screw clamp
- Mounting: Standard 35mm DIN rail
- Operating Temperature: -25°C to +70°C
- Wire Size: 0.2-2.5mm² (24-12 AWG)
Works With These Modules
- Analog Input: 140AVI03000
- Analog Input: 140ACI03000
Package Options
- Single Unit (PCE): 10.63″ x 7.09″ x 4.53″ (27x18x11.5cm)
- Single Unit Weight: 14.1 oz (400g)
- Bulk Pack (S04): 10 units per box
- Bulk Box Size: 23.62″ x 15.75″ x 11.81″ (60x40x30cm)
- Bulk Box Weight: 10.4 lb (4.7kg)
Shipping & Support
- Global Shipping: FedEx, UPS, DHL available
- Warranty: 12 months limited warranty
- Delivery Time: 1-3 business days express
Common Questions
- What fuse type does this block use? It uses special 0.063A fast-acting fuses.
- Can I use it with voltage inputs? Yes, it works with both voltage and current signals.
- Does it support 4-wire sensors? Yes, each point has 4 terminals for complex setups.
- Is shield connection available? Yes, each channel has a dedicated shield terminal.
- What tools do I need for wiring? Standard screwdriver for captive clamp terminals.
