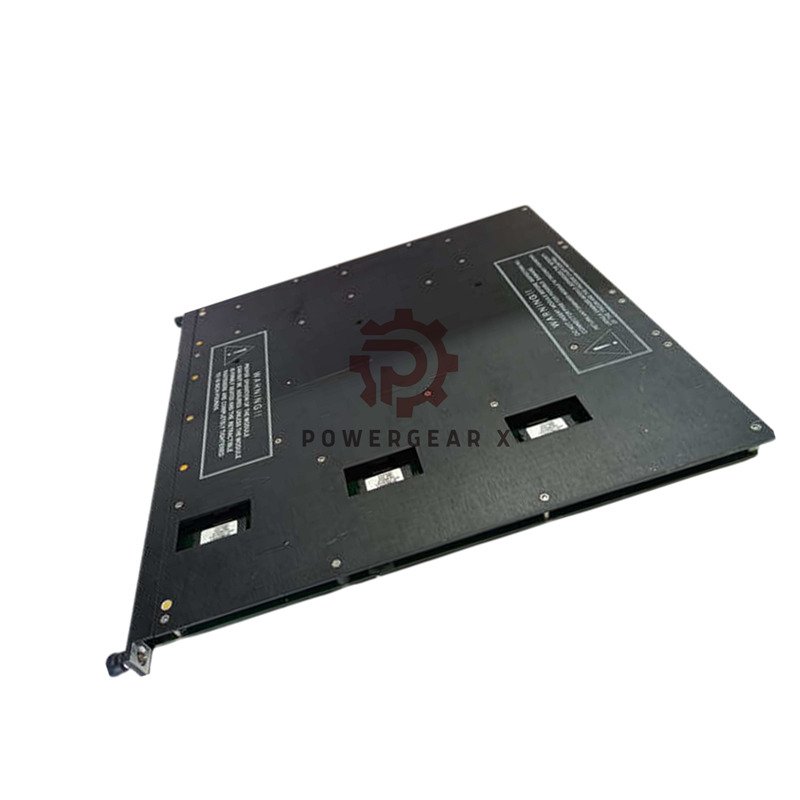

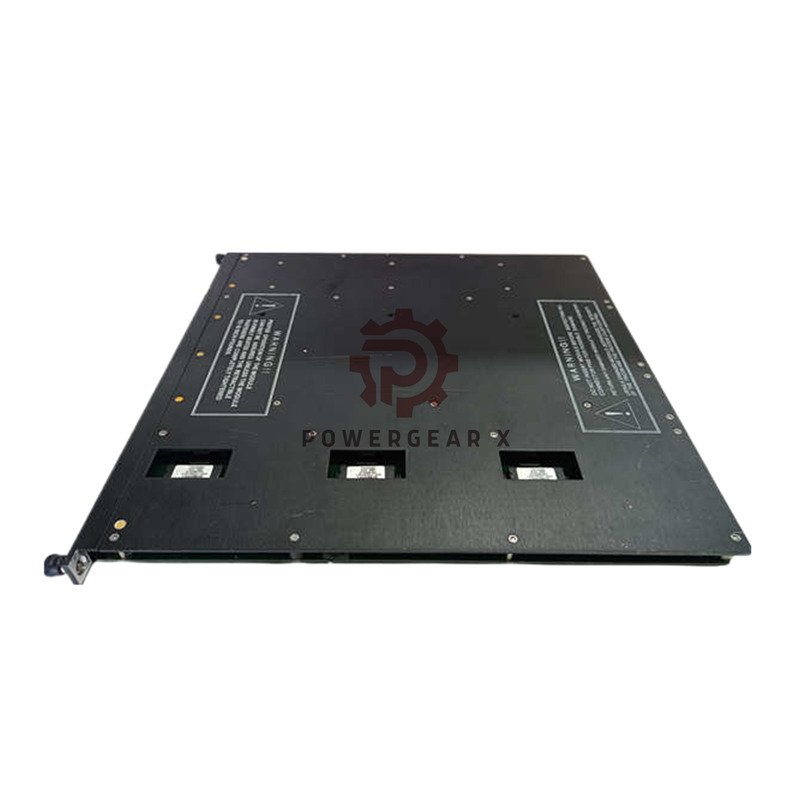

Triconex 3805E: Reliable 8-Channel Analog Output Module
The Triconex 3805E delivers precise control for industrial systems. This Triple Modular Redundant (TMR) module outputs 4-20mA signals. It ensures safety and reliability in critical processes. The Triconex 3805E offers fast response and high accuracy.
Main Features & Benefits
- 8 output channels for multiple control loops
- TMR architecture for maximum system reliability
- Fast fault switching under 10 milliseconds
- High accuracy better than 0.25% of full scale
- Wide temperature range from 0° to 60° C
- Over-range protection up to +42.5 VDC continuous
- Easy status monitoring with LED indicators
Technical Specifications
- Product Type: Analog Output Module
- Model Number: 3805E
- Output Range: 4-20 mA (+6% overrange)
- Resolution: 12 bits for precise control
- Loop Power: +24 VDC nominal, +42.5 VDC max
- Load Capacity: Up to 1000 Ohms
- Color Code: Pea Green for easy identification
- Warranty: 12 months quality guarantee
Output Load Specifications
- 250 Ohm load: Requires >20 VDC loop power
- 500 Ohm load: Requires >25 VDC loop power
- 750 Ohm load: Requires >30 VDC loop power
- 1000 Ohm load: Requires >35 VDC loop power
Shipping & Support Information
- Global delivery via FedEx, UPS, and DHL
- Quick shipping from our stock
- Professional technical support team
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
Frequently Asked Questions
- What does TMR mean for this module?
- TMR means Triple Modular Redundant. It uses three separate circuits for safety.
- Can this module drive long cable runs?
- Yes, it supports loads up to 1000 Ohms. This allows long distance signal transmission.
- How quickly does the module respond to faults?
- It switches on leg failure in under 10 milliseconds. This ensures continuous operation.
- What power supply is needed for the outputs?
- The module needs +24 VDC nominal power. It can handle up to +42.5 VDC maximum.
- How do I monitor the module’s status?
- LED indicators show PASS, FAULT, ACTIVE, LOAD, and PWR status. This helps quick troubleshooting.
