Introduction

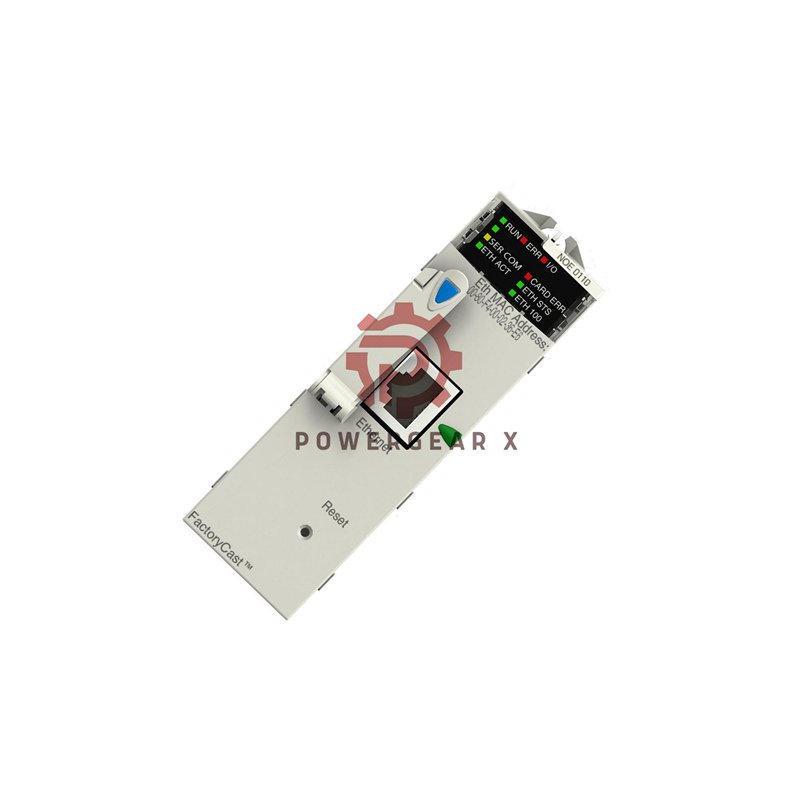

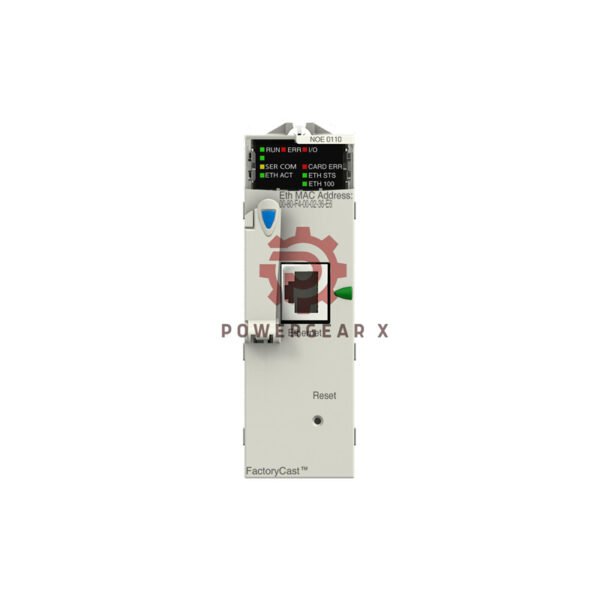

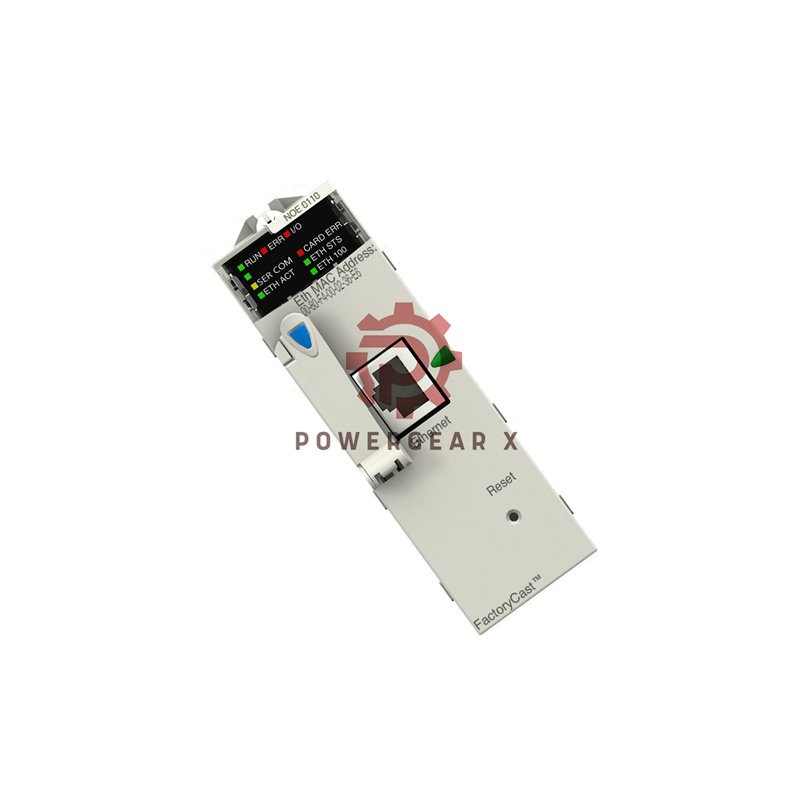

The Schneider Electric Modicon M340 BMXNOE0110H Ethernet TCP/IP network module delivers reliable industrial connectivity. This Transparent Ready module supports severe environments with features like a web server and Modbus TCP. Its robust design ensures high performance in demanding automation applications.
Technical Specifications
- Brand: Schneider Electric
- Model: BMXNOE0110H (full suffix: BMXNOE0110H)
- Ethernet Port: 10BASE-T/100BASE-TX with RJ45 connector
- Memory: 16,000 kB internal RAM and included Flash memory card (BMXRWSC016M)
- Current Consumption: 90 mA at 24 V DC from the rack power supply
- Operating Temperature: -25 to 70 °C (-13 to 158 °F)
- Protection Rating: IP20 for basic dust and contact safety
- LED Indicators: ETH ACT, RUN, ETH STS, ETH 100, CARD ERR, and ERR status lights
Environmental Durability
- The module operates in -25 to 70°C temperatures with 10-95% humidity without condensation.
- It resists gases, dust, sand, salt, mold, and fungal spores per IEC 60721-3-3 standards.
- Certifications include ATEX zone 2/22 and IECEx zone 2/22 for hazardous locations.
- This unit meets UL, CSA, RCM, and EAC safety requirements for global use.
Installation and Packaging
- Install the module directly into the Modicon M340 rack for internal power supply.
- The package includes one BMXNOE0110H unit with a Flash memory card.
- Shipping options include FedEx, UPS, and DHL for fast delivery worldwide.
- Package dimensions are 12 x 11 x 5.5 cm (unit) and 40 x 30 x 15 cm (bulk pack of 15).
Frequently Asked Questions (FAQ)
- What Ethernet speeds does the module support?
It provides 10/100 Mbit/s auto-negotiation for flexible network integration. - Is this module suitable for harsh environments?
Yes, the conformal coating and wide temperature range ensure durability. - How do I reset the module?
Use the RESET push-button for a cold restart to restore default settings.
