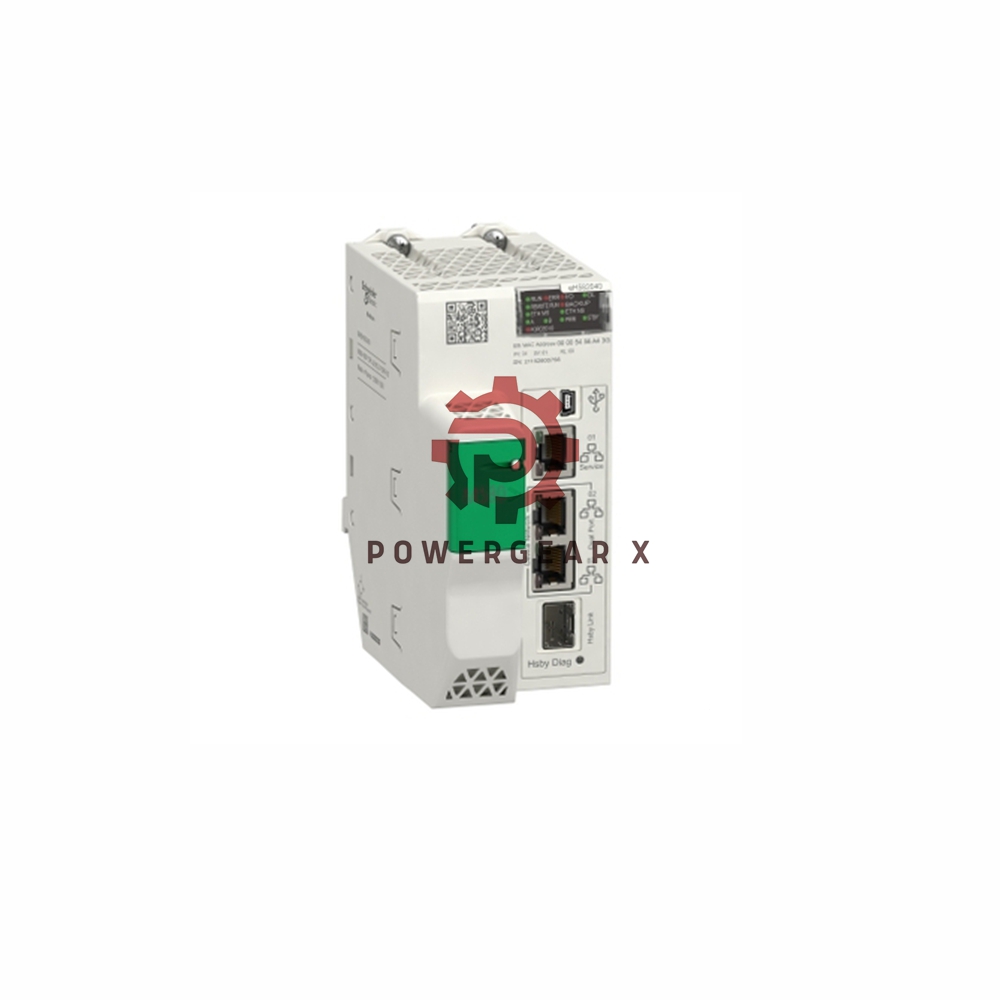

BMEH582040 Schneider Redundant Processor Modicon

Overview

The Schneider Electric Modicon M580 BMEH582040 is a powerful, flexible redundant processor module designed for process control and automation systems. Part of the Modicon M580 range, this processor offers exceptional capabilities with high-performance features, including Ethernet-based communications, distributed I/O management, and an expanded memory structure.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: BMEH582040
• Product Range: Modicon M580
• Number of Remote I/O Stations: 8 (2 racks per X80 remote drop)
• Control Channels: Programmable loops for process control tasks
• Integrated Connections:
  • 1 x Ethernet TCP/IP for service port
  • 2 x Ethernet TCP/IP for device networks
  • 1 x Ethernet for HSBY port
  • USB mini B for configuration
• Current Consumption: 270 mA at 24V DC
• MTBF Reliability: 650,000 hours
• Shock Resistance: 30 gn
• Vibration Resistance: 3 gn
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5-95% (non-condensing)
• IP Protection: IP20
• Directive Compliance: 2014/35/EU (Low Voltage), 2014/30/EU (EMC)

For more detailed information, please check official datasheet: Redundant processor module, Modicon M580
