Bently Nevada – Reverse Mount Probe 330906-02-12-10-02-05

Bently Nevada – Reverse Mount Probe

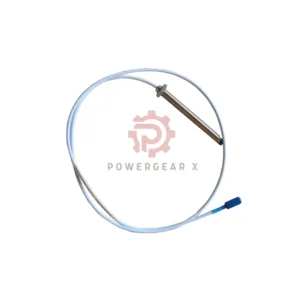

Optimized for industrial vibration analysis, this 330906-02-12-10-02-05 probe integrates 3/8-24 UNF threads and a 1.0-meter standard cable with a Miniature ClickLoc connector. Engineered to meet Multiple Agency Approvals (Option 05), it delivers reliable performance in hazardous zones. The compact design supports high-density installations in turbines, pumps, and compressors.

330906-02-12-10-02-05 Specifications

• Vibration Frequency Range: 5 Hz–12 kHz (±2 dB)
• Cable Bend Radius: 15 mm minimum (1,000+ cycles)
• Mounting Torque: 9–12 Nm (7–9 lb-ft)
• Transverse Sensitivity: <3% of axial output

Environmental Resilience

• Shock Survival: 100 g (11 ms half-sine)
• Chemical Resistance: MIL-STD-810G Method 504.3 (fluids)
• Thermal Cycling: -55°C to +150°C (-67°F to +302°F)

Weighing 14–150 g (0.5–5.3 oz), the probe includes factory-set calibration at 200 mV/mil. Compatible with Bently Nevada 3500/3300 systems for real-time diagnostics.
