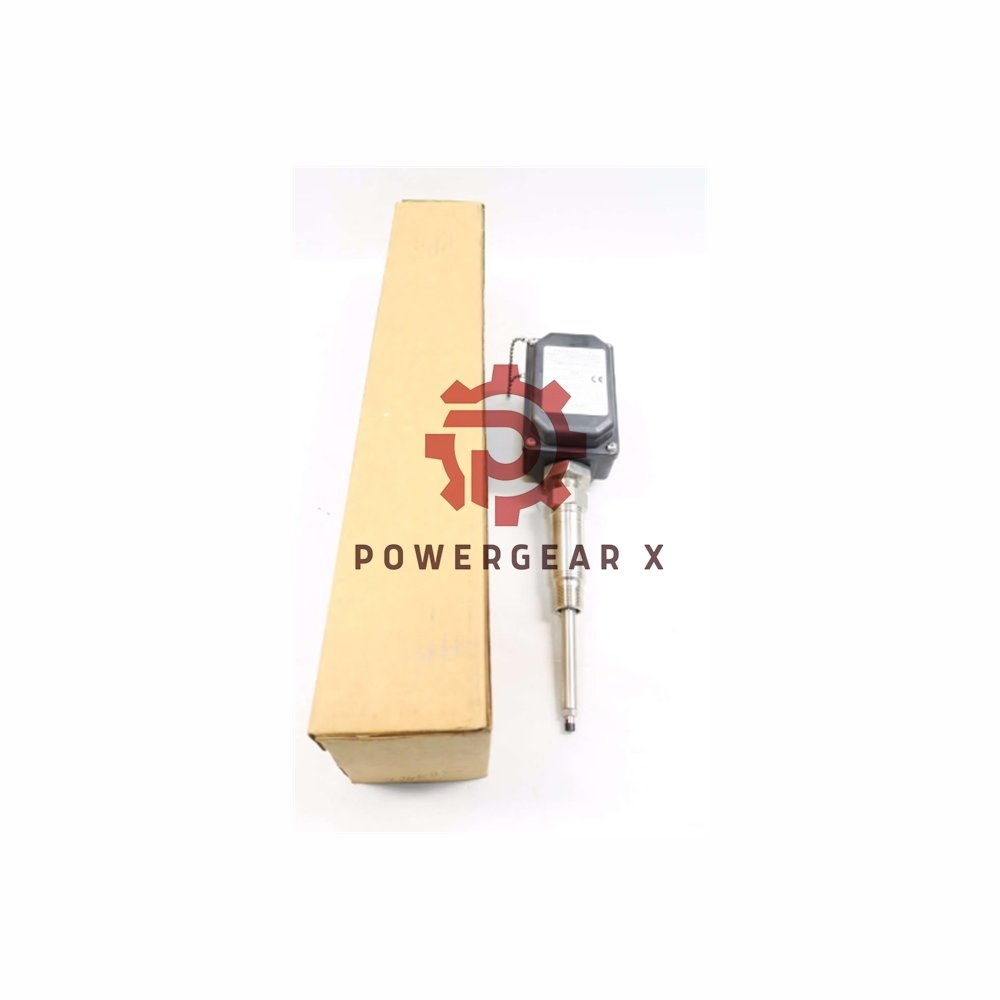

Bently Nevada PROXPAC XL 330881-16-00-060-01-02 Proximitor Transducer

Bently Nevada 330881-16-00-060-01-02 PROXPAC XL Overview

The 330881-16-00-060-01-02 from Bently Nevada is a high-precision proximity transducer for monitoring shaft vibration and displacement in rotating machinery.

Main Specifications

• Power: -17.5 to -26 Vdc, 12 mA max.
• Linear Range: 0.25–2.3 mm (80 mils).
• Scale Factor: 7.87 V/mm ±5%.
• Frequency Response: 0–10 kHz (+0, -3 dB).
• Temperature: -51°C to +177°C.
• Output Resistance: 50 Ω.
• Probe Cable: 1 m, 75 Ω triaxial FEP.
• Probe Penetration: 60 mm.
• Materials: PPS tip, AISI 304 stainless steel case.
• Weight: 1.44 kg typical.
• Recommended Gap: 1.27 mm.
• Target Min: 15.2 mm; Shaft Min: 50.8 mm.
• Max Cable Length: 305 m to monitor.

Model Options

• Model: 330881-16-00-060-01-02
• Series: 3300 XL / PROXPAC XL.
• Probe Option: 16 – 8 mm probe (no approvals).
• Standoff: 00 – none.
• Penetration: 060 – 60 mm.
• Fittings: 01 – one 3/4-14 NPT fitting, two plugs.
• Mount Thread: 02 – 3/4-14 NPT.

Installation

• Set gap to 1.27 mm for best accuracy.
• Torque retaining nut: 29.5 N·m; locknut: 39.3 N·m.
• Use shielded 3-conductor triax cable.
• Max cable length: 305 m.

Package Contents

• 1 × 330881-16-00-060-01-02 transducer.
• 1 × retaining nut and locknut.
• 2 × sealing plugs.
• 1 × 1 m triax cable.
• Installation guide included.
• Ships via FedEx / UPS / DHL.

FAQ

• Q: How long does setup take?
• A: Around 30 minutes with correct tools.
• Q: Can I extend the cable?
• A: Yes, up to 305 m with shielded cable.
• Q: How to ensure consistent readings?
• A: Check gap, tighten fittings, and inspect cables daily.

Contact

• Email: sales@powergearx.com
• WhatsApp: +86 18030005825
• Provide shaft size and installation details for a quote.
