Product details
Overview

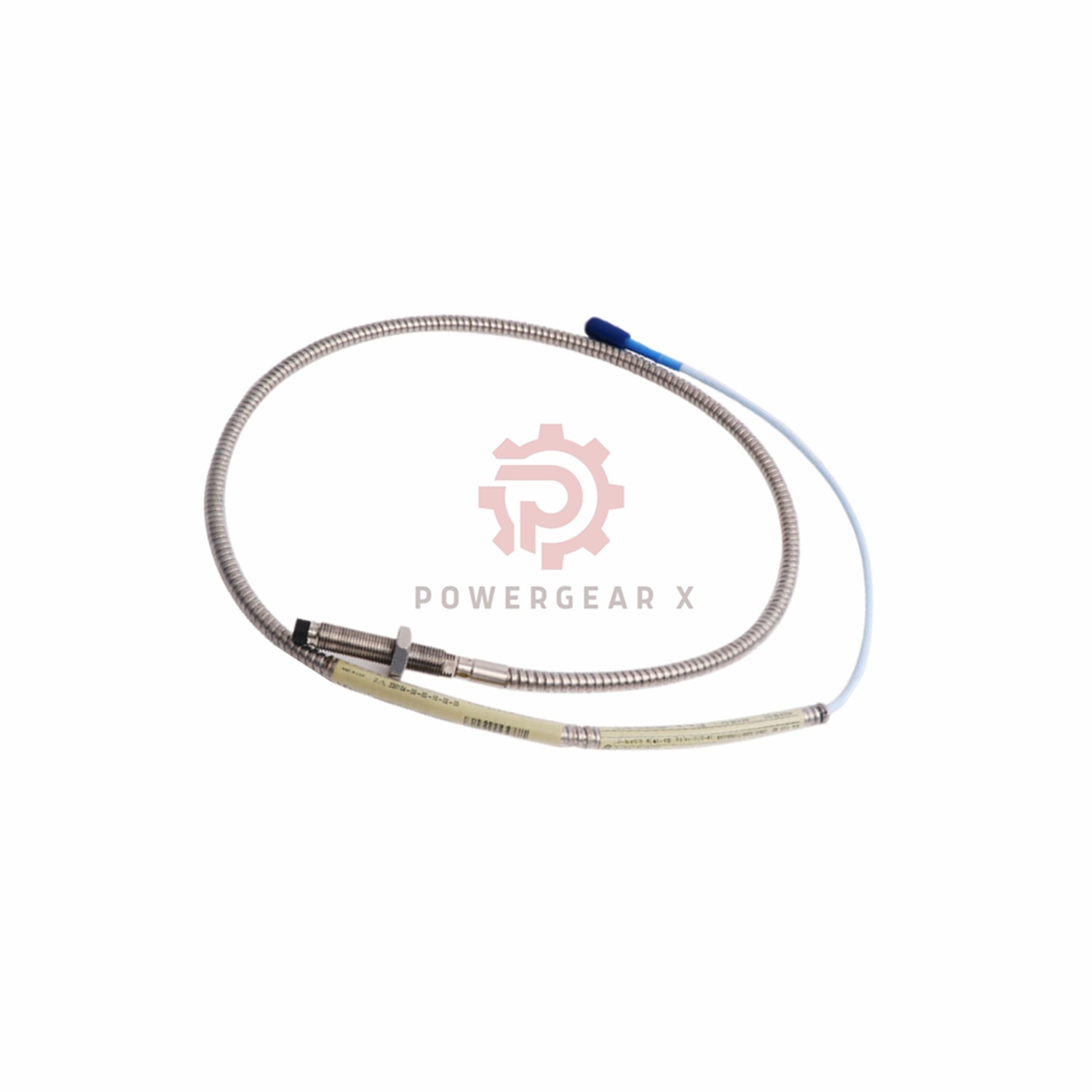

The Bently Nevada 330101-20-35-10-02-05 is a 3300 XL 8 mm probe without armor, manufactured in the U.S.A. It can be equipped with a Certificate of Origin. The probe and its extension cable have improvements over previous designs, featuring a patented TipLoc molding method and CableLoc design. An optional FluidLoc cable can prevent oil and other liquids from leaking through the cable interior.
Technical Specification
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330101-20-35-10-02-05 |
| Suffix Meaning | “20”: Unthreaded length of 2.0 in “35”: Overall case length of 3.5 in “10”: Total length of 1.0 meter (3.3 feet) “02”: Miniature coaxial ClickLoc connector with a standard cable “05”: CSA, ATEX, IECEx Approvals |
| Probe Resistance | For a 1.0 – meter probe, 7.59 ± 0.50 Ω |
| Extension Cable Capacitance | Typically 69.9 pF/m (21.3 pF/ft) |
| Recommended Gap | – 9 Vdc (approximately 1.27 mm or 50 mils) for radial vibration |
| Incremental Scale Factor | Varies by system length and temperature range, around 7.87 V/mm (200 mV/mil) with an error margin |
| Deviation from Best Fit Line | Less than ±0.025 mm (±1 mil) for 5 or 1 – meter standard systems and different values in other cases |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Weight | 323 g/m (11.4 oz) |
Contact Information
For any inquiries, please contact: sales@powergearx.com
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
