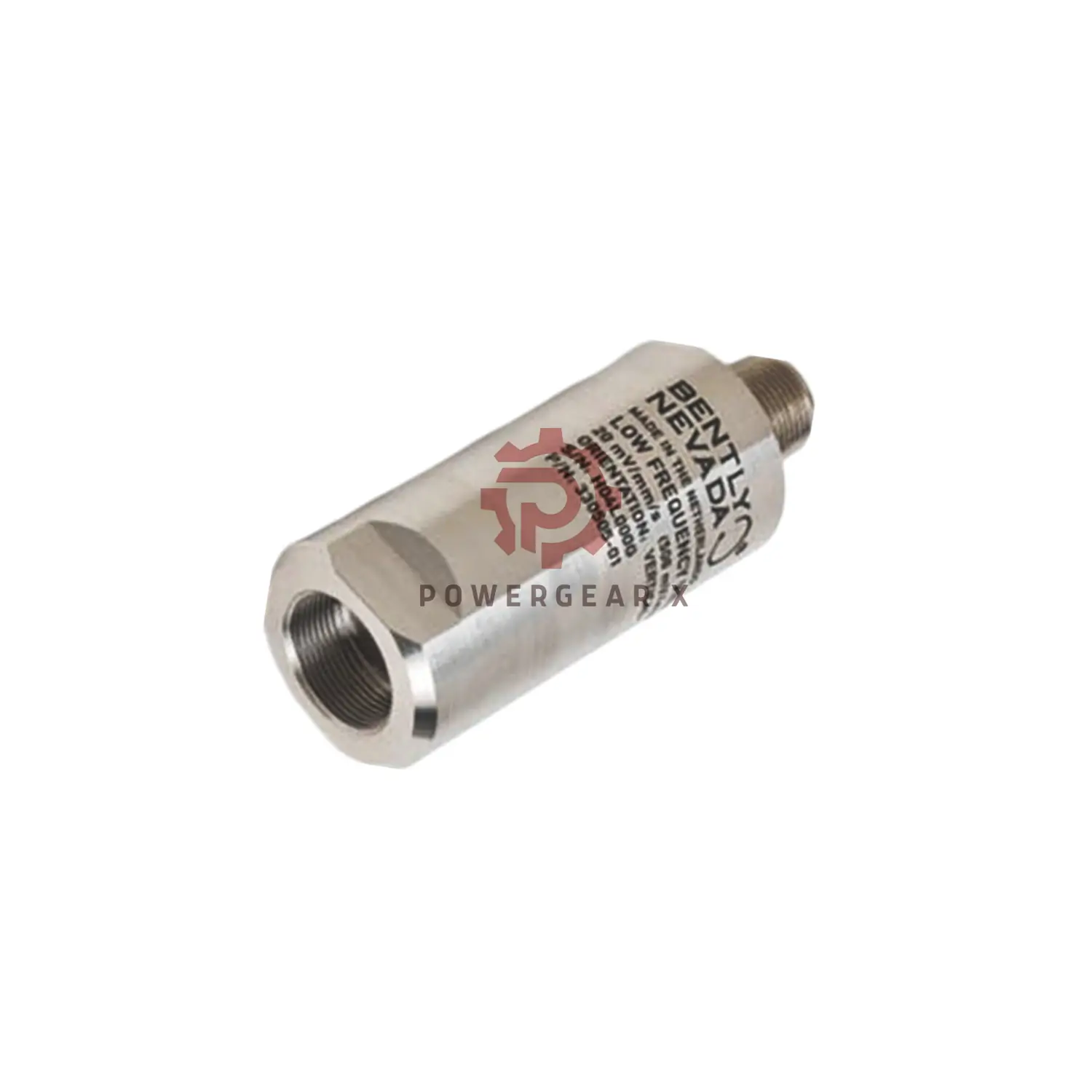

Bently Nevada Low Frequency Velocity Sensor 330505-01-02-04

Bently Nevada 330505-01-02-04 Low Frequency Velocity Sensor

Core Technical Data

• Range & Sensitivity: 102 mm/s (4 in/s) peak; 20 mV/mm/s ±10%
• Frequency Response: 0.5–1000 Hz ±3.0 dB; 1–200 Hz ±0.9 dB
• Output Signal: Bias Voltage -12 ±1 VDC
• Working Temperature: -40°C to +100°C (-40°F to +212°F)
• Shock Resistance: 981 m/s² (100g) peak
• Humidity: 100% non-submerged; hermetically sealed case

Installation Guide

• Thread: 3/8-24 UNF-2B with 1/4-20 UNC adapter
• Max torque: 46 kg·cm (40 in-lb)
• Mount with care to avoid damage

Compatibility

• Fits Bently Nevada 3500/46M monitoring system
• Connector: 2-pin MIL-C-5015, stainless steel, hermetic seal

Model Details

• 330505: Low Frequency Velocity Sensor
• -01: Mounting angle 0° ±10°
• -02: Internal thread 3/8-24 UNF-2B
• -04: Mounting adapter 1/4-20 UNC

Packaging List

• One 330505-01-02-04 sensor
• Factory sealed box
• No certificates included

Warranty

• 12-month manufacturer warranty
