Bently Nevada Low Frequency Velocity Sensor 330505-01-02-02

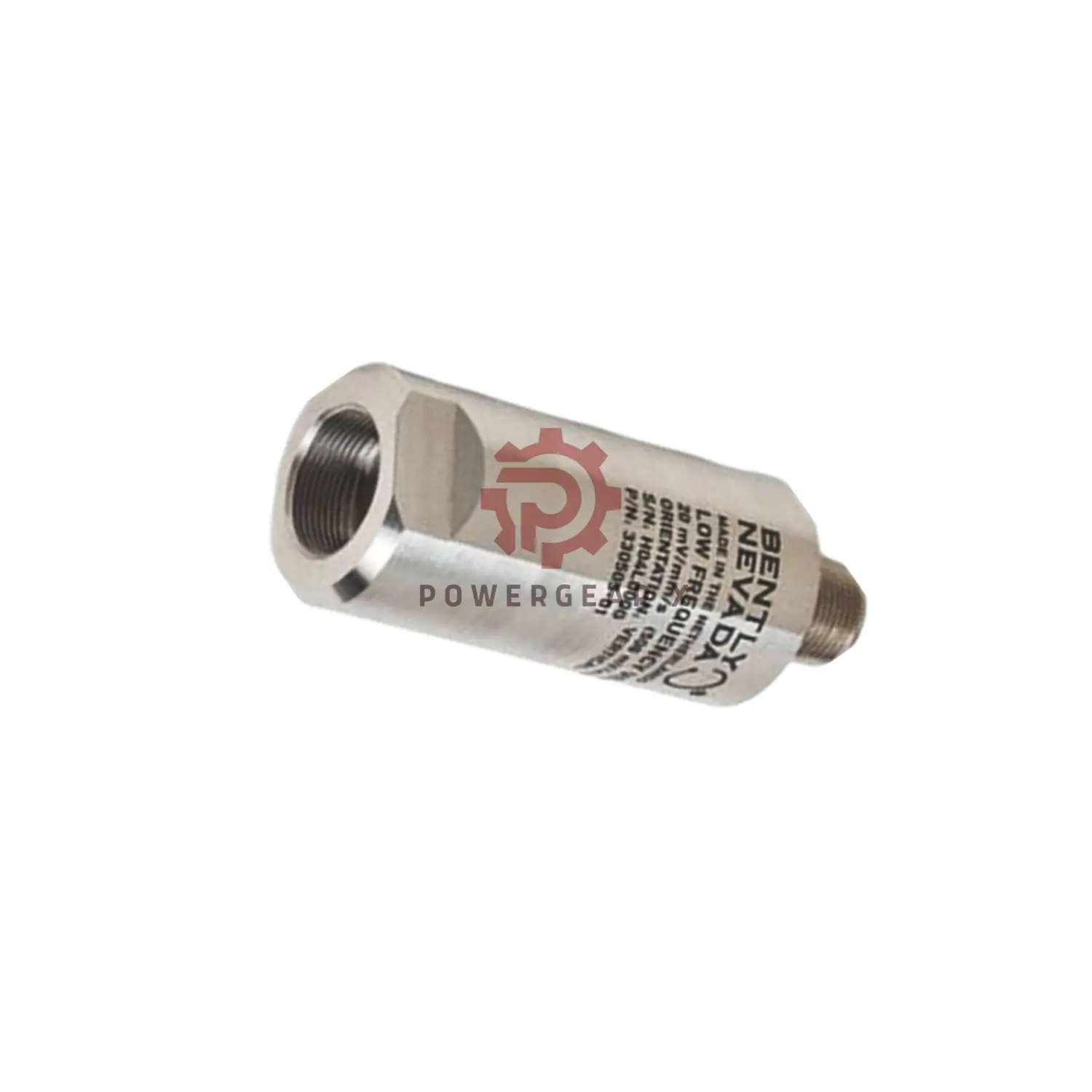

Bently Nevada 330505-01-02-02 Low Frequency Velocity Sensor

Overview

The 330505-01-02-02 sensor measures low-frequency vibrations. It helps find machine problems early. This reduces downtime and saves costs.

Key Specs

• Sensitivity: 20 mV/mm/s (508 mV/in/s) ±10%
• Frequency Range:
  • 0.5 to 1000 Hz ±3 dB
  • 1 to 200 Hz ±0.9 dB
• Max Speed: 102 mm/s (4 in/s) peak
• Linearity: ±3% up to max speed
• Output Voltage: -12 ±1 VDC bias
• Max Cable Length: 305 m (1000 ft) no signal loss with 3500/46M
• Shock Limit: 981 m/s² (100g)
• Temp Range: -40°C to +100°C (-40°F to +212°F)
• Humidity: Up to 100%, sealed case
• Weight: Less than 375 g (13.2 oz)
• Case: Stainless steel 300 series
• Connector: 2-pin MIL-C-5015, hermetically sealed
• Mounting Torque: Max 46 kg·cm (40 in-lb)
• Polarity: Pin A positive when velocity moves base to top

Model Details

• 330505 – Velocity Sensor
• -01 – Mount angle 0° ±10°
• -02 – Thread 3/8-24 UNF-2B
• -02 – Adapter M8 x 1

Shipping

• Ships via FedEx, UPS, DHL
• Express and standard delivery

Warranty

• 12-month factory warranty from shipment
