Bently Nevada Low Frequency Velocity Sensor 330505-01-02-01

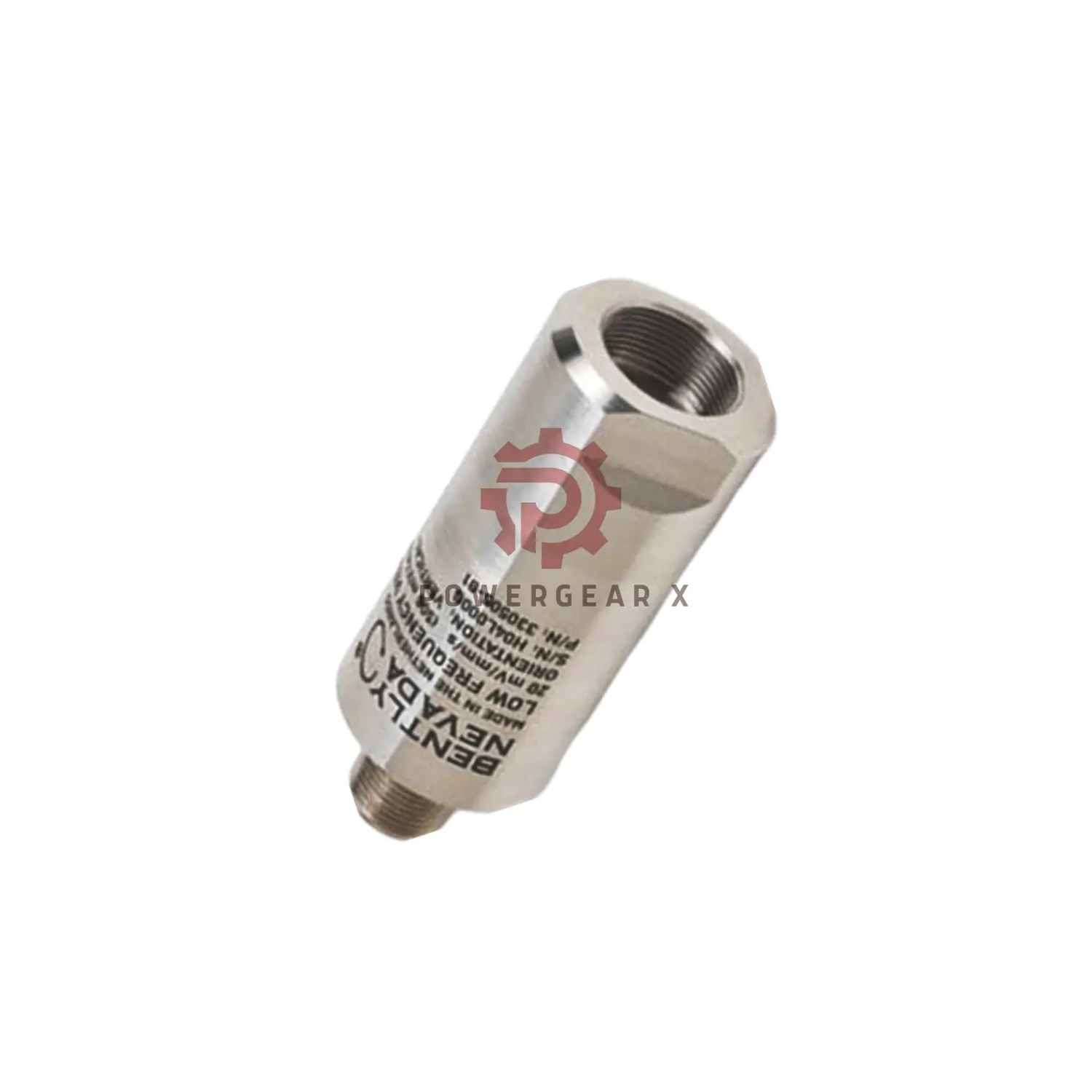

Bently Nevada 330505-01-02-01 Low Frequency Velocity Sensor

Product Summary

The 330505-01-02-01 sensor measures low-frequency vibrations in machines. It helps detect issues early to prevent costly failures in factories and plants.

Key Technical Data

• Sensitivity: 20 mV/mm/s (508 mV/in/s) ±10%
• Frequency Range:
  • 0.5 to 1000 Hz ±3 dB
  • 1 to 200 Hz ±0.9 dB
• Max Velocity: 102 mm/s (4 in/s) peak
• Linearity: ±3% up to max velocity
• Output Voltage: -12 ±1 VDC bias
• Max Cable Length: 305 meters (1000 feet) with no signal loss (with 3500/46M)
• Shock Resistance: 981 m/s² (100g) peak
• Operating Temperature: -40°C to +100°C (-40°F to +212°F)
• Humidity: Up to 100%, sealed case
• Mounting Torque: Max 46 kg·cm (40 in-lb)
• Polarity: Pin A positive when velocity is base to top

Model Number Details

• 330505: Low Frequency Velocity Sensor
• -01: Mounting angle 0° ±10°
• -02: Thread 3/8-24 UNF-2B
• -01: Adapter 1/2-20 UNF

Compatibility

• Compatible with Bently Nevada 3500/46M systems
• Fits vibration monitoring setups with MIL-C-5015 connectors

Packing List

• 1 x Bently Nevada 330505-01-02-01 sensor
• Factory sealed packaging

Shipping

• Ships via FedEx, UPS, DHL
• Express and standard shipping options available

Warranty

• 12-month manufacturer warranty
• Effective from shipment date
