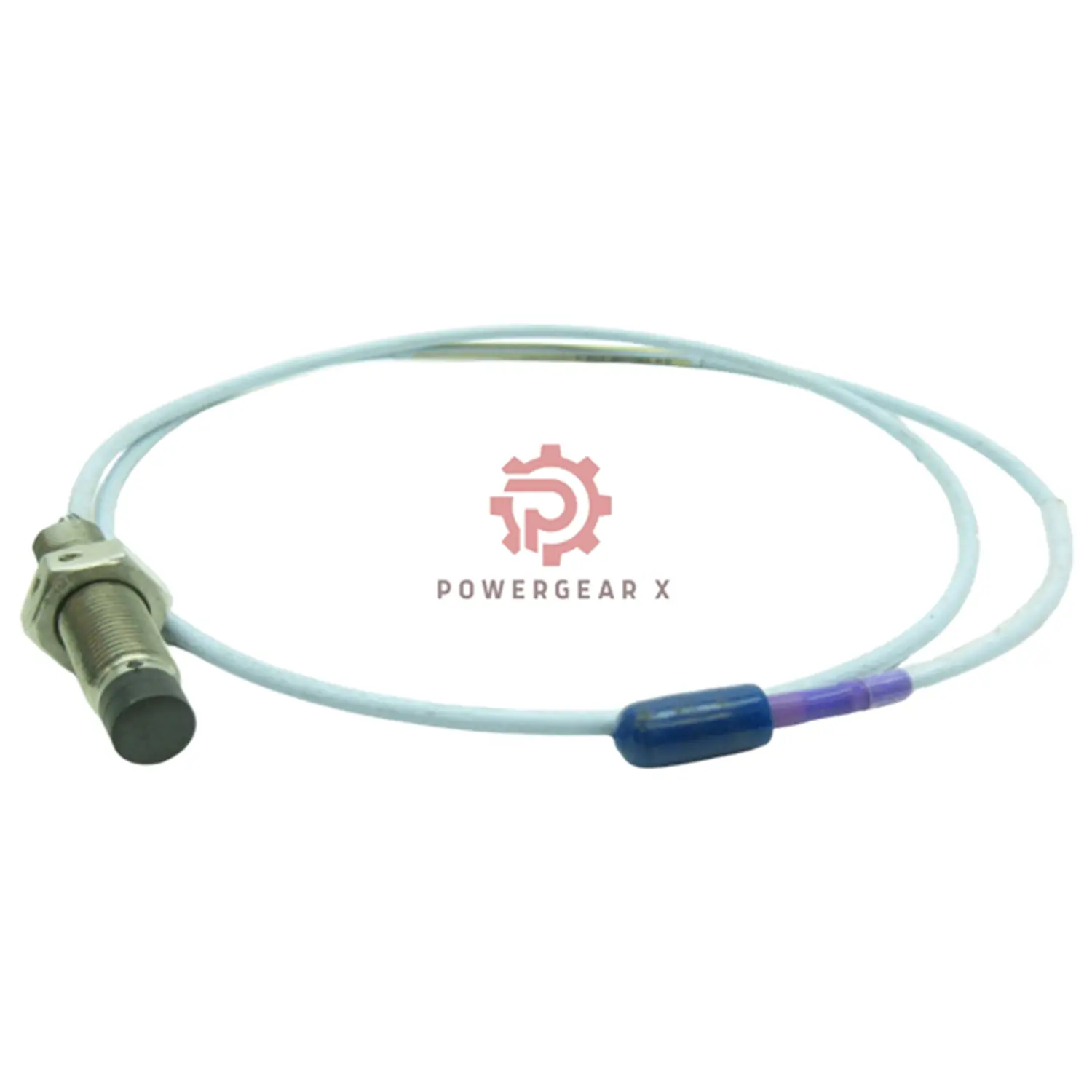

Bently Nevada 3300 XL High-Temperature Probe: Precision Vibration Monitoring

Optimize machinery health with the 330303-060-50-90-01-00 probe. Ideal for turbines, compressors, and high-heat environments up to 350°C. Ceramic tip ensures durability, while stainless steel armor resists harsh conditions.

Product Suffix Breakdown

• Model: 3300 XL High-Temperature Probe (Smooth Case)
• Full Suffix: 330303-060-50-90-01-00
  • 060: 6.0-inch case length
  • 50: 5.0m hardline cable
  • 90: 9.0m total length (incl. armored extension)
  • 01: Stainless steel armor
  • 00: No agency approval required

Technical Data

• Brand: Bently Nevada
• Model: 330303-060-50-90-01-00
• Measurement Range: 4.0 mm (160 mil)
• Sensitivity (ISF): 3.94 V/mm ±9.65%
• Linearity (DSL): < ±78 µm (±3.1 mils)
• Frequency Response: 0–6 kHz (±3 dB)
• Resolution: 0.5 mm increments
• Temp Range: -34°C to +350°C (-30°F to +662°F)
• Environmental Tolerance:
  • ISF stability within ±30% at 350°C
  • Stainless steel case & armored cable
• Probe Tip: Ceramic | Case: AISI 316L SST
• Weight: 117 g/m (cable) + 12 g/cm (case)

Installation & Compatibility

• Min Target Size: 30.5 mm (flat surface)
• Min Shaft Diameter: 152 mm
• Compatible Systems: Bently Nevada 3300 monitoring series

Setup & Maintenance

• Calibration-free installation
• Resistance check: 8.11 Ω (center to outer conductor)

Certifications & Packaging

• Made in USA
• Package Includes:
  • High-temperature probe
  • 9.0m armored extension cable
• Warranty: 12 months
• Shipping: FedEx, UPS, DHL

FAQ

• Q: Is calibration needed?
  A: No—pre-calibrated for plug-and-play use.
• Q: Max cable length?
  A: Supports up to 305m (1000 ft) without signal loss.
• Q: Safe for corrosive environments?
  A: Yes—316L stainless steel resists corrosion.
