Bently Nevada 3500/94M-07-12-01 VGA Module w/ Router Box & 20ft Cable

📟 Product snapshot: 3500/94M-07-12-01

This is the genuine Bently Nevada 3500/94M-07-12-01 VGA Display Module. It is a smart solution for remote monitoring. This version includes the Display Router Box and a 20‑foot (6m) connection cable. You get live machinery data without a built‑in screen. It fits a standard 3500 monitoring system rack. Made in U.S.A, it is built for continuous industrial use. This model comes with CSA Class I, Division 2 approval.

🔷 Model breakdown: 3500/94M-AA-BB-CC

• 3500/94M ── Base: VGA Display Module
• AA (Display Size & Mounting) : 07 = Router box included, no display
• BB (KVM/Cables) : 12 = Display Router Box cable, 20 ft (6m)
• CC (Agency Approval) : 01 = CSA/NRTL/C (Class I, Division 2)
• ▶ You are viewing the 3500/94M-07-12-01 – ideal for remote displays.

⚙️ Core technical data

• Power consumption: 4.6 watts max (module) + 4.7 watts max (Router Box)
• Router Box I/O: 24 Vdc in, VGA in/out, RS232 in/out, OK status LED
• Included cable: 20 ft (6m) for connection to a remote display (VGA + touch)
• Inputs/Outputs on module: VGA port, RS232, front port (24Vdc, VGA, touch)
• Status LEDs: OK (module health), TX/RX (communication activity)
• Temperature range (module): -20°C to 65°C operating; -40°C to 85°C storage
• Humidity: 95% non-condensing
• Weight total: 1.07 kg (module + I/O) ; Router box adds approx 0.5 kg

🧩 Hardware & rack requirements

• Monitor module: 1 full‑height front slot (241.3 x 24.4 x 241.8 mm)
• I/O module: 1 full‑height rear slot (241.3 x 24.4 x 99.1 mm)
• Required partner module: 3500/22 TDI (Transient Data Interface) – firmware Rev 1.71 or newer
• Required software: Rack Config Rev 5.6, Op Display Rev 2.21, Data Acquisition Rev 1.22
• Router Box power: 24 Vdc ±6% (4.7W). It mounts on shelf top.

✅ Certifications & compliance

• Agency approval (option 01): CSA/NRTL/C – Class I, Division 2 (North America)
• Electrical safety: CSA C22.2 61010-1, UL EN 61010-1, Directive 2014/35/EU
• EMC: EN 61000-6-2, EN 61000-6-4, Directive 2014/30/EU
• RoHS: Directive 2011/65/EU compliant
• FCC Part 15: Class A (industrial use)
• Router Box: UL cert for North America; Class I Div 2 receiver only

🔌 Compatibility & usage notes

• Works exclusively with the Bently Nevada 3500 monitoring system.
• Requires a 3500/22 TDI module in the same rack.
• The Router Box lets you place a display up to 20 ft away from the rack.
• Compatible with Advantech 15″ (FPM-8151) or any VGA monitor with RS232 touch.
• The 15″ display itself is IP65, but not certified for hazardous areas.

📦 Package list & warranty

• 1 x 3500/94M monitor module (front slot)
• 1 x I/O module (rear slot)
• 1 x Display Router Box
• 1 x 20 ft (6m) Router Box cable (VGA + touch)
• Inspection certificate & quick guide
• 12-month warranty against defects

🚚 Fast shipping options

• FedEx / UPS / DHL express worldwide – tracking provided
• Same‑day dispatch for orders before 2 PM (Mon-Fri)
• Typical delivery 2‑5 business days

❓ 5 professional FAQ (installation & selection)

• Can I use the 3500/94M-07-12-01 with any VGA monitor?
  Yes. The Router Box sends VGA video and RS232 touch signals. You can connect a standard industrial VGA monitor. For touch to work, the monitor must support RS232 touch.
• What is the maximum distance between Router Box and display?
  The included cable is 20 ft (6m). For longer distances you need a third‑party VGA extender (not included).
• Is the Router Box approved for Class I Div 2 areas?
  The Receiver part is approved for Class I Div 2. The Transmitter (inside Router Box) must stay in a safe area or a purged enclosure. Refer to the KVM notes in the datasheet.
• I need a 15″ display with Div 2 approval – which model fits?
  This 3500/94M-07-12-01 works with the Advantech 15″ (FPM-8151). The display itself is NOT Div 2 certified. For Div 2 you would need the 10″ display version (3500/94M-04‑00‑02) or place the 15″ in a safe area.
• The remote screen shows “no signal”. What should I check?
  First verify the Router Box has power (green OK LED). Then check that the 20‑ft cable is firmly connected at both ends. Finally ensure the 3500/94M I/O module is seated correctly in the rear slot. The cable is often accidentally loosened during cabinet work.

📞 Contact & support

• 📧 sales@powergearx.com – for quotes & expedite requests
• 📱 WhatsApp: +86 180 3000 5825 (24/7 technical sales)
• 🌐 Oiltech Controls Limited – global distribution partner

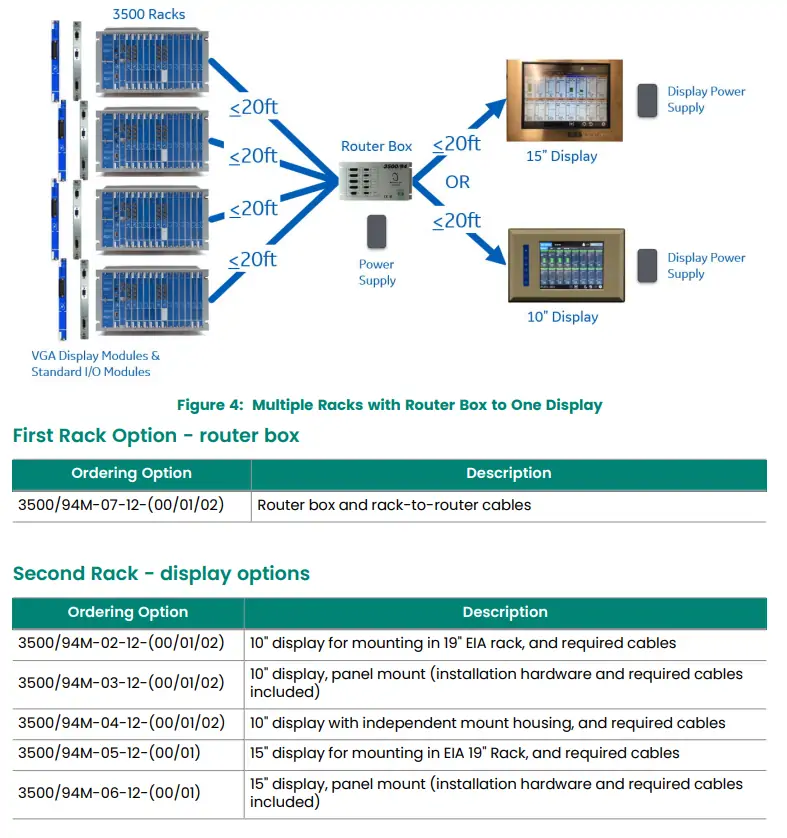

Multiple Racks with Router Box to One Display
