Product details

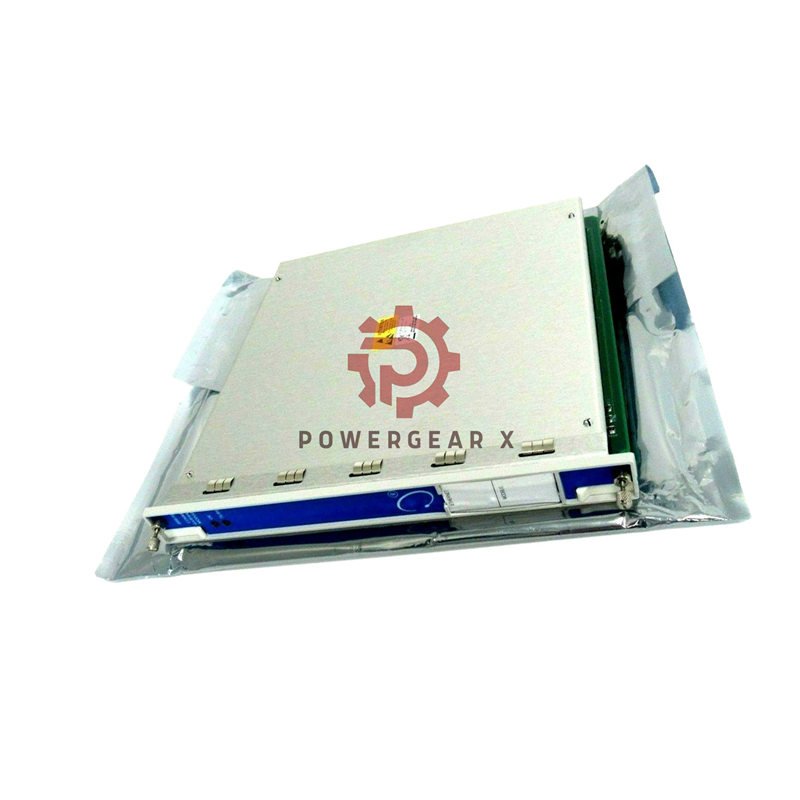

Bently Nevada Communication Gateway Module
The 3500/92-04-01-00 136180-01 communication gateway connects monitoring systems to networks. This American-made unit supports multiple industrial protocols. It ensures reliable data exchange in harsh environments.
Communication Capabilities
- Ethernet TCP/IP connectivity at 10Mbps speed
- Modbus RTU and Modbus/TCP protocol support
- RS485 serial communication interface
- RJ-45 Ethernet port for standard cabling
- High-speed internal rack data collection
- Real-time status and alarm data transmission
Technical Performance Specifications
- Part Number: 3500/92-04-01-00 136180-01
- Power Consumption: 5.0W typical, 5.6W maximum
- Data Update Rate: Less than 1 second for full rack
- Ethernet Speed: 10Mbps IEEE 802.3 compliant
- Protocol Support: BNC Host, Modbus RTU/TCP
- Memory Configuration: Low memory option
Physical Dimensions & Installation
- Main Board: 241mm x 24.4mm x 242mm compact size
- Main Board Weight: 0.82 kg (1.8 lb) lightweight
- I/O Module: 241mm x 24.4mm x 99.1mm standard
- Total Weight: 1.26 kg complete unit
- Rack Space: 1 full-height front slot required
- Mounting: Standard 3500 series rack compatible
Environmental Durability
- Operating Temperature: -30°C to +65°C wide range
- Storage Temperature: -40°C to +85°C for harsh conditions
- Humidity Rating: 95% non-condensing for damp areas
- Industrial Grade: Built for tough factory environments
- Reliable Operation: Consistent performance in extremes
Data Collection Features
- Collects measured values with time stamps
- Monitors module statuses and alarm conditions
- Supports multiple data types from various modules
- High-speed internal network communication
- Configurable data collection rates
- Compatible with 3500 rack configuration
Protocol Support & Connectivity
- Ethernet TCP/IP for network integration
- Modbus RTU for serial communication
- Modbus/TCP for Ethernet-based systems
- RS485 interface for industrial networks
- BNC Host Protocol for software communication
- RJ-45 connector for standard Ethernet cables
Safety Certifications & Compliance
- FCC Part 15 Rules for electromagnetic compatibility
- EMC Directive 2014/30/EU European standards
- Electrical Safety: EN 61010-1 and LV Directive 2014/35/EU
- RoHS Compliance: Directive 2011/65/EU environmental
- Maritime Approvals: DNV GL and ABS classification
- Industrial Standards: EN 61000-6-2/4 for harsh environments
Ordering & Delivery Information
- Manufacturer: Bently Nevada, Made in USA
- Product Number: 136180-01 Communication Gateway
- I/O Module: 04 – Ethernet/RS485 Modbus interface
- Memory Type: 01 – Low memory configuration
- Condition: New original factory packaging
- Warranty: 12 months comprehensive coverage
- Shipping: FedEx, UPS, DHL express options
- Delivery: Global service with tracking included
Technical Communication Questions
- What protocols does this gateway support?
It supports Ethernet TCP/IP, Modbus RTU, and Modbus/TCP protocols. - How fast does it update data from the rack?
It updates all module data in less than 1 second maximum. - What is the power consumption of this unit?
Typical 5.0W with Modbus RS232, 5.6W with RS485 module. - What temperature range does it operate in?
It functions from -30°C to +65°C in industrial conditions. - What type of Ethernet connection does it use?
RJ-45 connector for 10BASE-T Ethernet cabling at 10Mbps.
