Bently Nevada 3500/61-03-02 Temperature Monitor | High Accuracy Industrial Module

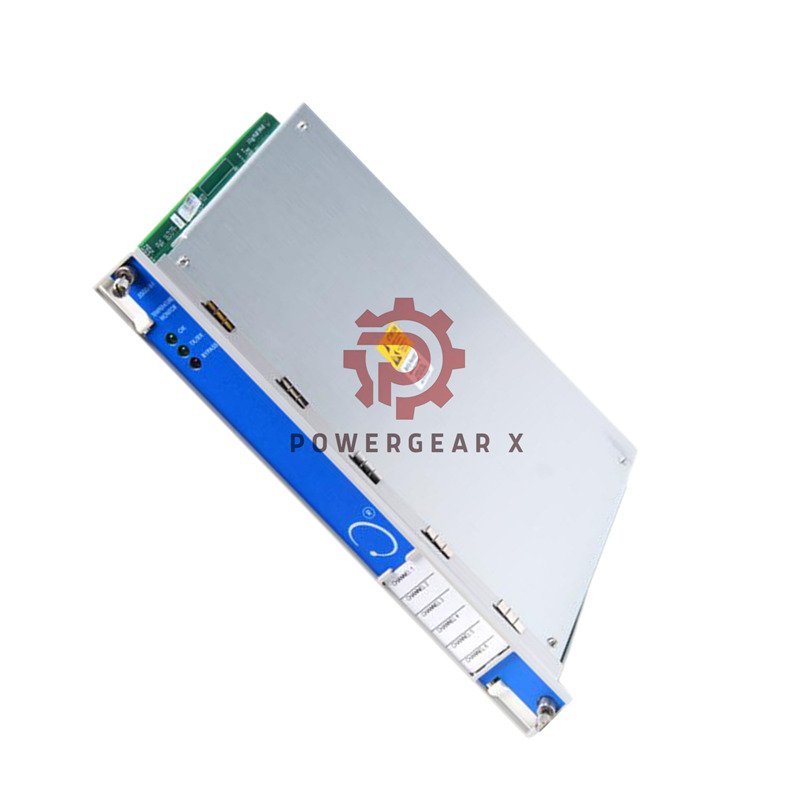

Bently Nevada 3500/61-03-02 Temperature Monitor

• Manufacturer: Bently Nevada
• Model: 3500/61-03-02
• Product Type: Temperature Monitor with Recorder Outputs
• Made in: U.S.A
• Warranty: 12 Months Factory Warranty
• Shipping: FedEx, UPS, DHL worldwide

Suffix Breakdown:

• 03 = TC Isolated I/O Module Internal Terminations
• 02 = ATEX / IECEx / CSA (Class 1, Zone 2)

Key Technical Features

• Accepts 1–6 RTD or TC transducer signals
• Input impedance: 10 MΩ per lead
• Power consumption: 9 W nominal
• System isolation: 500 Vdc | Channel isolation: 250 Vdc
• Recorder output: +4 to +20 mA, load up to 600 Ω
• Operating temperature: -30°C to +65°C (-22°F to +150°F)
• Storage temperature: -40°C to +85°C (-40°F to +185°F)
• Resolution: 1°C / 1°F | Accuracy: ±1°C at 25°C
• RTD current: 925 ±15 µA @ 25°C per channel
• Front panel LEDs: OK, TX/RX, BYPASS indicators
• Alarm setup: Alert/Danger, 0–100% adjustable via software
• Full-scale field configurable, no calibration needed

Physical Details

• Monitor size: 241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in)
• I/O Module size: 241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in)
• Weight: 0.91 kg (Monitor), 0.45 kg (I/O Module)
• Rack requirement: 1 full-height front + 1 full-height rear slot

Product Highlights

• Accurate multi-channel temperature measurement
• High isolation for safety and system protection
• Easy software configuration and alarm setup
• Durable industrial-grade design, made in the USA
• Ideal for critical process temperature monitoring

Contact Information

• Inquiries: sales@powergearx.com
• WhatsApp: +86 18030005825

FAQ

• What type of sensors can this monitor support?
  It supports Type E, J, K, T thermocouples and platinum, nickel, and copper RTDs.
• Can it handle both RTD and TC inputs in one system?
  Yes, up to six channels can be mixed as required.
• How are alarms configured?
  All alarms are software-adjustable with alert and danger setpoints and programmable delay times.
• Is the system isolated for field faults?
  Yes, isolation up to 500 Vdc protects against wiring or field faults.
• Any installation tips from field use?
  Keep ambient below +65°C for full TC range and ensure proper grounding for stable readings.
