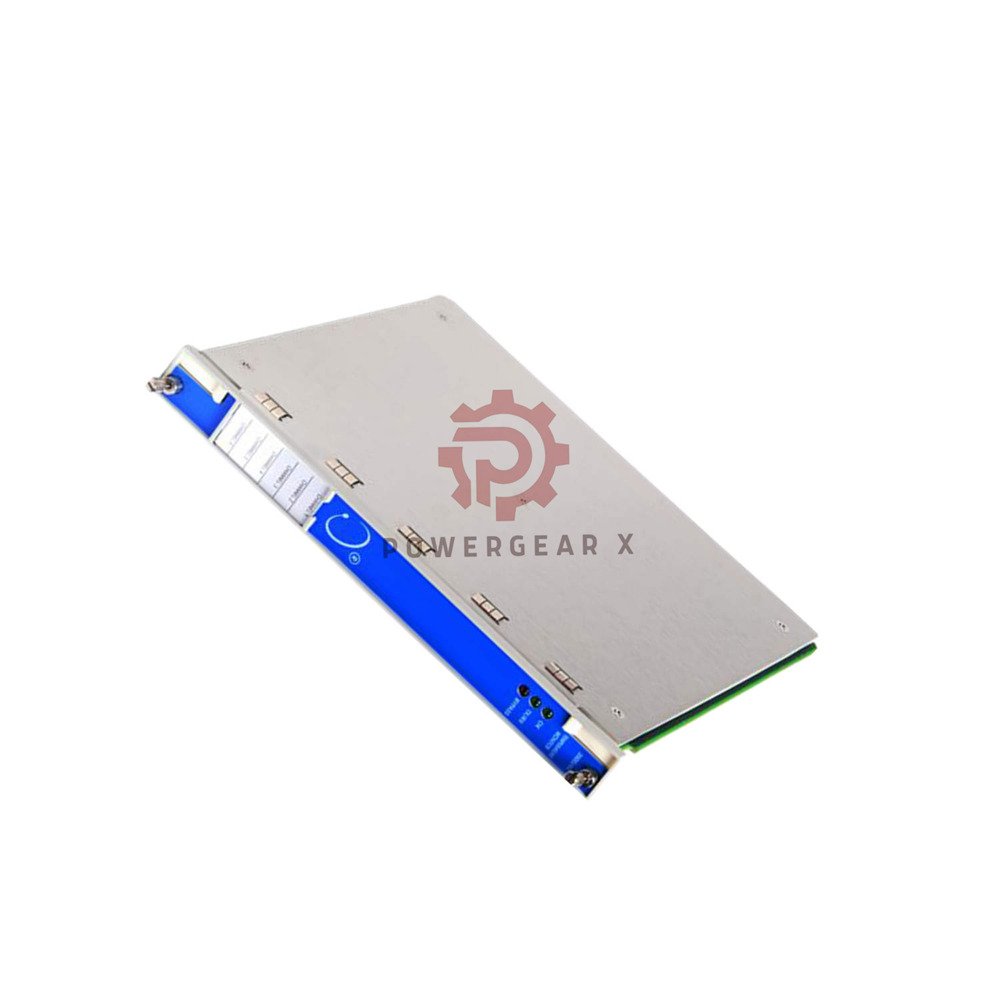

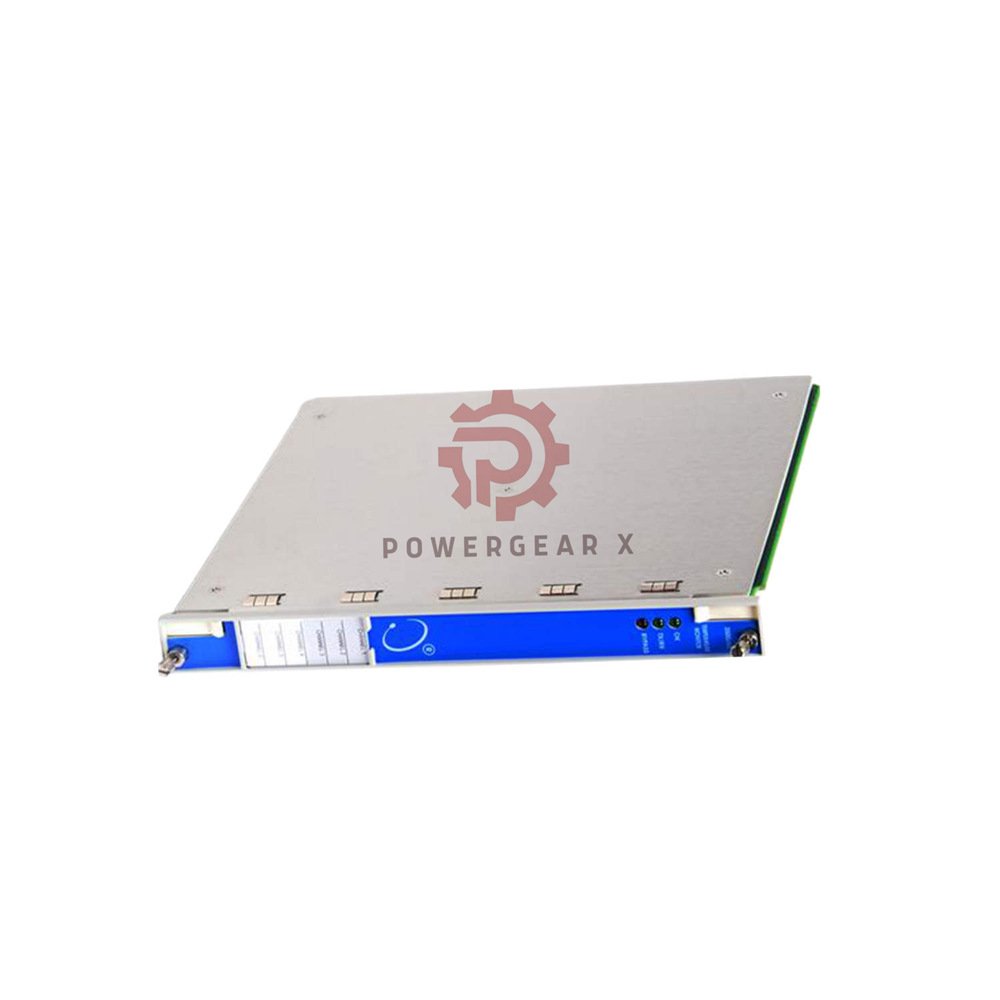

Bently Nevada 3500/60-01-01 Temperature Monitor Module

Product Overview

• Brand: Bently Nevada
• Model: 3500/60-01-01
• Series: 3500 Series
• Module Type: Temperature Monitor
• Origin: Made in U.S.A

• 3500/60 monitors up to six temperature inputs.
• It supports RTD and thermocouple sensors.
• It delivers stable and accurate measurement.
• It fits into one full-height rack slot.
• It works inside the Bently Nevada 3500 protection system.
• Designed for critical machinery protection.

Configuration Breakdown

• 3500/60-AA-BB
• A – I/O Module Type
  • 01 = RTD/TC Non-isolated I/O Module, Internal Termination
• B – Agency Approval
  • 01 = CSA/NRTL/C, Class 1 Div 2

Technical Specifications

• Brand: Bently Nevada
• Model: 3500/60-01-01
• Input Channels: 1 to 6 RTD or TC
• Input Impedance: 10 MΩ per lead
• Power Consumption: 7 W nominal
• Recorder Output: 4–20 mA per channel
• RTD Current Source: 925 ±15 µA at 25°C
• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +85°C
• Communication: Rack internal TX/RX
• LED Indicators: OK, TX/RX, Bypass
• EMI Resistance: Industrial rack-level shielding
• Environmental Rating: Industrial control room use

• Thermocouple Ranges
• Type E: -100°C to +1000°C
• Type J: -18°C to +760°C
• Type K: -18°C to +1370°C
• Type T: -160°C to +400°C

• RTD Ranges
• 100Ω Platinum α=0.00385: -200°C to +850°C
• 100Ω Platinum α=0.00392: -200°C to +700°C
• 120Ω Nickel: -80°C to +260°C
• 10Ω Copper: -100°C to +260°C

Physical Data

• Monitor Size: 241.3 × 24.4 × 241.8 mm
• Monitor Weight: 0.91 kg
• I/O Module Depth: 99.1 mm
• Internal Barrier Depth: 163.1 mm
• Rack Space: 1 front slot + 1 rear slot

Core Capabilities

• Wide temperature measurement range.
• High input impedance for signal stability.
• Independent 4–20 mA outputs.
• Works with multiple sensor types.
• Bypass mode for safe maintenance.
• Short circuit protection on outputs.

Installation Guide

• Install module in one full-height rack slot.
• Insert matching I/O module at rear.
• Connect RTD or TC leads correctly.
• Check grounding before power-up.
• Verify channel configuration via rack system.

Commissioning & Maintenance

• Check LED status after startup.
• Confirm 4–20 mA output with loop tester.
• Use Bypass mode during sensor replacement.
• Inspect terminal tightness yearly.
• No field calibration required in normal use.

Compatibility

• Compatible with Bently Nevada 3500 racks.
• Works with standard industrial RTD and TC sensors.
• Supports internal or barrier I/O modules.

Certification

• CSA/NRTL/C Class 1 Div 2 approved.
• Suitable for hazardous locations.

Typical Applications

• Steam turbine temperature monitoring.
• Compressor bearing temperature tracking.
• Generator stator thermal protection.
• Oil and gas process equipment.
• Power plant auxiliary systems.

Diagnostic Features

• Sensor open or short detection.
• Channel alarm processing inside rack.
• Communication monitoring via TX/RX LED.
• Continuous health self-check.

Packing List

• 1 × 3500/60-01-01 Monitor Module
• 1 × Matching I/O Module
• Factory packaging
• User documentation

Warranty & Shipping

• 12 Months Warranty
• Brand new and original
• Fast delivery via FedEx, UPS, DHL

FAQ

• How many sensors can this module handle?
• It supports up to six RTD or thermocouple inputs.
• Can I mix RTD and thermocouple inputs?
• Yes, but configure each channel correctly.
• Is it suitable for hazardous areas?
• Yes, it meets CSA Class 1 Div 2.
• How do I choose between RTD and TC?
• Use RTD for high accuracy at low temperature.
• Use TC for wider high temperature range.
• What should I check before ordering?
• Confirm rack type and slot availability.
• Verify sensor type and temperature range.
• Check if barrier I/O is required.
• Does output failure affect monitoring?
• No, short circuit on recorder does not stop monitoring.
