Product details
Product Identity
- Brand: Bently Nevada

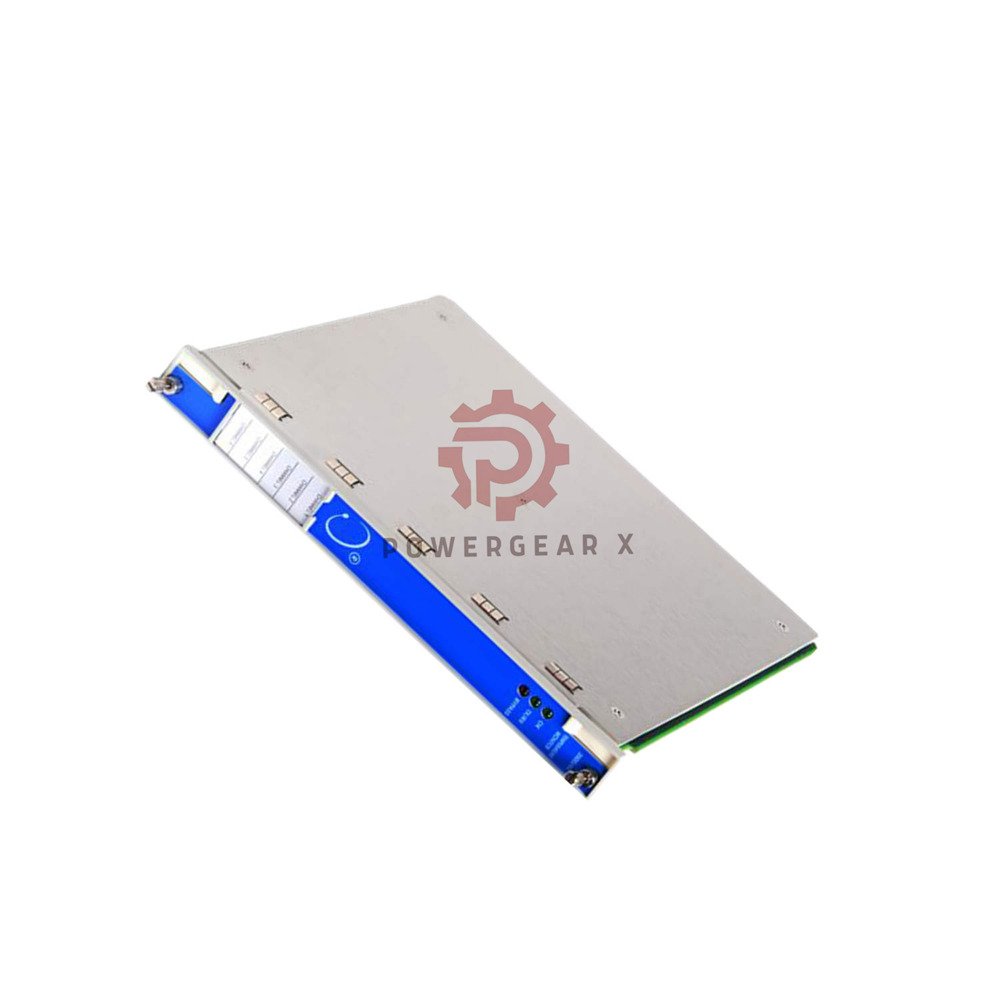

- Model: 3500/60-01-00
- Series: 3500/60
- Type: RTD / TC Temperature Monitor
- Made in U.S.A
The 3500/60 module measures critical machine temperature.
It accepts RTD and thermocouple inputs. It protects turbines, compressors, and generators.
This unit offers stable signal reading.
It supports up to six channels.
It delivers precise 4–20 mA output.
Model Structure
- 3500/60-AA-BB
- AA – I/O Type
- 01
- RTD / TC Non-Isolated I/O
- Internal Terminations
- 01
- BB – Agency Approval
- 00
- No special approval
- 00
- AA – I/O Type
Input Capability
- 1 to 6 RTD or TC signals
- Input impedance 10 MΩ per lead
- RTD current source 925 µA ±15 µA
- Cold junction accuracy ±1°C
Supported Sensors
- Type E, J, K, T thermocouples
- 100 Ω platinum RTD
- 120 Ω nickel RTD
- 10 Ω copper RTD
- 3-wire and 4-wire wiring
Output and Indication
- 4–20 mA per channel
- Load range 0–600 Ω
- OK LED status
- TX/RX communication LED
- Bypass mode LED
Accuracy and Resolution
- Standard accuracy ±3°C at 25°C
- Best configuration ±1°C at 25°C
- 10 Ω copper RTD resolution 1°C or 1°F
- Alarm accuracy within 0.13%
Alarm Features
- Alert and Danger levels programmable
- Setpoint range 0–100% full scale
- Alert delay 1–60 seconds
- Danger delay 1–60 seconds
- Supports under and over alarms
Environmental Limits
- Operating range -30°C to +65°C
- Barrier version 0°C to +65°C
- Storage range -40°C to +85°C
Mechanical Details
- Main module size 241.3 × 24.4 × 241.8 mm
- Main module weight 0.91 kg
- I/O module requires one rear slot
- Monitor requires one front slot
Professional FAQ
- How many temperature points can one module read?
It reads up to six channels.
Each channel works independently.
- Which sensor should I choose?
Use RTD for high accuracy.
Use thermocouple for wide range.
Check your site temperature range first.
- Can I use barrier modules?
Yes.
Barrier versions limit some temperature ranges.
Confirm hazardous area needs before order.
- What is the warranty policy?
We provide 12 months warranty.
All units are tested before shipment.
- How will the product be shipped?
We ship by FedEx, UPS, or DHL.
We provide tracking details.
Packing is safe for export.
