Product details

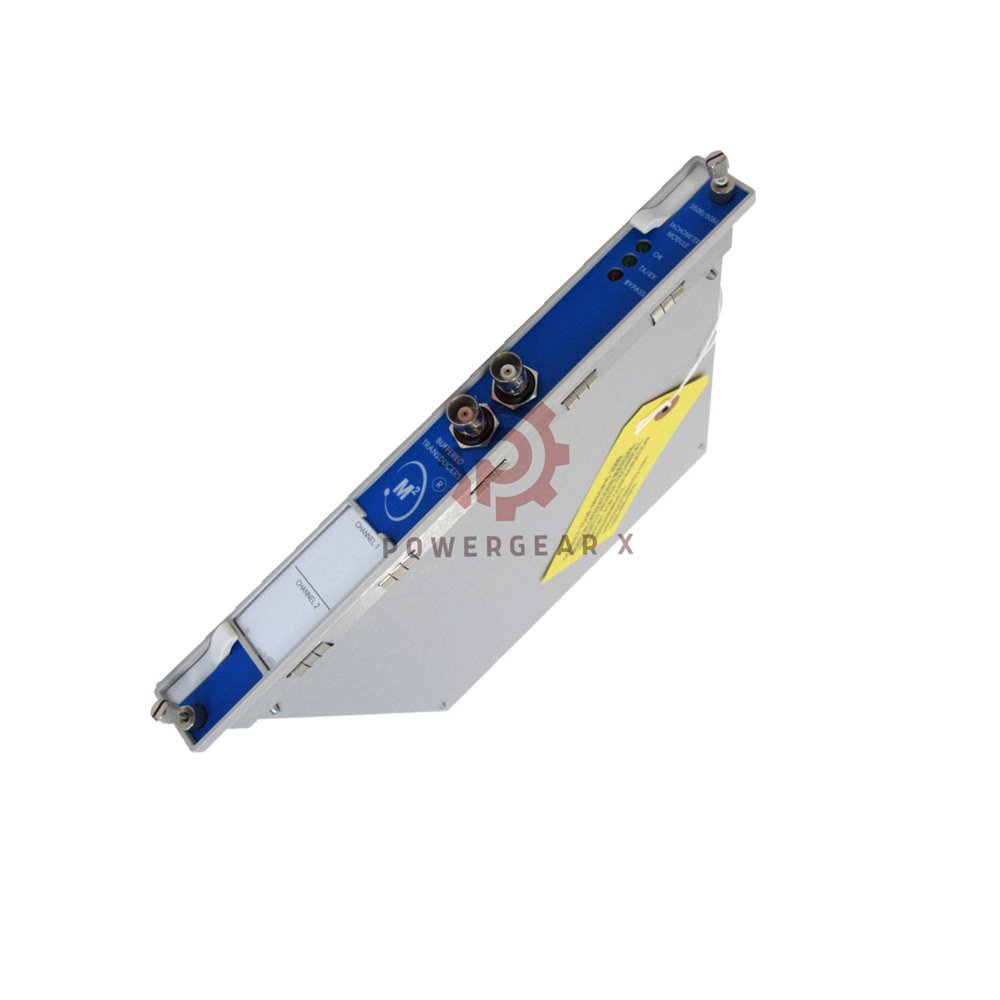

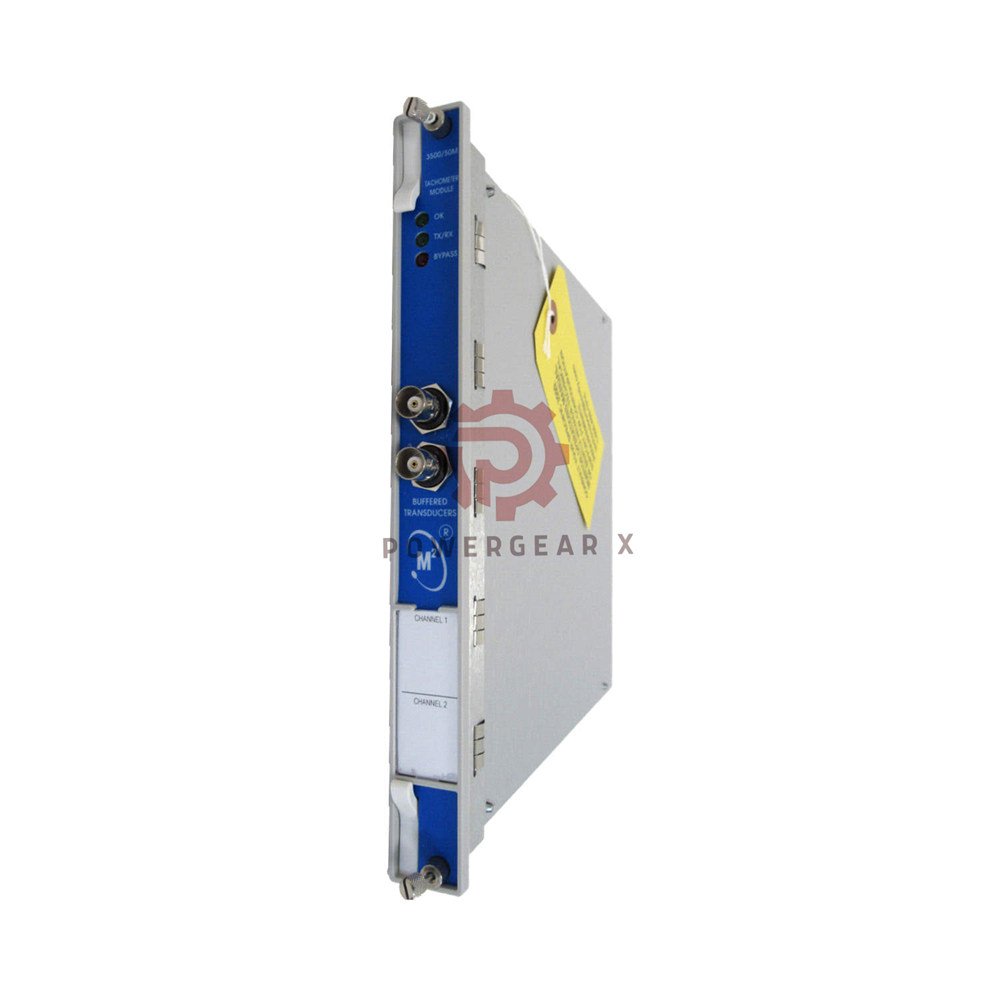

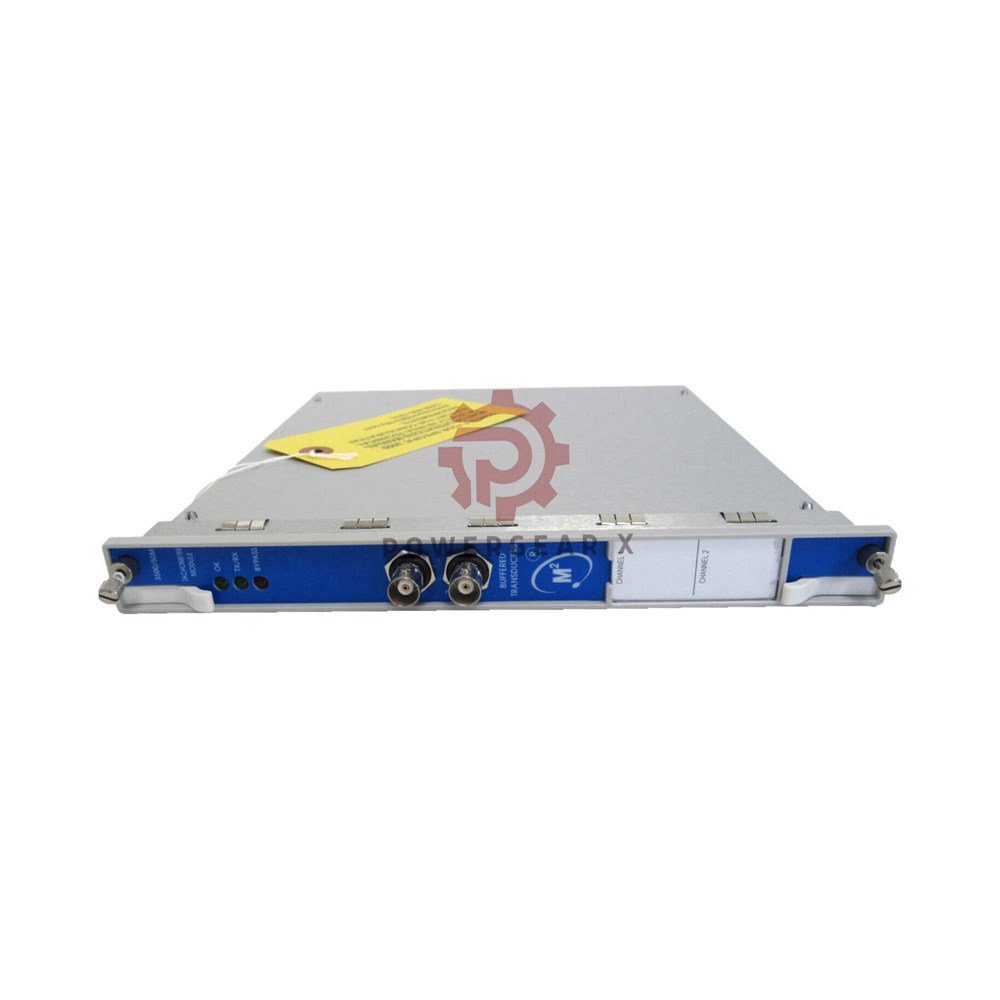

Product Overview
- Brand: Bently Nevada
- Model: 3500/50M-01-01
- Series: 3500 Machinery Protection System
- Type: Tachometer Monitoring Module
- Designed for precise shaft speed and rotor acceleration measurement
- Supports proximity probes and magnetic pickup sensors
- Handles dual channel speed inputs in one module
- Built for critical rotating equipment protection
- Made in U.S.A with industrial grade reliability
- Product page:
3500/50M Series Modules
Configuration Breakdown
- Order Code: 3500/50M-01-01
- ├─ 3500/50M = Tachometer monitor module
- ├─ 01 = I/O module with internal terminations
- └─ 01 = cNRTLus Class I Division 2 approval
Core Functions and Diagnostic Ability
- Measures shaft speed with high repeat accuracy
- Tracks rotor acceleration and zero speed events
- Supports 1 to 255 events per revolution
- Detects overspeed and underspeed conditions
- Provides real time rack communication status
- Front LEDs show OK, TX/RX, and bypass state
- Internal signal limiting protects module circuits
- Works in continuous monitoring environments
Technical Data
- Brand: Bently Nevada
- Model: 3500/50M-01-01
- Module Power Use: 5.8 W typical
- Sensor Supply: 24 Vdc, 40 mA max per channel
- Input Signal Range: +10 V to −24 V
- Input Impedance: 20 kΩ standard
- Input impedance TMR version 40 kΩ
- Internal barrier version 7.15 kΩ
- Max Input Frequency: 20 kHz
- Min Frequency Prox Probe: 0.0167 Hz
- Min Frequency Magnetic Pickup: 3.3 Hz
- Full Scale Speed: up to 99,999 rpm
- Speed Accuracy: ±0.1 rpm below 100 rpm
- Accuracy ±1 rpm from 100 to 10,000 rpm
- Accuracy ±0.01% above 10,000 rpm
- Acceleration Accuracy: ±20 rpm per minute
- Resolution: Event based speed calculation
- Linearity: Factory calibrated for tach signals
- Noise Immunity: Internal signal conditioning
- Interference Protection: Built in limiting and filtering
- Environment Tolerance: Industrial rack system use
Mechanical and Rack Data
- Monitor module uses one full height front slot
- I/O module uses one full height rear slot
- Main board size 241.3 × 24.4 × 241.8 mm
- Main board weight about 0.82 kg
- Non barrier I/O depth 99.1 mm
- Internal barrier I/O depth 163.1 mm
Compatibility Requirements
- Works only inside 3500 rack systems
- Not compatible with 3500/20 modules
- Required firmware for 3500/22M revision 1.70 or later
- 3500/01 software version 4.20 or later
- 3500/02 software version 2.52 or later
- 3500/03 display version 1.52 or later
- 3500/50M firmware 5.30 or later
- Series link:
3500/50M modules
Installation Guide
- Install into one free full height front slot
- Mount matching I/O module at rear slot
- Connect proximity probe or magnetic pickup wiring
- Check channel event per revolution setting
- Verify rack firmware before power up
- Confirm LED OK status after startup
Commissioning and Maintenance
- Configure channels using 3500 configuration software
- Set events per revolution correctly
- Check TX/RX LED for rack communication
- Use bypass mode during service work
- Hot swap supported in many rack setups
- Low routine maintenance needed
Certifications and Compliance
- Agency Approval: cNRTLus
- Rated for Class I Division 2 areas
- Designed for hazardous locations
Typical Application Scenarios
- Steam and gas turbines
- Compressors and expanders
- High speed motors
- Critical pump trains
- Generator sets
- Test stands for rotating machines
Packing List
- 1 × 3500/50M-01-01 Tachometer Module
- 1 × Matching I/O module
- Factory inspection label
- Protective packaging
Warranty and Shipping
- Warranty: 12 months
- Global delivery available
- Courier options FedEx, UPS, DHL
- Tracking number provided after dispatch
FAQ
- Can this module read two sensors at once
- Yes. It accepts two independent tachometer inputs.
- Does it work with magnetic pickups
- Yes. Passive magnetic pickups are supported.
- What happens if signal voltage is too high
- The module limits excessive input internally.
- Can I use it with older 3500 racks
- Check firmware and software versions first.
- Is it good for low speed shafts
- Yes. It measures down to very low frequency.
- Field tip for stable readings
- Use shielded cable and correct grounding.
Selection Guidance
- Confirm your rack firmware version first
- Check sensor type and output level
- Choose correct I/O barrier option
- Verify hazardous area certification needs
- Match events per revolution with gear teeth
- Ask for help if speed range is unknown
