Product details

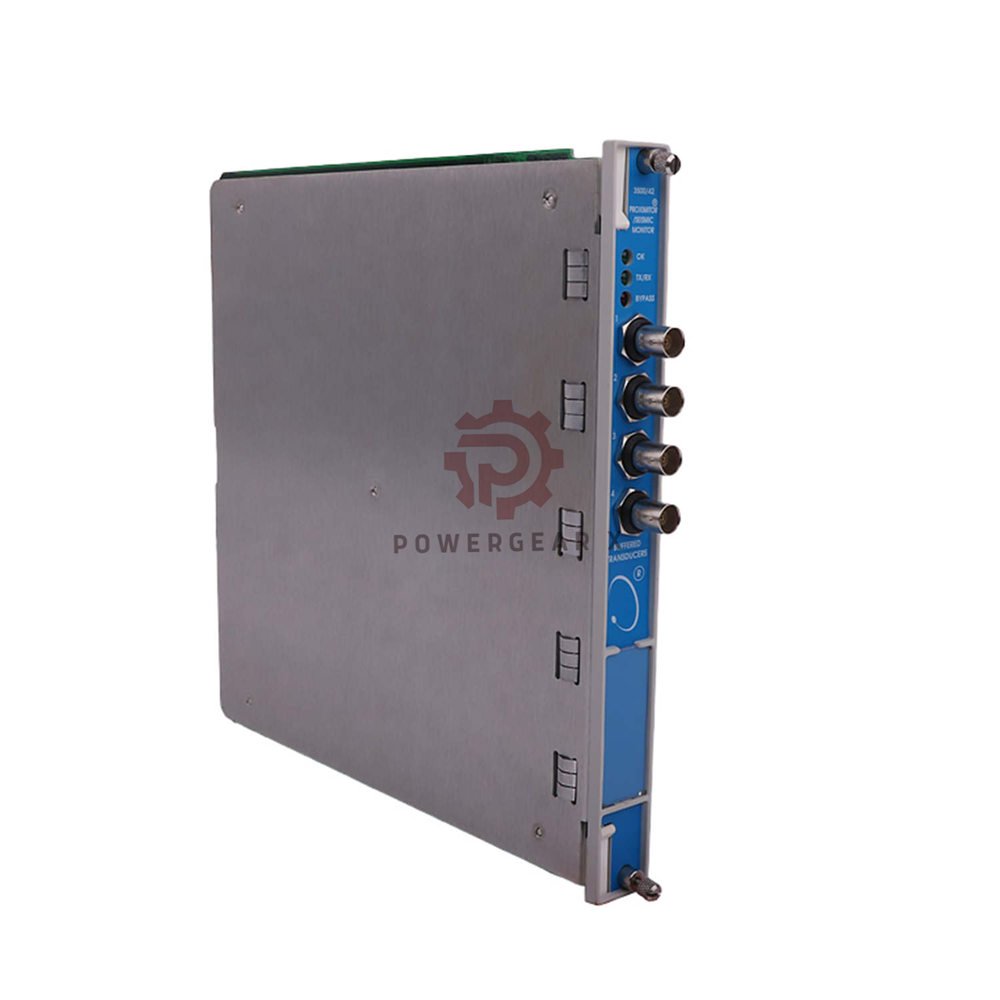

Product Overview
- Brand: :Bently Nevada
- Model: 3500/42-06-01
- Series: 3500 System
- Type: Proximitor Seismic Monitor
- Description: Multi-channel vibration and position monitor
- Supports proximity, velocity, and acceleration sensors
- Built for critical rotating machine protection
- Offers stable and accurate signal processing
Configuration Breakdown
- 3500/42-06-01
- ↳ 42 = Monitor series type
- ↳ 06 = I/O module with internal barriers
- ↳ Supports 4 × Velomitor inputs
- ↳ 01 = CSA / Class 1 Division 2 approval
Core Technical Data
- Power Consumption: 7.7 W typical
- Input Channels: Up to 4 signals
- Input Impedance: 10 kΩ
- Resolution: 0.3662 µA per bit
- Update Rate: ≤100 ms
- Output: 4–20 mA per channel
- Output Impedance: 550 Ω
- Sensor Power: -24 Vdc
Measurement Capability
- Vibration Sensitivity: 3.94 or 7.87 mV/μm
- Velocity: up to 20 mV/mm/s
- Acceleration: 10 mV/(m/s²)
- Differential Expansion: up to 0.787 mV/μm
- REBAM: up to 80 mV/μm
Frequency Response
- Wide range from 1 Hz to 4000 Hz
- Velocity range up to 5500 Hz
- Supports 1X and 2X vector filters
- Advanced notch filtering for noise control
Accuracy Performance
- Typical accuracy within ±0.33%
- Maximum error within ±1%
- Stable across temperature changes
- Reliable for high-speed machines
Signal Conditioning
- High-pass and low-pass filters included
- 4-pole filtering for clean signals
- Supports bias and gap filtering
- Optimized for industrial vibration signals
Module Design
- Compact rack-mounted module
- Dimensions: 241.3 × 24.4 × 241.8 mm
- Weight: 0.91 kg
- Easy front access connectors
System Integration
- Works with 3500/42M system
- Compatible with multiple sensor types
- Fits standard 3500 racks
- Supports industrial monitoring networks
Installation Notes
- Install into 3500 rack slot
- Connect sensors to front panel inputs
- Check wiring before power on
- Use proper grounding
Diagnostics Features
- LED indicators for system status
- Communication monitoring via TX/RX LED
- Bypass mode indication
- Buffered outputs for signal testing
Logistics & Warranty
- Warranty: 12 months coverage
- Shipping: FedEx, UPS, DHL
- Secure export packaging
- Fast delivery worldwide
FAQ
- How many sensors can this module support?
- It supports up to four sensor inputs at once.
- Can it work with velocity sensors only?
- Yes. It supports velocity, proximity, and acceleration sensors.
- What is the best use case?
- It fits rotating machines like turbines and compressors.
- How to choose the right I/O type?
- Select based on sensor type and hazardous area needs.
- What should I check before purchase?
- Confirm system compatibility, sensor type, and certification needs.
