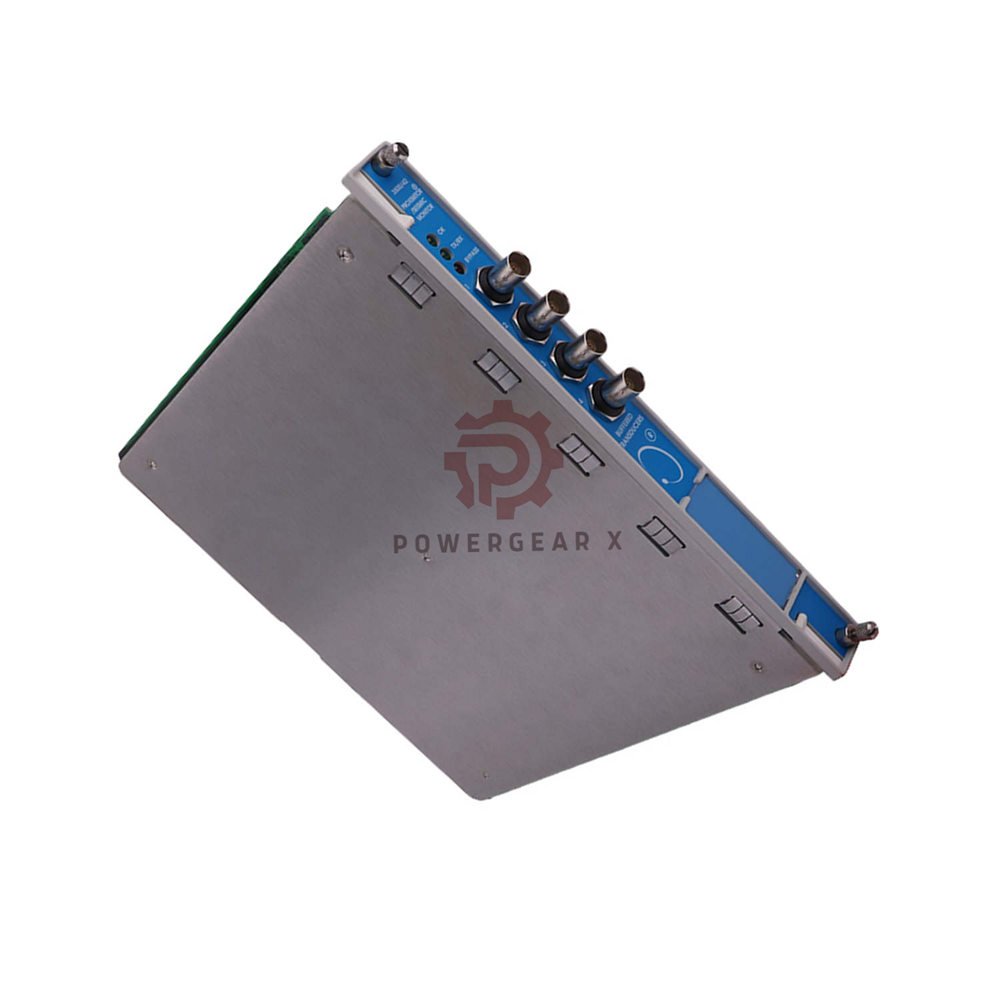

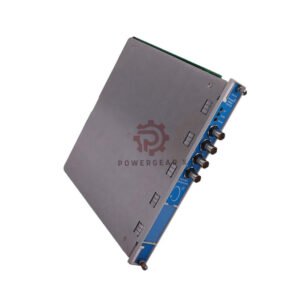

Bently Nevada 3500/42-06-00 Proximitor Seismic Monitor 3500 Series I/O Module

Product Description

• Brand: Bently Nevada
• Model: 3500/42-06-00
• Series: 3500/42M Proximitor Seismic Monitor
• High-performance vibration and position monitoring for rotating machinery
• Designed for proximity, velocity, and acceleration sensors
• Supports predictive maintenance and fault diagnostics
• Manufactured in the U.S.A

Configuration Breakdown

• 3500/42
  • 42 = Proximitor Seismic Monitor Module
  • 06 = I/O module with internal barriers
  • 00 = No hazardous area approval
  • 4 x Velomitor inputs supported

Key Technical Data

• Input Channels: 1 to 4 transducer inputs
• Supported Sensors: Proximity, velocity, acceleration
• Input Impedance: 10 kΩ
• Power Consumption: 7.7 W typical
• Transducer Supply: -24 Vdc
• Recorder Output: +4 to +20 mA
• Load Resistance: 0 to 600 Ω

Measurement Performance

• Sensitivity
  • Radial and Thrust: 3.94 or 7.87 mV/μm
  • Differential Expansion: 0.394 or 0.787 mV/μm
  • Velocity: up to 20 mV per mm/s peak
  • Acceleration: 10 mV per m/s²
• Frequency Response
  • Direct filter: 1 Hz to 4000 Hz
  • Velocity RMS: 10 Hz to 5500 Hz
  • Acceleration bias filter: 0.01 Hz
• Accuracy: ±0.33% typical, ±1% maximum
• Resolution: 0.3662 µA per bit

Signal Conditioning and Immunity

• High-pass and low-pass filters available
• Constant-Q notch filters for 1X and 2X
• Strong resistance to electrical noise
• Short-circuit protected outputs

Mechanical and Environmental Data

• Dimensions: 241.3 x 24.4 x 241.8 mm
• Weight: 0.91 kg
• Operating Temperature: Industrial standard range
• Designed for continuous operation

Installation Guidance

• Slides directly into 3500 rack slots
• No external barriers required
• Front-access buffered outputs simplify testing

Commissioning and Maintenance

• LED indicators for status and communication
• Hot-swappable under rack power
• Minimal calibration effort

Compatibility

• Compatible with Bently Nevada 3500 systems
• Works with Velomitor, Proximitor, and accelerometers
• Supports plant DCS and PLC integration

Typical Applications

• Steam and gas turbines
• Compressors and pumps
• Motors and generators
• Critical rotating machinery protection

Diagnostic Capabilities

• Shaft vibration analysis
• Thrust position monitoring
• Eccentricity detection
• Early fault warning

Certifications

• Industrial quality compliance
• Designed to meet global monitoring standards

Package Contents

• 1 x 3500/42-06-00 Monitor Module
• Protective packaging
• Factory inspection label

Warranty and Logistics

• Warranty: 12 months
• Shipping: FedEx, UPS, DHL
• Secure industrial packaging

FAQ

• What makes this monitor reliable?
  • Proven design and stable signal processing
• Can it replace older 3500/42 modules?
  • Yes, it supports direct system replacement
• Is it suitable for high-speed machines?
  • Yes, up to 100,000 cpm
• How do I choose the correct configuration?
  • Confirm sensor type and I/O requirements
• Does internal barrier design reduce wiring?
  • Yes, it simplifies installation

Purchasing Guidance

• Verify rack compatibility before ordering
• Match sensor output with sensitivity settings
• Contact support for system matching
