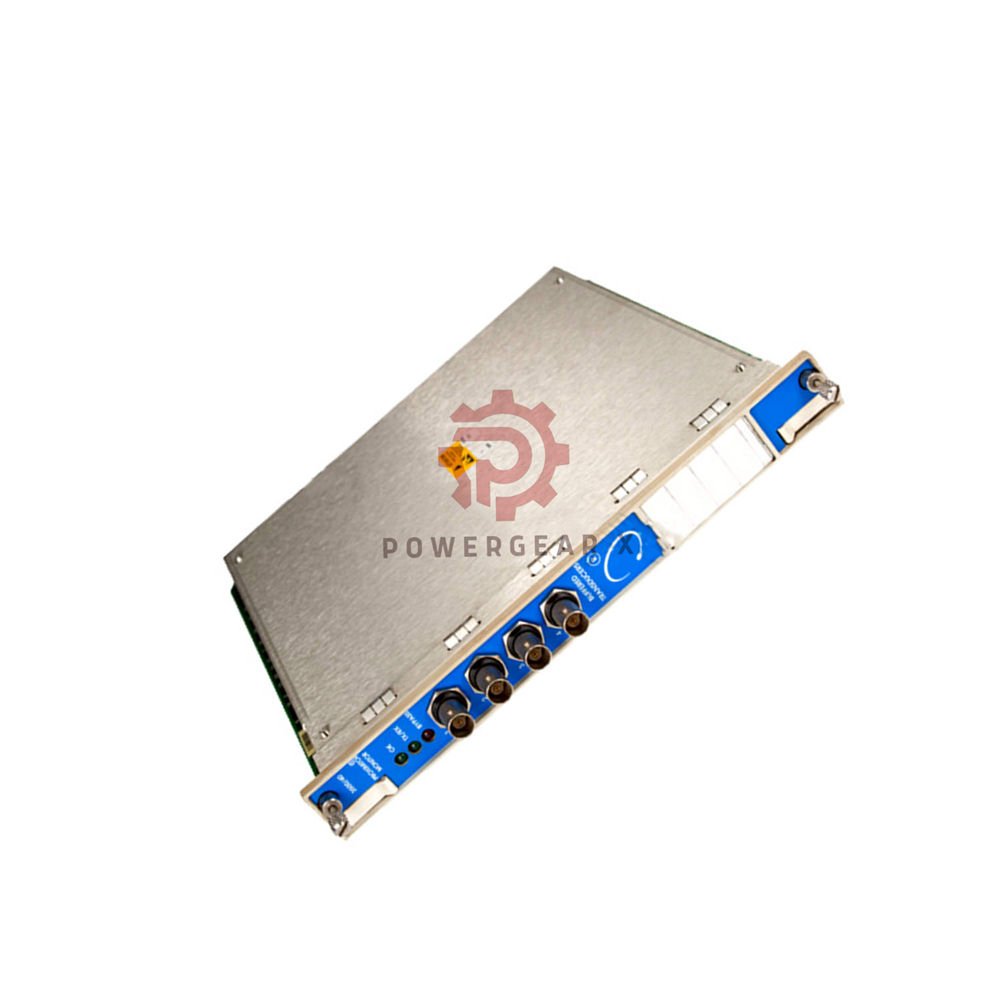

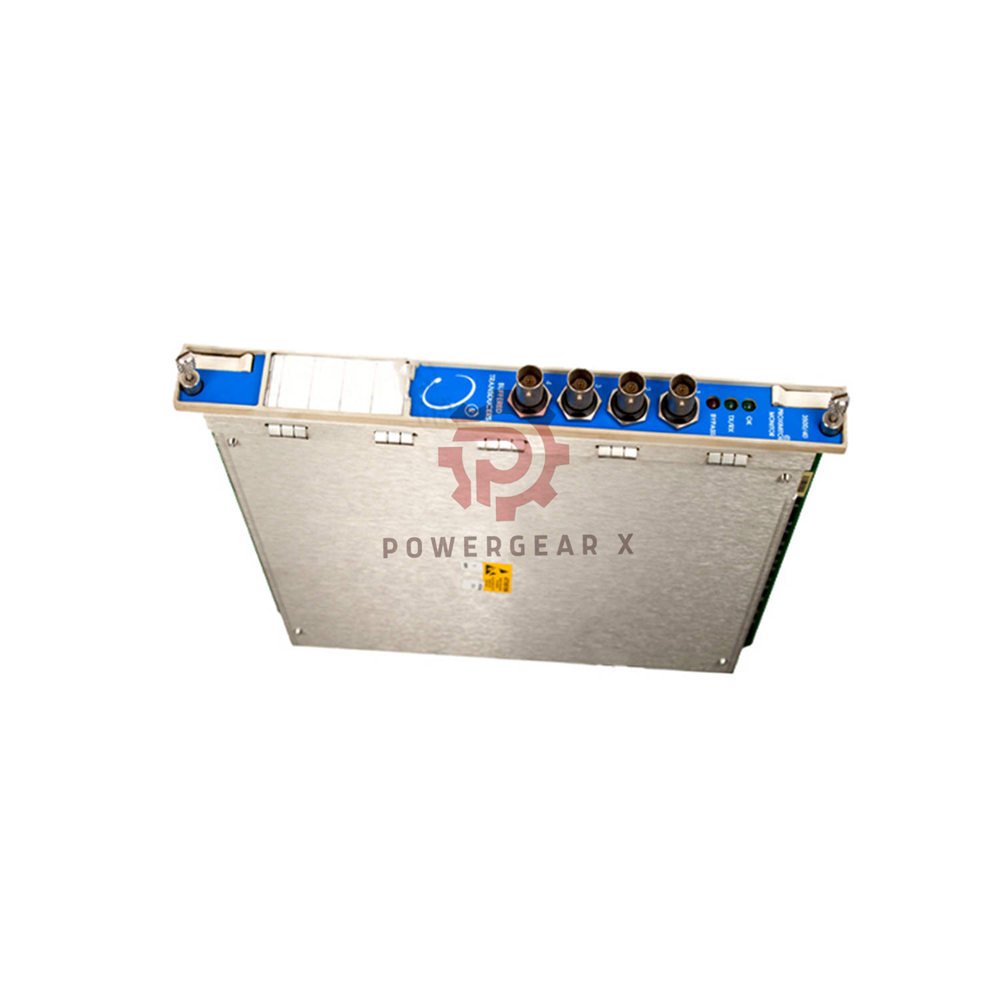

Bently Nevada 3500/40M-01-00 Proximitor Monitor Module for 3500 Series

Product Description

• Bently Nevada 3500/40M-01-00 is a high-performance proximitor monitor for the 3500 machinery protection system.
• It measures vibration and position with high accuracy. It supports up to four proximity transducer channels.
• The module delivers stable signal processing for critical rotating equipment.
• It improves machine safety and reduces unexpected downtime.
• It provides real-time diagnostics and buffered outputs.
• It suits turbines, compressors, pumps, and large motors.
• It installs easily in standard 3500 racks.
• It supports industrial environments with strong noise resistance.

Configuration Breakdown

• Model Structure
  • 3500/40M-AA-BB
  • AA: I/O Module Type
    • 01 = Proximitor I/O with internal terminations
  • BB: Agency Approval
    • 00 = None

Technical Specifications

• Brand: Bently Nevada
• Model: 3500/40M-01-00
• Series: 3500 Machinery Protection System
• Measurement capability
  • Supports 1 to 4 proximity inputs
  • Sensitivity options from 3.94 to 80 mV/μm
  • High linearity within ±1% full scale
  • Fine resolution for vibration and position signals
• Frequency response
  • User programmable filters from 1 Hz to 4000 Hz
  • Gap filter down to 0.09 Hz
  • Advanced notch and vector filters included
• Electrical performance
  • Power consumption about 7.7 W typical
  • Input impedance 10 kΩ standard
  • Buffered output impedance 550 Ω
  • Transducer supply −24 Vdc
• Accuracy
  • Direct and gap accuracy within ±1% maximum
  • Vector measurements within ±1% maximum
• Environmental tolerance
  • Designed for harsh industrial sites
  • Strong resistance to electrical interference
  • Stable operation in typical control room temperatures
• Physical data
  • Main module size 241.3 × 24.4 × 241.8 mm
  • Main module weight 0.91 kg
  • Requires one full rack slot front and rear

Installation Guide

• Insert the monitor into a 3500 rack front slot.
• Mount the matching I/O module in the rear slot.
• Connect proximity probes to internal terminals.
• Verify power and communication indicators.
• Follow rack grounding rules to reduce noise.

Commissioning and Maintenance

• Front LEDs show status and communication activity.
• Buffered outputs allow quick signal verification.
• Built-in diagnostics simplify troubleshooting.
• Modules support fast replacement without rewiring.

Compatibility

• Works with Bently Nevada 3300 and 3300 XL probes.
• Integrates with the 3500 rack and system software.
• Supports standard industrial monitoring networks.

Certifications

• Manufactured in the USA under strict quality control.
• Designed for industrial machinery protection systems.

Packaging and Warranty

• Factory sealed original packaging.
• Includes monitor and matching I/O module.
• 12-month warranty against manufacturing defects.
• Shipping by FedEx, UPS, or DHL worldwide.

Typical Applications and Diagnostics

• Continuous vibration monitoring of turbines.
• Protection of compressors and large pumps.
• Shaft position and thrust supervision.
• Early fault detection through signal analysis.

FAQ

• Can this module work with existing 3500 racks?
  • Yes. It fits standard 3500 racks without modification.
• How many probes can one module handle?
  • It accepts up to four proximity transducer channels.
• What is the main benefit for maintenance teams?
  • Real-time diagnostics speed up fault isolation.
• How do I choose the correct I/O option?
  • Select internal terminations for compact cabinet wiring.
• Is it suitable for high-speed machines?
  • Yes. Advanced filters support high running speeds.
