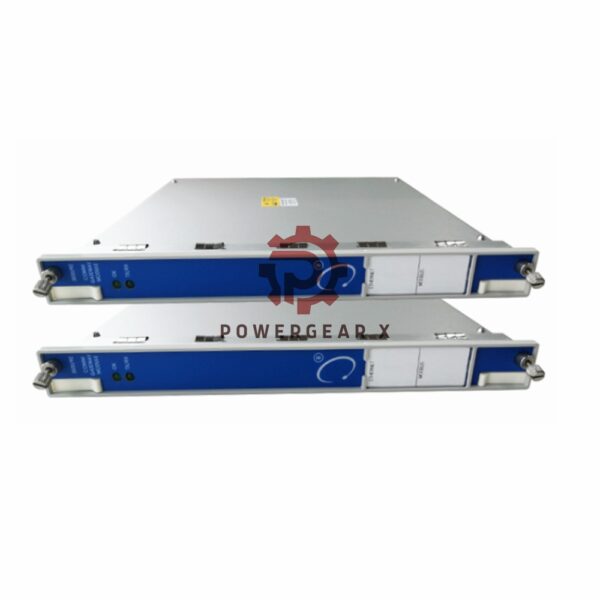

Bently Nevada 3500/33_SIL2-01-R0 16-Channel Relay Output

Overview:

The Bently Nevada 3500/33_SIL2-01-R0 is a high-performance 16-Channel Relay Output Module designed for use in the 3500 Monitoring System. This module provides 16 individually programmable relay outputs and is essential for advanced alarm management and control logic within process automation systems.

Technical Specifications:

• Brand: Bently Nevada
• Model: 3500/33_SIL2-01-R0
• Relay Type: Single-Pole Double-Throw (SPDT)
• Power Consumption: 5.8W typical
• Relay Contact Life: 10,000 cycles
• Relay Arc Suppressor: 250 Vrms (standard)
• Operation Mode: Selectable Normally De-energized (ND) or Normally Energized (NE) in four groups of four channels
• Environmental Sealing: Epoxy-sealed for protection against environmental elements
• Front Panel Indicators:
  • OK LED: Indicates proper operation
  • TX/RX LED: Communication status with other 3500 rack modules
  • CH Alarm LED: Indicates alarm status for each relay channel
• Dimensions:
  • Main Module: 241mm x 24.4mm x 242mm (9.50 in x 0.96 in x 9.52 in)
  • I/O Module: 241mm x 24.4mm x 99.1mm (9.50 in x 0.96 in x 3.90 in)
• Weight:
  • Main Module: 0.7 kg (1.6 lb)
  • I/O Module: 0.4 kg (1.0 lb)

FAQ:

Q1: What is the purpose of the 3500/33 16-Channel Relay Module?
A1: The module is used to control up to 16 relay outputs in response to alarm conditions or system inputs, enabling safe shutdown or warning actions based on pre-defined logic.

Q2: How are the relays configured?
A2: The relays can be independently configured for Normally De-energized (ND) or Normally Energized (NE) operation in four groups, providing flexible alarm handling options.

Q3: What is the expected lifetime of the relays in the 3500/33?
A3: The relays are rated for 10,000 cycles of operation, making them reliable for long-term use in industrial environments.

Q4: Can the 3500/33 16-Channel Relay Module be used in hazardous environments?
A4: Yes, the module is sealed with epoxy for protection against dust and moisture, ensuring its functionality in rugged environments.

For more detailed information: 3500-33 16-Channel Relay Module Datasheet
