Product Overview

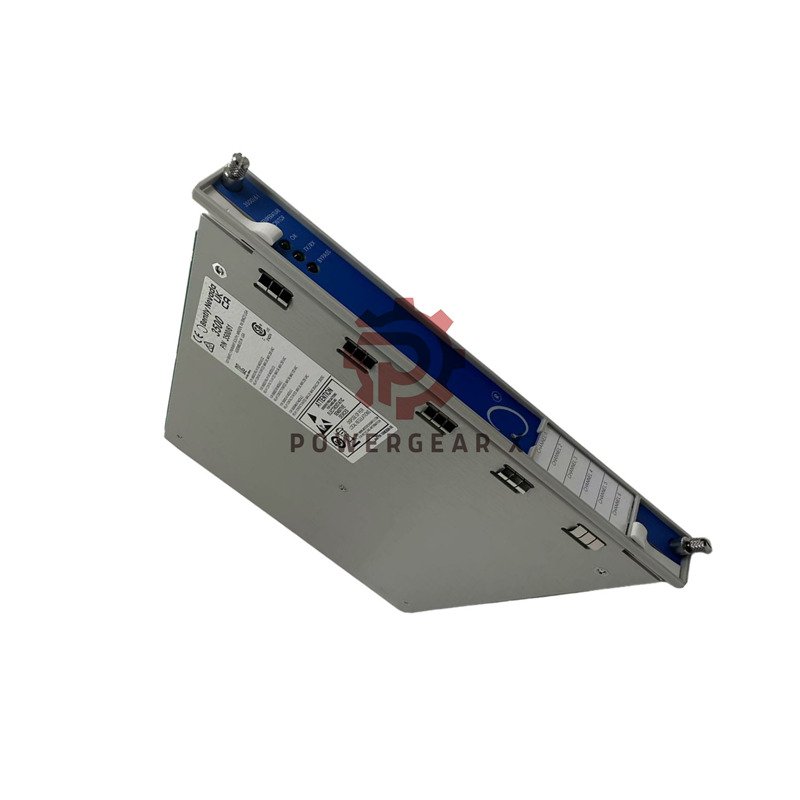

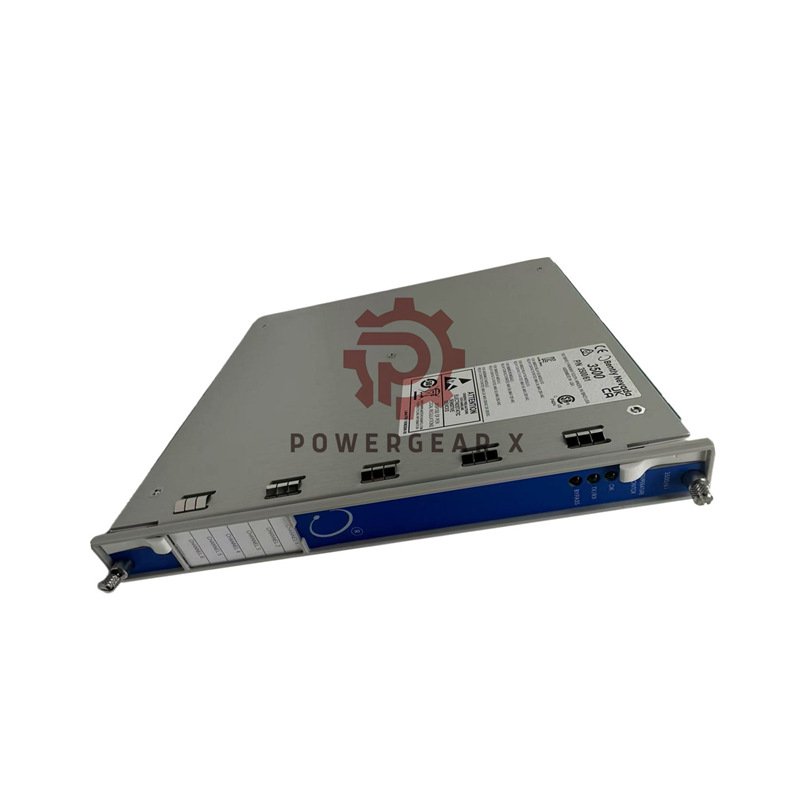

The Bently Nevada 3500/33-01-CN 149992-01 16-Channel Relay Module delivers reliable switching for industrial systems. This module features 16 single-pole double-throw relays with epoxy sealing. It operates in extreme temperatures and supports country-specific approvals.
Key Features & Benefits
- 16 independent SPDT relays for flexible control applications
- 10,000-cycle relay contact life for long-term reliability
- Epoxy-sealed construction for environmental protection
- Wide operating temperature range from -30°C to +65°C
- Front panel LEDs for clear status monitoring
- Country-specific approvals (CN option) for international use
- Arc suppressor included for enhanced safety
- Low power consumption of 5.8 watts typical
Technical Specifications
- Brand: Bently Nevada
- Model: 3500/33-01-CN 149992-01
- Product Type: 16-Channel Relay Module
- Relay Type: Single-pole double-throw (SPDT)
- Contact Life: 10,000 cycles minimum
- DC Ratings: 5A max, 125 Vdc max, 70W @ 24 Vdc
- AC Ratings: 5A max, 250 Vac max, 1200 VA
- Low Current DC: 1 mA @ 1 Vdc min, 100 mA @ 48 Vdc max
- Operating Temperature: -30°C to +65°C (-22°F to +150°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity: 95% non-condensing
- Dimensions: 241mm x 24.4mm x 242mm (9.50″ x 0.96″ x 9.52″)
- Weight: 0.7 kg (1.6 lb)
- Power Consumption: 5.8 watts typical
Installation Requirements
- Requires one full-height front slot in 3500 series rack
- Needs 3500 Rack Config version 3.3 or later
- Requires 3500 Data Acquisition Software version 2.40 or later
- Needs 3500 Data Display Software version 1.40 or later
- Ensure proper ventilation around the module
- Verify voltage limits for approval compliance
Ordering & Configuration Notes
- Model suffix -01-CN indicates country-specific approvals
- Voltage limitations apply for hazardous area certifications
- Not compatible with higher voltages in SIL safety systems
- Relay groups configurable for normally energized/de-energized
- Made in the USA for quality assurance
Shipping & Warranty
- Includes 12-month manufacturer warranty
- Shipped via FedEx, UPS, or DHL worldwide
- Package contains relay module and documentation
- Fast dispatch within 1-2 business days
Frequently Asked Questions
- What does the CN approval option mean?
This indicates country-specific certifications for international markets.
- How many relay cycles can I expect?
The relays guarantee 10,000 operations under rated conditions.
- Can I use this in hazardous locations?
Yes, with voltage restrictions as specified in the certifications.
- What software is required?
You need rack configuration software version 3.3 or newer.
- How do I monitor relay status?
Front panel LEDs show operational, communication, and alarm states.
