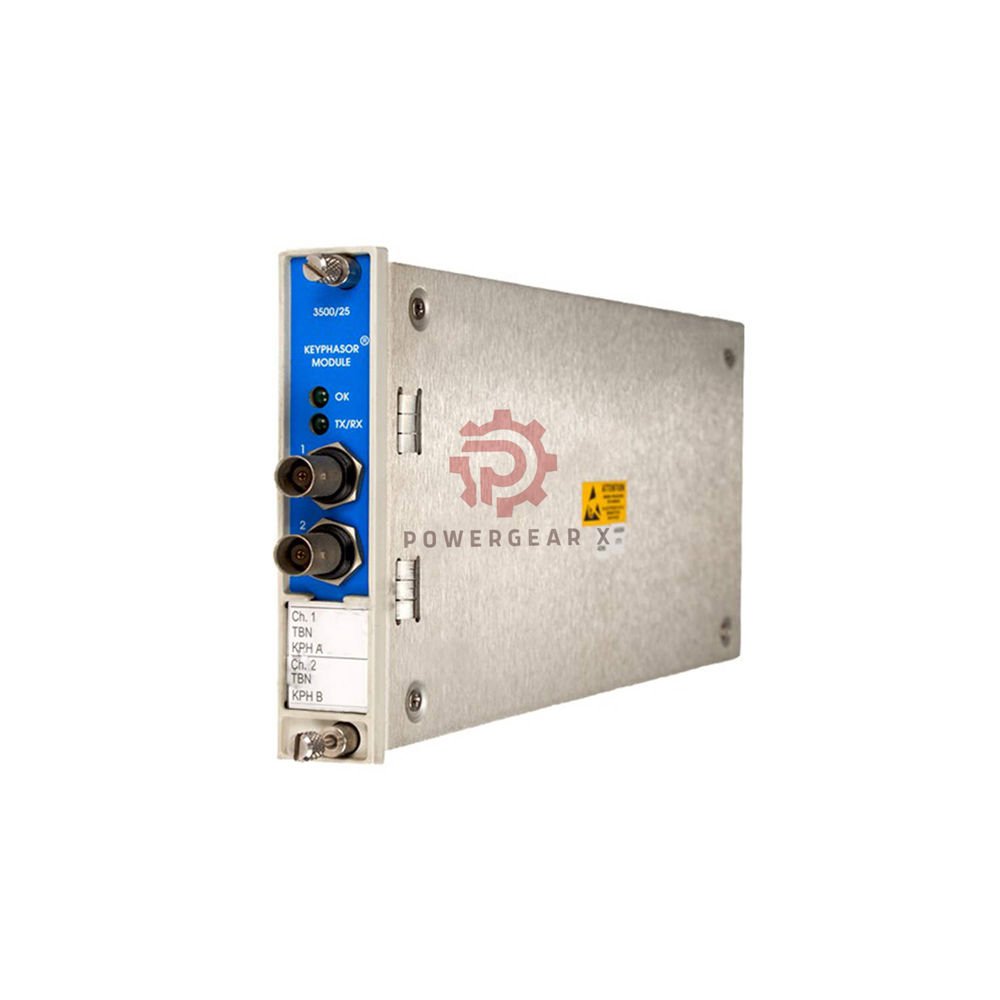

Product Overview
- Brand: :Bently Nevada
- Model: 3500/25-01-01-02
- Series: 3500 System
- Type: Enhanced Keyphasor Module
- Description: Speed and phase reference monitoring module
- Supports proximity probes and magnetic pickups
- Provides stable speed signal tracking
- Used in rotating machinery systems
Configuration Breakdown
- 3500/25-01-01-02
- ↳ 25 = Keyphasor module series
- ↳ 01 = 2-channel half-height module
- ↳ Supports dual input signals
- ↳ 01 = Internal termination I/O module
- ↳ 02 = ATEX / IECEx / CSA Zone 2 approval
Core Technical Data
- Channels: 2 inputs
- Power Consumption: 3.2 W typical
- Input Impedance: ≥21.8 kΩ
- Input Signal Range: up to -21 V
- Sensor Power: -24 Vdc
- Output Impedance: 504 Ω max
Speed & Frequency Performance
- Input Range: 1 to 1,200,000 cpm
- Frequency Range: up to 20 kHz
- Output Range: up to 99,999 cpm
- Supports multiple pulses per revolution
Measurement Accuracy
- Low speed: ±1 cpm accuracy
- Medium speed: ±8 cpm accuracy
- High speed: ±1% of reading
- Stable at standard temperature
Signal Conditioning
- Auto threshold for easy setup
- Manual threshold adjustable 0 to -20 V
- Hysteresis adjustable 0.2 to 2.5 V
- Reliable trigger detection
Output Features
- Front and rear buffered outputs
- Coaxial and Euro connectors available
- Short circuit protection included
- Stable signal output for monitoring
Environmental Limits
- Operating Temp: -30°C to +65°C
- Storage Temp: -40°C to +85°C
- Humidity: 95% non-condensing
Physical Design
- Compact half-height module
- Size: 119.9 × 24.4 × 256.5 mm
- Fits standard 3500 rack
- Easy installation and wiring
System Compatibility
- Works with 3500/25 system
- Supports proximity and magnetic sensors
- Integrates with rack interface module
- Designed for rotating equipment monitoring
Installation Notes
- Install into rack slot correctly
- Use correct I/O module type
- Check signal polarity before wiring
- Avoid mixing termination types
Logistics & Warranty
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL
- Safe industrial packaging
- Fast global delivery
FAQ
- What is the main function of this module?
- It provides speed and phase reference signals.
- Can it detect very low speed?
- Yes. It supports signals from very low frequency.
- How to choose between auto and manual threshold?
- Use auto for simple setup. Use manual for special signals.
- What should be checked before installation?
- Check sensor type, wiring, and signal range.
- Is this module easy to maintain?
- Yes. It has LED indicators and stable design.
