Product details

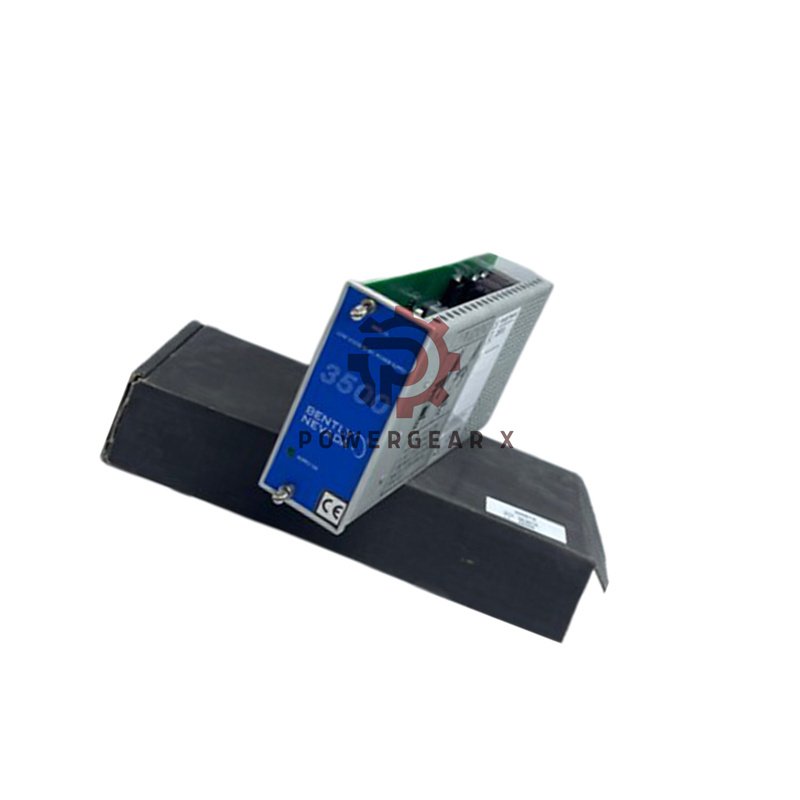

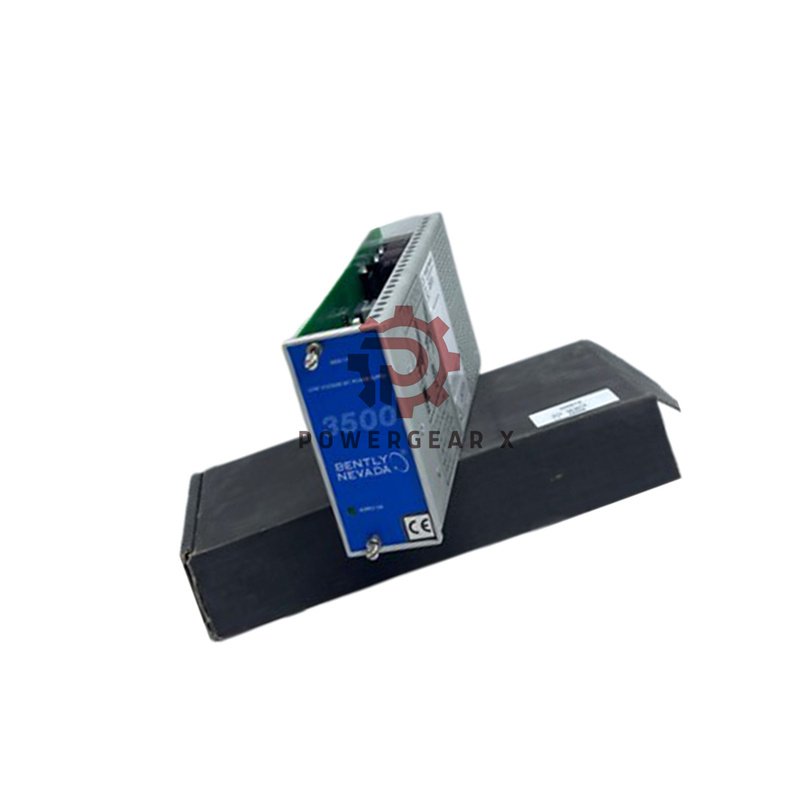

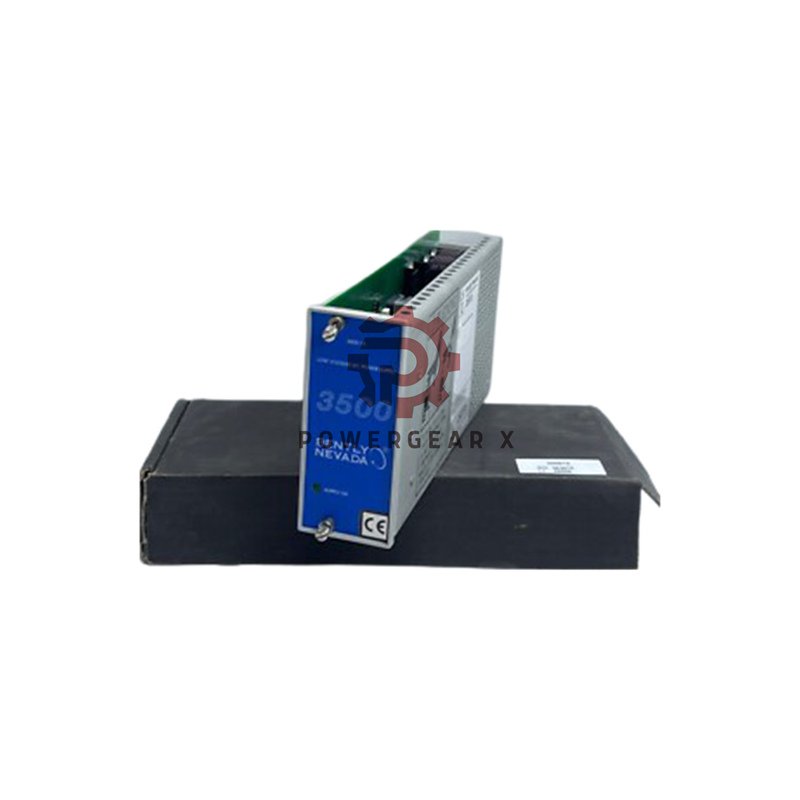

Bently Nevada Low Voltage DC Power Supply Module
The 3500/15 low voltage DC power supply ensures reliable system operation. This American-made module delivers stable power in tough conditions. It supports redundant configuration for critical applications.
Power Performance Features
- Low voltage DC input from 20 to 30V DC operation
- High 11.0A maximum current for full rack load
- Front panel OK LED indicates proper operation
- Over-voltage protection with fuse safety
- Under-voltage operation without component damage
- Redundant power supply capability
Electrical Specifications
- Part Number: 3500/15 133292-01
- Input Voltage: 20-30V DC low voltage range
- Maximum Current: 11.0A for complete system power
- Input Protection: Fuse protected against over-voltage
- Status Indication: Supply OK LED for quick monitoring
- Minimum Load: No minimum rack load required
Physical Dimensions & Installation
- Module Dimensions: 120.7mm x 50.8mm x 251.5mm
- Module Weight: 1.39 kg (3.06 lb) sturdy construction
- Rack Space: Two half-height slots on left side
- Mounting: Direct rack installation with secure fit
- Input Module: Special half-height module behind supply
Environmental Operating Conditions
- Operating Temperature: -30°C to +65°C wide range
- Storage Temperature: -40°C to +85°C for harsh conditions
- Humidity Rating: 95% non-condensing for damp areas
- Industrial Grade: Built for tough factory environments
- Reliable Performance: Consistent operation in extremes
Safety Certifications & Compliance
- FCC Part 15 Rules for electromagnetic interference
- EMC Directive 2014/30/EU European standards
- Electrical Safety: EN 61010-1 and LV Directive 2014/35/EU
- RoHS Compliance: Directive 2011/65/EU environmental
- Maritime Approvals: DNV GL and ABS classification
- Industrial Immunity: EN 61000-6-2 for harsh environments
Redundant Power Capability
- Dual Slots: Two power supplies can operate together
- Backup Ready: Second supply provides immediate backup
- No Downtime: Continuous operation during failures
- Easy Maintenance: Hot-swappable replacement capability
- System Protection: Critical monitoring never interrupted
Ordering & Shipping Information
- Manufacturer: Bently Nevada, Made in USA
- Product Number: 133292-01 Low Voltage DC
- Condition: New original factory packaging
- Warranty: 12 months comprehensive coverage
- Shipping: FedEx, UPS, DHL express options
- Delivery: Global service with tracking included
Technical Power Questions
- What input voltage does this power supply use?
It operates with 20 to 30V DC input for low voltage applications. - How much current can it deliver to the rack?
Maximum 11.0A current for powering full monitoring systems. - Can I install two power supplies for backup?
Yes, the rack supports dual supplies for redundant operation. - What temperature range does it operate in?
It functions from -30°C to +65°C in industrial conditions. - What safety certifications does it have?
FCC, EMC, RoHS, and maritime approvals for various applications.
Contact our power specialists at sales@powergearx.com or +86 18030005825 for support.
