Product details

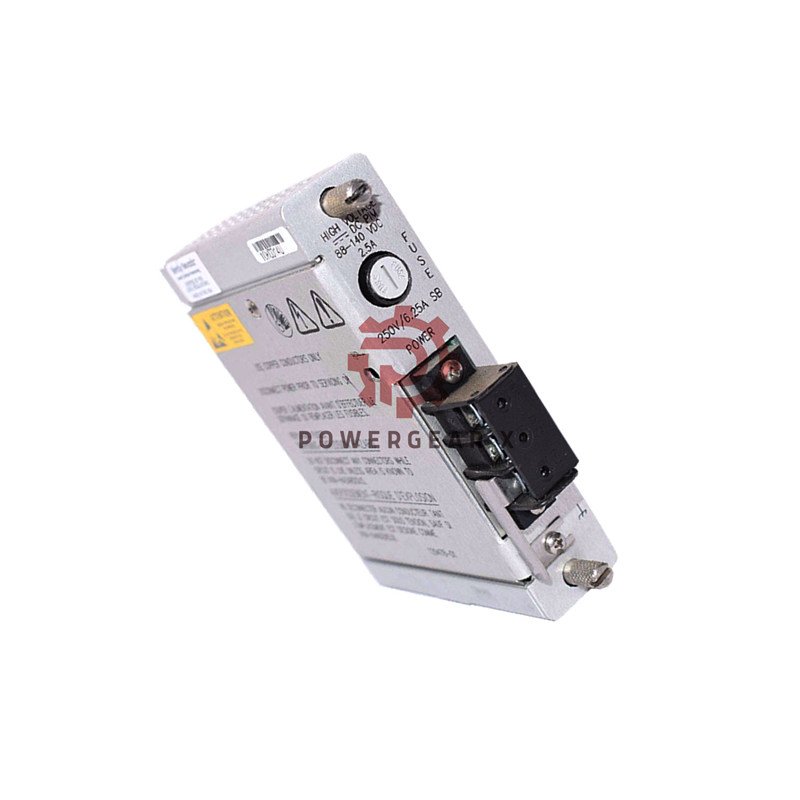

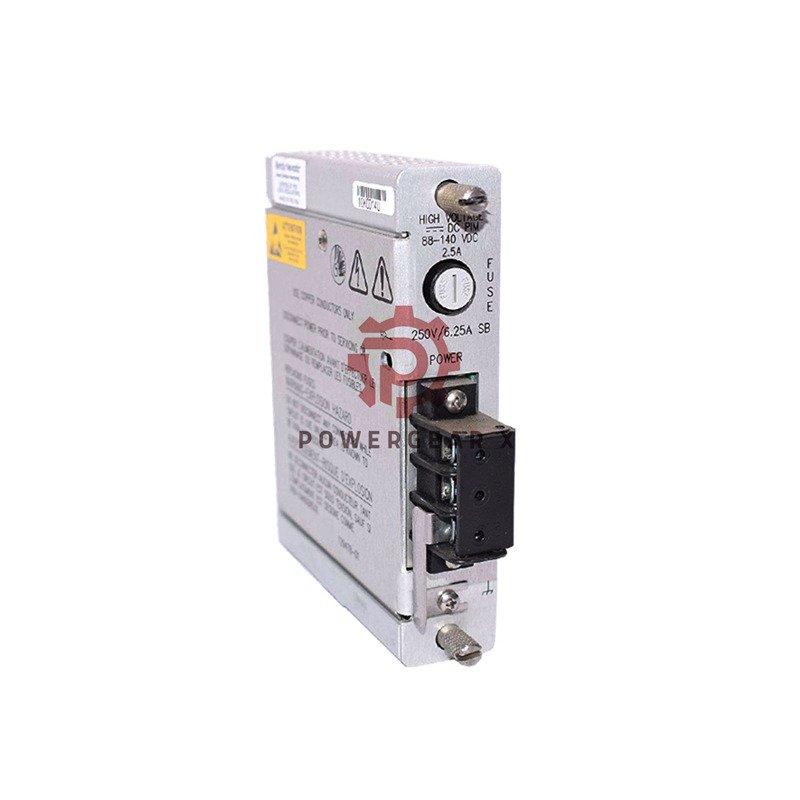

Bently Nevada 3500/15 129478-01 Legacy High Voltage DC Power Input Module
- Manufacturer: Bently Nevada
- Product No.: 3500/15 129478-01
- Product Type: Legacy High Voltage DC Power Input Module
- Country of Origin: U.S.A
- Condition: New & Original, Factory Sealed
- Warranty: 12 Months
Voltage and Current
- Input Voltage: 88–140 VDC
- Full Rack Current: 2.5 A max
- Protection: Undervoltage safe; overvoltage triggers fuse
- Min Load: No minimum required
Indicators
- Front panel LED shows supply status
- “Supply OK” LED confirms normal operation
Physical Data
- Dimensions (H×W×D): 120.7 × 25.4 × 114.3 mm
- Size (inches): 4.75 × 1.0 × 4.5
- Weight: 0.34 kg (0.75 lb)
Rack Installation
- Two half-height rack slots on left side
- Supports redundant power supply configuration
Environmental Limits
- Operating Temp: -30°C to +65°C
- Storage Temp: -40°C to +85°C
- Humidity: 95%, non-condensing
Compliance & Certifications
- FCC: Part 15, Class A, industrial use
- EMC: EN 61000-6-2 / EN 61000-6-4
- Safety: EN 61010-1 (Low Voltage Directive 2014/35/EU)
- RoHS: Directive 2011/65/EU compliant
- Marine Approval: DNV GL / ABS certified for ships and offshore units
Shipping & Delivery
Product Highlights
- Reliable high voltage DC input range (88–140 VDC)
- Compatible with 3500 monitoring racks
- Redundant design for continuous uptime
- Low power loss, high operational stability
- Meets strict marine, safety, and EMC standards
FAQ
- Q: What input range does the 3500/15 129478-01 support?A: It operates reliably between 88 and 140 VDC.
- Q: Can I install two power input modules at once?A: Yes, two modules can be used for redundancy.
- Q: What happens if input voltage exceeds limits?A: The module’s fuse will open to prevent internal damage.
- Q: Is the unit certified for ship or offshore use?A: Yes, it meets DNV GL and ABS standards for marine systems.
- Q: How should I store the module before use?A: Store between -40°C and +85°C in a dry environment. Shipping via DHL or FedEx is recommended.
