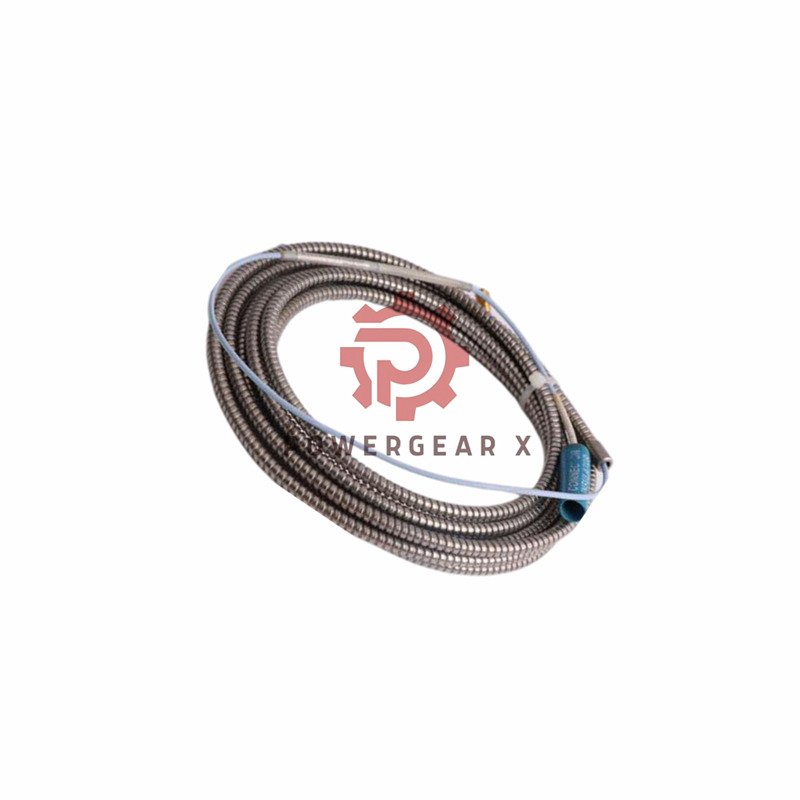

Bently Nevada 330930-060-11-00 3300 NSv Extension Cable 6m Armored

📦 Product introduction

This is the genuine Bently Nevada 330930-060-11-00 – a 6 meter 3300 NSv extension cable. It connects a Bently Nevada proximity probe to the proximitor sensor. The cable uses 75 Ω coaxial FEP insulation for stable, low‑noise signals. Its FluidLoc stainless steel armor protects against harsh industrial environments. Operating temperature ranges from -51 °C to +177 °C. Made in U.S.A, this cable ensures system integrity for vibration and position monitoring.

🔧 Technical specifications

• Brand : Bently Nevada (Baker Hughes)
• Model : 330930-060-11-00
• Product type : 3300 NSv extension cable
• System length : cable + probe must equal 5 m or 7 m total (proximitor requirement)
• Linear range : 1.5 mm (60 mils) – from 0.25 mm to 1.75 mm gap
• Recommended gap : 1.0 mm (40 mils)
• Frequency response : see graphs Fig. 16 & 17 for signal rolloff with long field wiring
• Sensitivity : derived from 75 Ω coaxial construction, 7.87 mV/µm typical
• Resolution : high‑resolution due to low noise FEP dielectric
• DC resistance : center conductor 0.220 Ω/m, shield 0.066 Ω/m
• Capacitance : 69.9 pF/m typical (21.3 pF/ft)
• Temperature range : operating/storage -51 °C to +177 °C (-60 °F to +351 °F)
• Environmental resistance : stainless steel armor (AISI 302) resists abrasion, chemicals, moisture
• EMI/RFI immunity : coaxial braid shield with gold‑plated brass connectors
• Tensile strength : rated 220 N (50 lb) at all connection points
• Field wiring : 0.2 … 1.5 mm² (16‑24 AWG); max. lead length 305 m (1000 ft) to monitor
• Agency approval : 00 = not required (general purpose)
• Connector option : 11 = FluidLoc cable with stainless armor, without FEP jacket, with connector protector
• Material : gold‑plated brass connectors, A380 aluminum proximitor housing

📐 Installation guide

• critical: probe length + extension cable length must equal total system length (5 m or 7 m)
• Use recommended gap setting 1.0 mm (40 mils) for optimal linear range
• Route cable away from high‑interference sources; maintain bend radius > 50 mm
• Field wiring: three‑conductor shielded triad, 0.25‑0.75 mm² with ferrules
• Maximum field wiring length 305 m (1000 ft) – verify frequency response for your application

🛠️ Debugging & maintenance convenience

• Integral connector protector prevents damage during installation/removal
• FluidLoc armor allows easy pulling through conduit without kinking
• Gold‑plated contacts resist corrosion and ensure reliable low‑noise connection
• Simple continuity check: center conductor 0.22 Ω/m, shield 0.066 Ω/m
• No special tools required; standard 75 Ω BNC‑compatible interface

🔌 Compatibility & system integration

• Works with all 3300 XL NSv Proximitor Sensors (5 m or 7 m system length)
• Compatible with Bently Nevada 3300, 3500 monitoring systems
• Use with 8 mm or 11 mm proximity probes that require 75 Ω extension
• Direct replacement for older 3300/3300XL cables

✅ Certifications & approvals

• Temperature classifications (EPL Ga/Gc): T1 to T5 per ambient temperature (‑55 °C up to +232 °C)
• EPL Dc ratings: T280°C @ Ta up to +232°C, T225°C @ Ta up to +177°C, etc.
• General purpose (option 00) – suitable for non‑hazardous areas
• RoHS compliant materials (FEP, stainless steel, gold brass)

📦 Package list & warranty

• 1 x Bently Nevada 330930-060-11-00 extension cable (6.0 m / 19.7 ft)
• Factory‑installed connector protector
• Inspection certificate (traceable to Bently Nevada)
• 12‑month warranty against manufacturing defects
• Shipping weight approx. 1.5 kg

🚚 Shipping & delivery

• Expedited shipping via FedEx, UPS, or DHL – world‑wide tracking
• Orders placed before 2 PM ship same business day
• Typical transit: 2‑5 business days (express) / economy available

🏭 Typical applications & diagnostics

• Radial vibration & thrust position monitoring on turbines, compressors, pumps
• Phase reference / keyphasor measurements
• Diagnostic capability: detect cable discontinuity by DC resistance check
• Identify excessive noise through capacitance stability (69.9 pF/m typical)
• Supports trend analysis and alarm mapping in 3500 racks

❓ Frequently asked questions

• Can I use this cable with an 11 mm probe?
  Yes, as long as the proximitor requires 75 Ω cable and the total length matches 5 m or 7 m.
• What does “FluidLoc” mean?
  It is a fluid‑blocking design that prevents liquid migration along the cable, plus stainless steel armor for crush resistance.
• How do I select the correct extension cable length?
  Measure your probe length, then choose the extension so that probe + extension = proximitor length (5 m or 7 m). Example: 1.0 m probe needs 4.0 m extension for a 5 m system.
• Is this cable compatible with old 3300 systems?
  Absolutely – it replaces 3300/3300XL extension cables with the same 75 Ω specification.
• What is the maximum temperature if I need an ATEX rating?
  For EPL Dc T225°C @ Ta the ambient limit is +177 °C; for T280°C @ Ta it is +232 °C (probe only).
• Can I bury this cable directly?
  The stainless armor gives mechanical protection, but Bently Nevada recommends conduit for permanent burial.
• 选购指导 (selection tip): Verify your proximitor model (5 m vs. 7 m). If you need extra chemical resistance, choose the version with FEP jacket (option 10). This 060‑11‑00 is armor only – ideal where maximum flexibility and no jacket are preferred.
