Bently Nevada | 330930-040-01-CN 3300 XL Standard Extension Cable

Bently Nevada 330930-040-01-CN Extension Cable

Product Overview

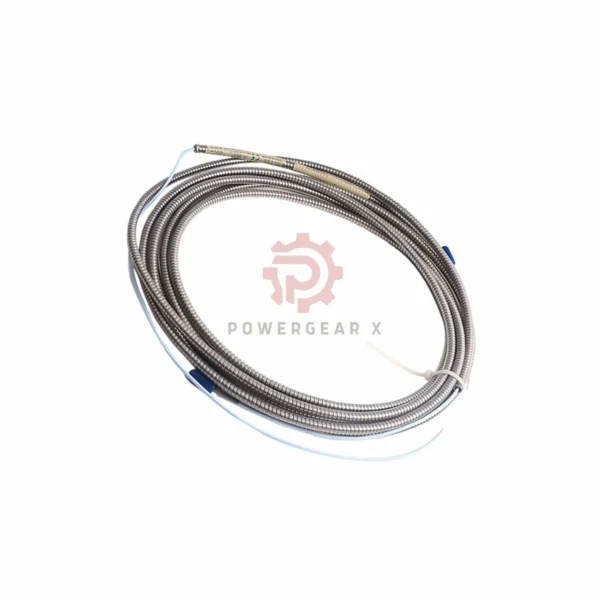

This is a 4.0 meter armored extension cable for 3300 XL 8 mm Proximitor sensors. It includes silicone tape to protect connectors but not for use with turbine oil.

Technical Specifications

• Model: 330930-040-01-CN
• Cable Length: 4.0 meters (11.5 feet)
• Cable Type: Armored cable
• Weight: 0.875 kg (armored cable)
• Capacitance: 69.9 pF/m typical
• Output Resistance: 50 Ω
• Center Conductor Resistance: 1.87 Ω ± 0.28 (at 8.5 m length)
• Outer Conductor Resistance: 0.56 Ω ± 0.11 (at 8.5 m length)

Installation & Compatibility

• Compatible with 3300 XL 8 mm Proximitor sensors and probes
• Gold-plated, corrosion-resistant ClickLoc connectors
• Use 3 conductor shielded cable (16 to 24 AWG) for field wiring
• Maximum 305 meters cable length from sensor to monitor

Durability & Features

• TipLoc molding: Strong bond between probe tip and body
• CableLoc design: 330 N pull strength for cable and probe
• Humidity Resistance: Less than 3% change in scale factor after 56 days at 93% humidity
• Sealing: Viton O-ring seals probe differential pressure
• Probes not pressure tested before shipment; testing available on request

Model Code Explanation

• 330930: Extension cable series
• 040: Cable length 4.0 meters
• 01: Armored cable
• CN: Country-specific approval
