Product Overview: Armored for Demanding Service

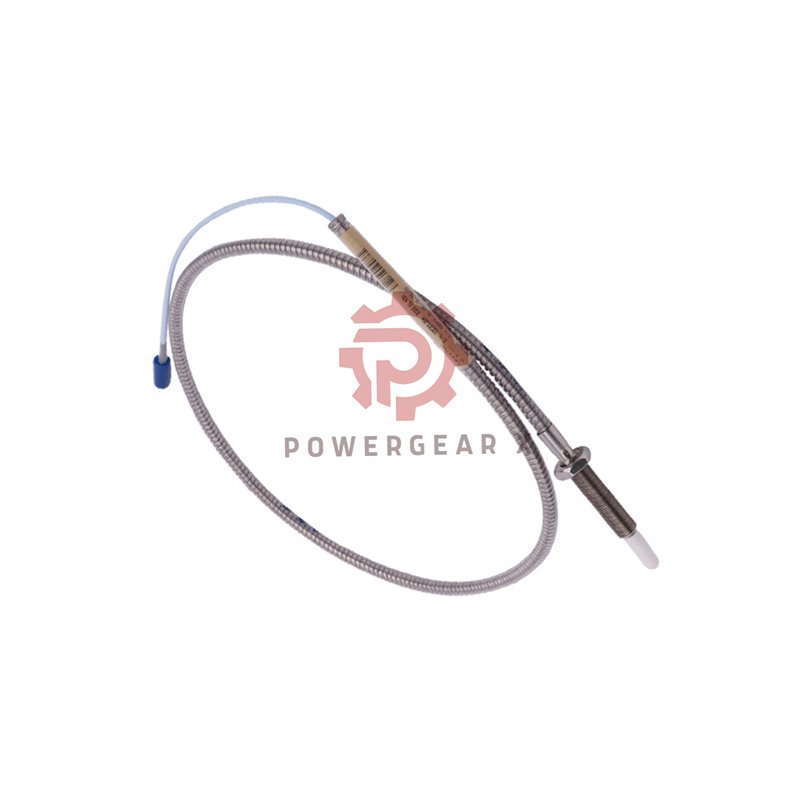

This is the 330909-00-20-10-02-CN, an armored version of the trusted Bently Nevada 3300 NSv Proximity Probe. It is new, original, and sealed in factory packaging. The probe offers superior protection and performance for critical machinery monitoring.
Why Choose This Probe?
- Built-In Armor: Stainless steel armor protects the cable from damage in tough plants.
- Proven Reliability: Excellent for measuring shaft vibration and position.
- Easy Upgrade: Works directly with older 3300 RAM system parts.
- Complete Package: Ready to install. Backed by a full 12-month warranty.
Detailed Technical Specifications
- Manufacturer & Series: Bently Nevada 3300 NSv
- Full Part Number: 330909-00-20-10-02-CN
- Key Feature: Includes stainless steel armor for cable protection.
- Electrical Output: Approx. -2 to -18 Vdc across its working range.
- Measurement Accuracy: High linearity with minimal deviation.
- Response Speed: Captures fast vibration changes up to 10,000 Hz.
- Environmental Protection: Sealed with a Viton O-ring.
- Thread Size: Standard 3/8-24 UNF for easy mounting.
- Case Length: 2.0 inches overall.
- Total Cable: 1.0 meter (39 inches) with standard FEP insulation.
- Connector: Miniature coaxial ClickLoc for secure connection.
- Approvals: Configured for country-specific agency requirements.
Quick Installation Notes
- Set the probe tip 1.0 mm (40 mils) from the target shaft.
- Tighten by hand. Do not exceed 0.56 N•m (5 in•lb).
- Ensure the target area is clean, flat, and larger than 13 mm diameter.
- Use proper shielded cable for field wiring up to 305 meters.
Expert FAQs & Buying Guidance
What is the benefit of the armored version?
The stainless steel armor protects the probe cable from abrasion, cuts, and crush damage. This is essential in areas with moving parts or where cables may be accidentally hit.
Does the “CN” option mean it’s approved for use in China?
Yes, the “-CN” suffix indicates this unit is built to meet specific certification requirements for certain countries, including China. Please confirm your local standards.
How does temperature affect the probe’s performance?
The probe works from -52°C to +177°C. For hazardous areas, its temperature class (T-code) limits the surface temperature. Choose the correct class for your safety zone.
Can I cut or splice the probe cable if it’s too long?
Never cut or splice the integral probe cable. Use appropriate extension cables to reach the required length. This protects the calibration and seal.
What is your shipping and warranty policy?
We ship worldwide via FedEx, UPS, or DHL. Every probe is new and comes with a 12-month factory warranty. Contact us for a fast quote.
Ready to Order or Have Questions?
Ensure you have the correct part number: 330909-00-20-10-02-CN. For pricing, stock checks, or technical support, our team is ready to help.
