Professional-Grade Vibration & Position Sensing

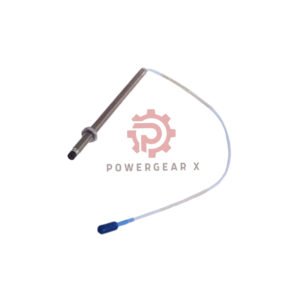

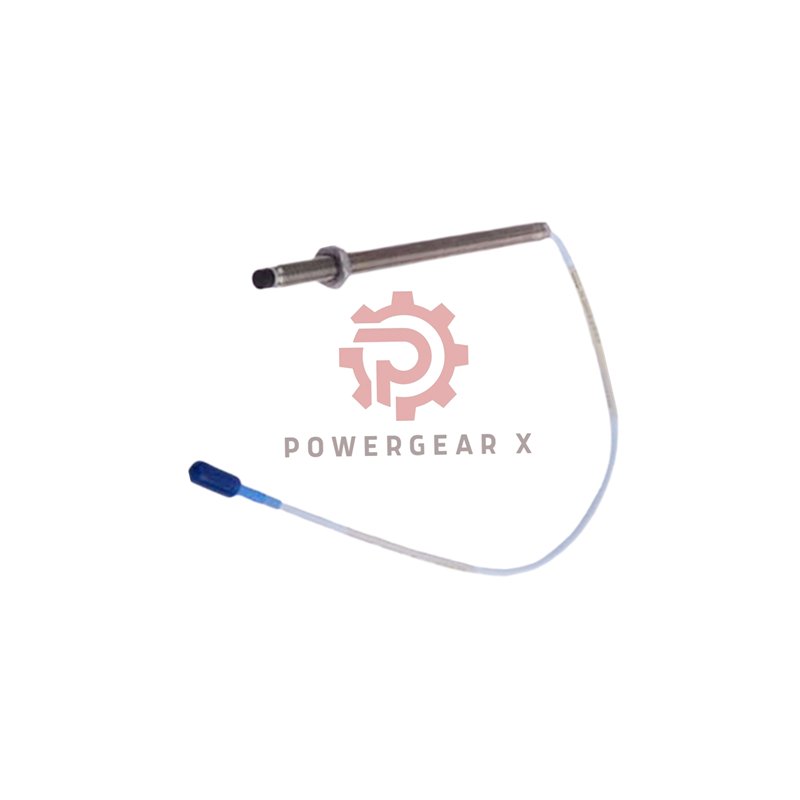

The Bently Nevada 330903-17-19-05-02-00 is a high-performance NSv probe. It offers superior chemical resistance and stability. Perfect for demanding applications like process compressors. This probe ensures reliable machinery health monitoring.
Key Performance Features
- Enhanced Chemical Resistance: Ideal for harsh process environments where other probes may fail.
- Excellent Linearity: Provides a wide 1.5 mm (60 mil) linear range for accurate measurement.
- Stable Output: High 7.87 V/mm (200 mV/mil) scale factor ensures strong, clear signals.
- Broad Compatibility: Electrically interchangeable with legacy 3300 RAM probes for easy upgrades.
- Rugged Design: 304 Stainless Steel case and PPS tip withstand tough operating conditions.
Complete Technical Data
- Full Part Number: 330903-17-19-05-02-00
- Brand & Model: Bently Nevada 3300 NSv Proximity Probe
- Mechanical Specs:
- Thread: M8 x 1
- Unthreaded Length: 170 mm
- Overall Case Length: 190 mm
- Total Cable Length: 0.5 meter (20 inches)
- Electrical Performance:
- Probe Resistance (RPROBE): 4.0 Ω ± 0.5 Ω
- Linear Range: 0.25 to 1.75 mm (10 to 70 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ± tolerance
- Non-Linearity (DSL): < ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Cable & Connection:
- Connector: Miniature Coaxial ClickLoc
- Cable Type: 75 Ω Coaxial, FEP Insulated
- Field Wiring: Up to 305 m (1000 ft) of shielded triad cable supported.
- Environmental Ratings:
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Storage Temperature: -52°C to +177°C
- Minimum Target Size: 13 mm (0.5 in) diameter recommended
- Physical & Installation:
- Case Torque (Recommended): 5.1 N•m (45 in•lb)
- Maximum Torque: 7.3 N•m (65 in•lb)
- Minimum Bend Radius: 25.4 mm (1.0 in)
What’s in the Box?
- One (1) Bently Nevada 3300 NSv Proximity Probe
- Factory packaging and documentation
- Probe is new, original, and includes a 12-month factory warranty
Expert Guidance & FAQs
What does “NSv” mean and why is it better?
NSv stands for “**N**ew **S**ensor **v**ersion.” It has improved chemical resistance over the older RAM probe. This makes it more reliable in applications with oil mist or process gases.
Can I use this to replace my old 3300 RAM probe directly?
Yes. The 330903-17-19-05-02-00 probe is mechanically and electrically interchangeable with the 3300 RAM probe. It is a direct upgrade.
What is the best way to set the gap?
Always aim for the 1.0 mm (40 mil) recommended gap. This centers the measurement in the probe’s linear range for best accuracy.
From field experience, what causes the most signal issues?
Using unshielded or incorrect field wiring. Always use a three-conductor shielded triad cable. Keep cable runs tidy and away from power lines to avoid noise.
How do I order and what are the terms?
Order the 330903-17-19-05-02-00 with confidence. It comes with a 12-month warranty. We ship worldwide via FedEx, UPS, and DHL. Contact sales@powergearx.com or WhatsApp +86 18030005825 for quotes and technical support.
Ideal Application Areas
- Process Gas & Centrifugal Compressors
- Steam & Gas Turbines
- High-Speed Pumps and Motors
- Any application requiring robust, chemical-resistant vibration monitoring.
Upgrade Your Monitoring System Today
For pricing, stock checks, or configuration help for the 330903-17-19-05-02-00, contact us.
