Compact & Durable Vibration Sensor for Tough Environments

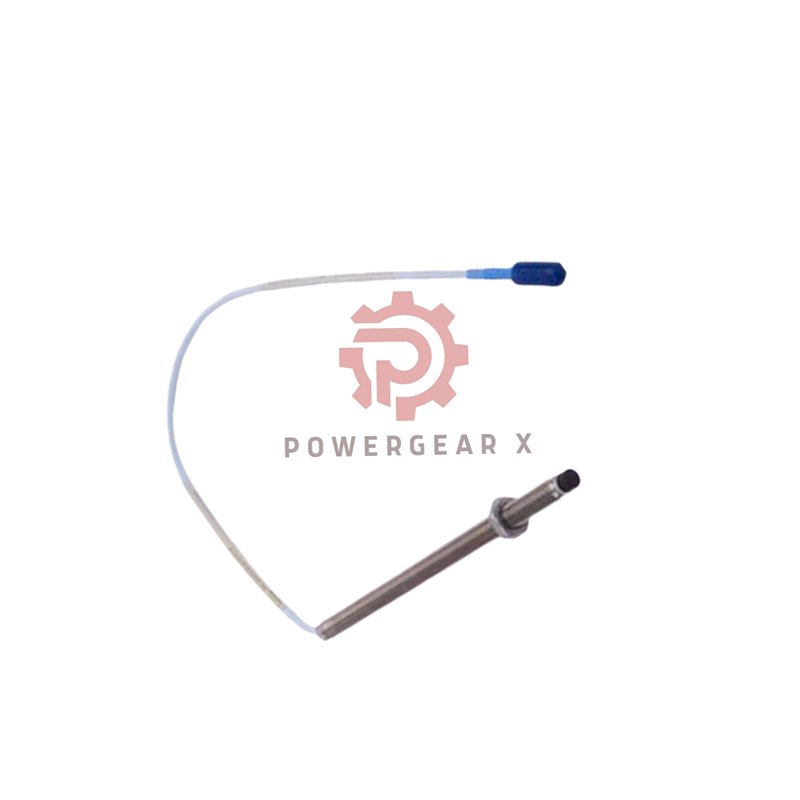

The Bently Nevada 330903-00-11-05-02-05 is a robust 3300 NSv Proximity Probe. It features a 0.5-meter cable and a 110mm overall case. This sensor is engineered for precise measurement in space-limited installations.
It provides excellent chemical resistance and stable signal output. Ideal for critical monitoring on compressors, turbines, and high-speed machinery.
Complete Technical Specifications
- Manufacturer: Bently Nevada
- Exact Part Number: 330903-00-11-05-02-05
- Product Line: 3300 NSv Proximity Probes
- Mounting Thread: M8 x 1.0 mm
- Case Configuration: 0 mm unthreaded, 110 mm total length
- Integrated Cable: 0.5 meter (20 inches)
- Quick Connector: Miniature Coaxial ClickLoc
- Safety Certifications: Multiple International Approvals
- Electrical Characteristic: Probe DC Resistance: 4.0 Ω ± 0.5 Ω
- Effective Measurement Span: Linear Range: 1.5 mm (60 mils)
- Optimal Installation Gap: 1.0 mm (40 mils) from target surface
- Output Sensitivity: 7.87 Volts/mm (200 mV/mil)
- Signal Accuracy: Linearity Error < ±0.06 mm (±2.3 mils)
- Dynamic Response: 0 to 10 kHz (±3 dB) with long field wiring
- Detection Resolution: Capable of micron-level vibration detection
- Extreme Temperature Rating: -52°C to +177°C (-62°F to +351°F)
- Environmental Ruggedness: High chemical resistance, hazardous area rated
- Noise Immunity: Shielded coaxial design for reliable operation in EMI environments
- Tip Construction: Chemical-resistant Polyphenylene Sulfide (PPS)
- Body Material: Durable AISI 304 Stainless Steel
- Cable Specification: 75 Ω Coaxial with FEP insulation
- Installation Force: Finger tight, maximum 0.56 N•m (5 in-lb)
- Cable Handling: Minimum bend radius: 25.4 mm (1.0 inch)
- Backward Compatibility: Direct replacement for older 3300 RAM probes
- Quality Assurance: New, Original, Factory Packed
- Customer Guarantee: 12-Month Manufacturer Warranty
Quick Start Installation
Install the probe into an M8x1 threaded hole. Set the initial air gap to 1.0 mm using a gauge. Connect the ClickLoc connector until it clicks. Keep field wiring under 305 meters for best performance.
Advanced Diagnostics & Key Uses
This probe accurately detects:
- Shaft radial vibration and orbit
- Thrust position and axial movement
- Early bearing wear and instability
- Rotor-stator clearance variations
Ideal For: Process gas compressors, steam turbines, expanders, high-pressure pumps, and other critical assets in oil & gas, petrochemical, and power generation plants.
Compliance & Delivery Details
- Certified for hazardous locations (EPL Ga/Gc/Dc per ATEX/IECEx)
- Multiple temperature classifications (T1 through T5)
- What’s in the Box: 1 x 3300 NSv Probe with pre-attached cable.
- Global Logistics: Fast shipping available via FedEx, UPS, and DHL.
Professional FAQs
Why choose the 0.5-meter cable length?
The shorter 0.5m (20″) cable is perfect for compact control panels or when the monitoring module is mounted very close to the sensor. It reduces cable clutter and loop management.
What does “110 mm Overall Case Length” mean for installation?
It is the total physical length of the probe’s metal body. This dimension helps you verify it will fit into the prepared mounting hole or housing without interference.
How are orders processed and shipped?
Orders are processed quickly. We ship internationally using reliable express carriers: FedEx, UPS, and DHL. Tracking information is provided for all shipments.
What is covered under the 12-month warranty?
The warranty covers defects in materials and factory workmanship for one year from the purchase date, providing full peace of mind.
What’s a critical pre-installation check often missed?
Always measure the resistance of the new probe before installing it. A reading of approximately 4.0 ohms between the center pin and outer shell confirms the probe is electrically sound before you put it in a hard-to-reach location.
Can this probe be used for axial thrust measurement?
Yes, but ensure the target area is flat, perpendicular to the probe axis, and large enough (≥13mm diameter). For small shafts, a reduced gap may be necessary for accurate scaling.
How to Select This Model
Choose the 330903-00-11-05-02-05 when you need a standard M8 probe with a short 0.5m cable for local mounting. It is the go-to choice for upgrades, replacements, or new builds in chemical-resistant applications.
